1,000 l mobile tank trailer for tractor

Feature-Benefits :

Mobile tank with rear impact guard in compliance with the new French order which entered into effect on January 1st, 2020.

430_PRODUIT_COUR-P1.svg
> More details
Ideal for transporting water, this tank is versatile and robust.


This mobile tank comprises:
- a monoblock tank D 1.2 in polythene resin (identical characteristics as cylindrical monoblock tank D1.2 in the catalogue)
The tank has internal baffles that considerably improve road behaviour when not fully loaded and a 50/60 (2") female/male valve. Maintains the tank on the chassis via heavy duty straps and tensioners and by wedging the feet on the chassis.
- a public road approved galvanised chassis. Homologated by DREAL as a type S.R.E.A. (Agricultural Semi-trailer Equipment) vehicle.
Delivered with the necessary papers (in France: barré rouge) for obtaining the registration certificate.
Technical characteristics of the chassis:
- braked axle,
- wide wheelbase for good stability,
- rear impact guard in accordance with French order of 19/12/2016,
- rear lights aligned with chassis and protected by grilles.
Left rear light with standard registration plate support, socket and support for warning light (not supplied),
- chassis and side rails in 3 to 6 mm thick steel depending on model,
- push-pull hose connectors,
- rear mounted folding stabiliser stand supports,
- front two bar support with large reinforced armpits,
- tow bar welded on the 1,000 and 1,500 l models,
- removable tow bar, fixed by two rear fixing brackets and pin at the rear (from the 2,300 l model).
Tow bar equipment:
- 70 mm adjustable stand for 2,300 l and 3,100 l,
- 70 mm manual gear jack for 5,500 l and 6,400 l.

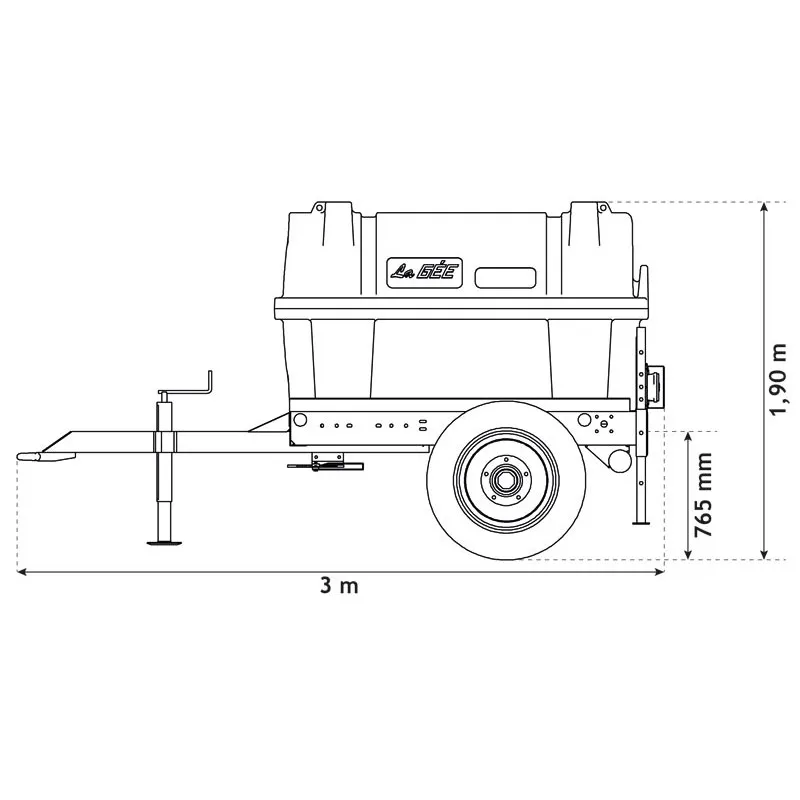

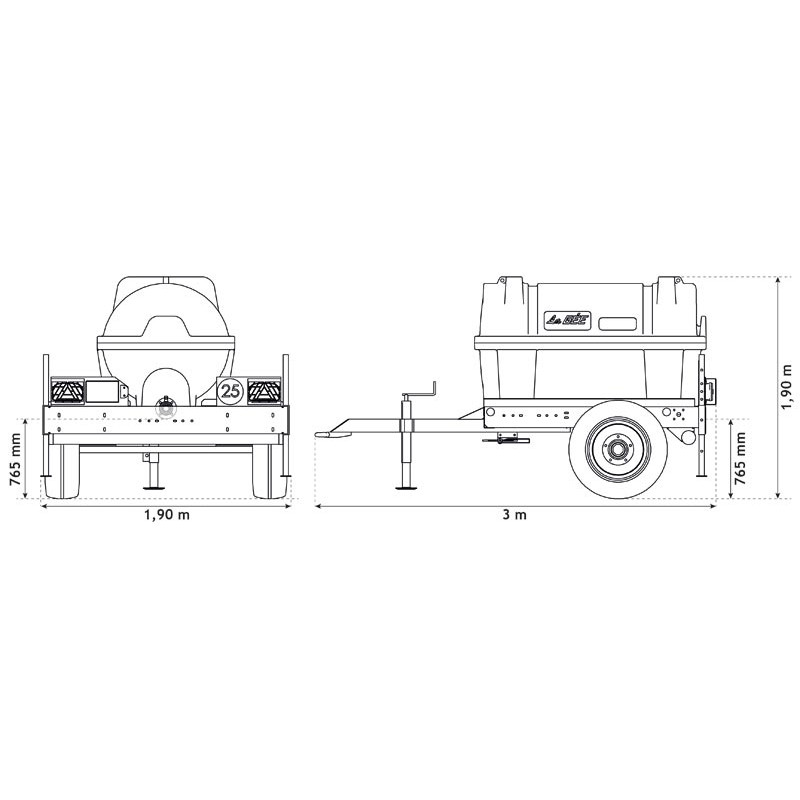

Length
3 m

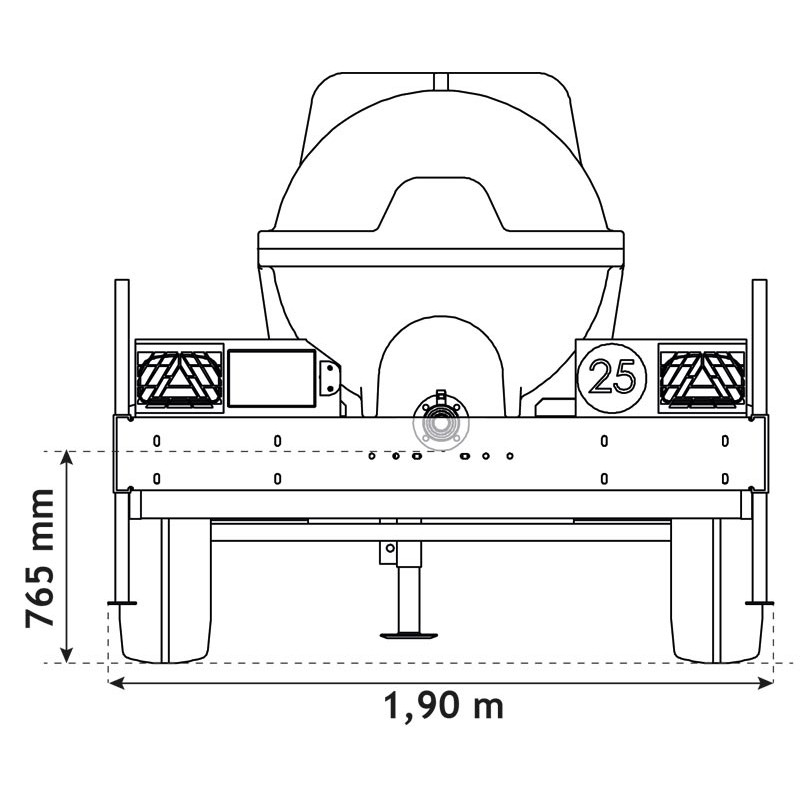

Width
1.90 m
Height
1.90 m
Use
on mobile chassis
Capacity
1,000 l
Axle
⧄ 60 mm
Shape
cylindrical
Chassis
galvanised
Density
1.2
Drum dia.
250 x 60 mm
Wheel(s)
11.5/80 x 15.3 14 Ply
Rims
6 holes
Stand
⧄ 70 mm
Side under the valve
765 mm
GVWR (gross vehicle weight rating)
2190 kg
Sales unit
Unit
