Feature-Benefits : Reliable, multi-purpose, and economical to avoid freezing.
Integrated cleaning system.
Patented opening system.

140_DEBIT_32_L-P1.svg 170_PRESSION_3_4_BARS-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

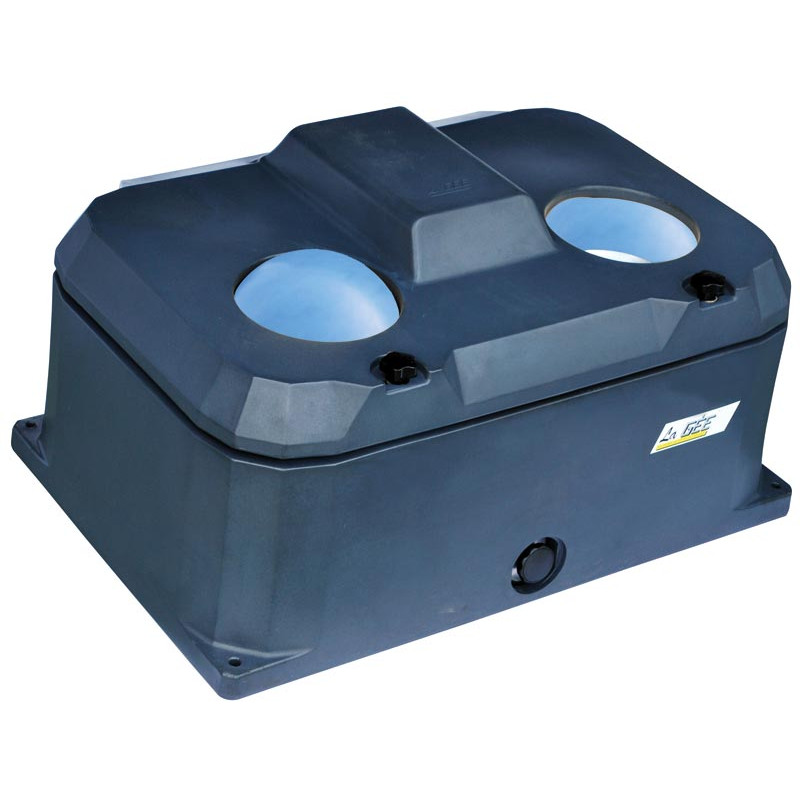

Large capacity isothermal drinker designed with a double-wall rotomoulded polyethylene trough insulated with polyurethane foam, an isothermal cover with double seal, and an insulated ball or bowl.
Fitted with:
1 constant level mechanism
- 1 integrated cleaning system (by water junction on a pipe linked to a brass body fitted with a selection valve)

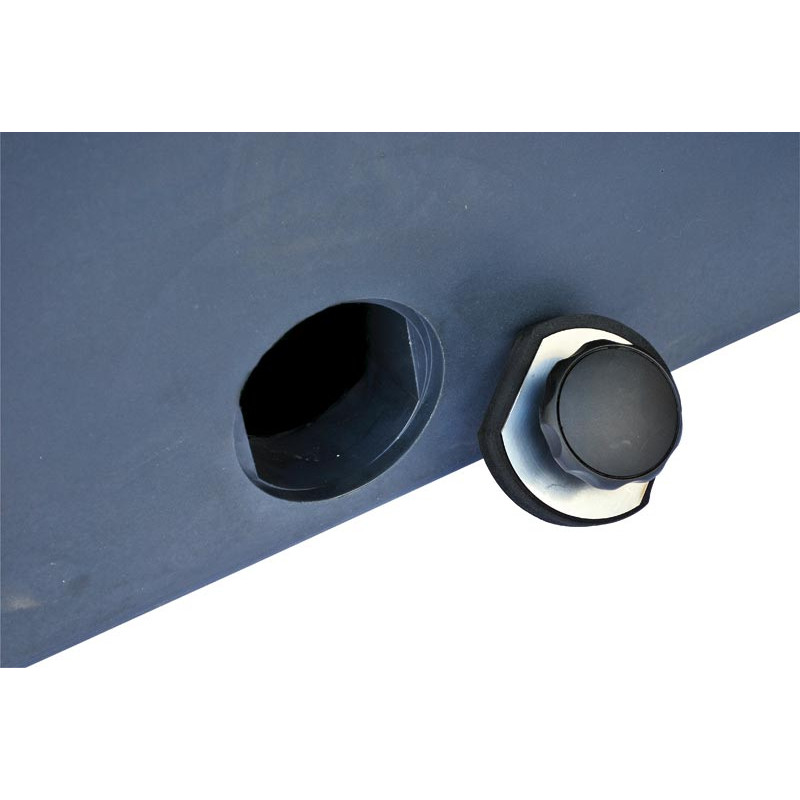

- 1 drain plug (Ø 90 mm).
It keeps the water at a positive temperature down to - 30°C by absorbing the natural calories in the soil and provides cool water in the event of high temperatures.
The patented opening system is based on the tenon-mortice principle at the rear and captive screws at the front.Water is connected directly under the trough pre-fitted with a hydraulic connection pipe or a stainless steel braided hose (large capacity version) protected by an insulating sleeve (included). The lid can be modified at any time by adding an option to convert a "ball" model to a "bowl" model and vice versa.
Polytherme ball drinkers are available in 1- or 2-ball versions. The balls float on the water in the trough regulated with a La Gée 32 l/mn constant level mechanism with 1/2" connection. When the animal presses the ball, it folds under the lid thanks to its specially designed shape. Once the animal has finished drinking, it returns to its place on its own and shuts off the water point making it isothermal.


Delivered with a ground seal and insulated sleeve to place around the supply pipe.
Material
rotomolded polyethylene resin

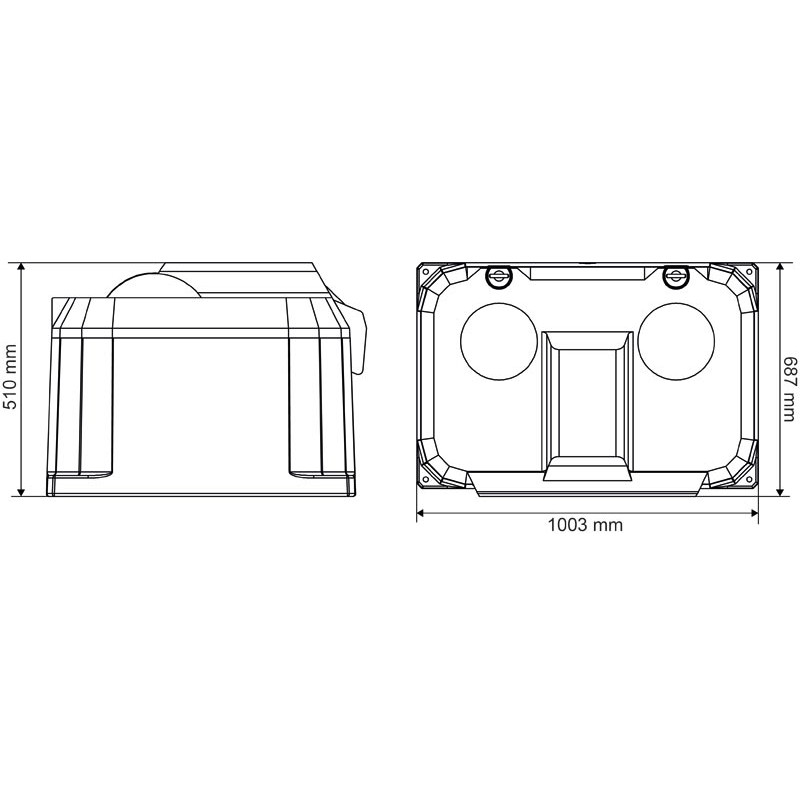

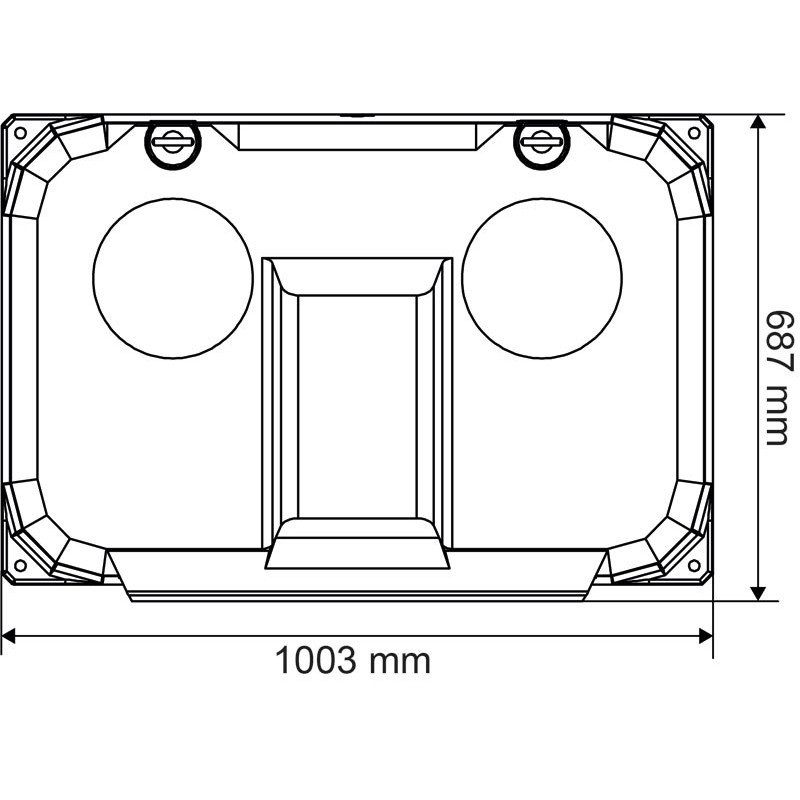

Length
1003 mm
Width
687 mm

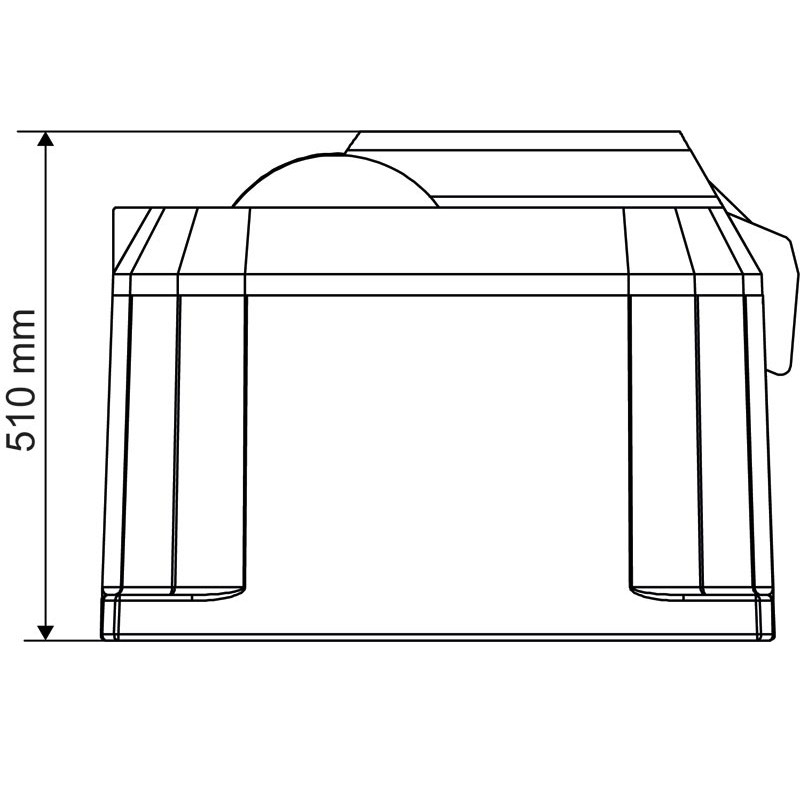

Height
510 mm
Capacity
75 l
Model
2 balls
Pressure
network
Drinker
Polytherme ball
System
constant level
Mechanism
float valve tap
Fastening
ground
Device
isotherm
Connection diameter
1/2" (15/21 mm) - female
Packaging
boxed
Flow rate
1 to 32 l/min
Sales unit
Unit
Float valve
Pressure network en polyamide blanc (P1138310)
