Feature-Benefits : Reliable and multi-purpose.
High quality.
Very high flow, factory fitted with three float valves.

090_DEBIT_15_L-P1.svg 170_PRESSION_3_4_BARS-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

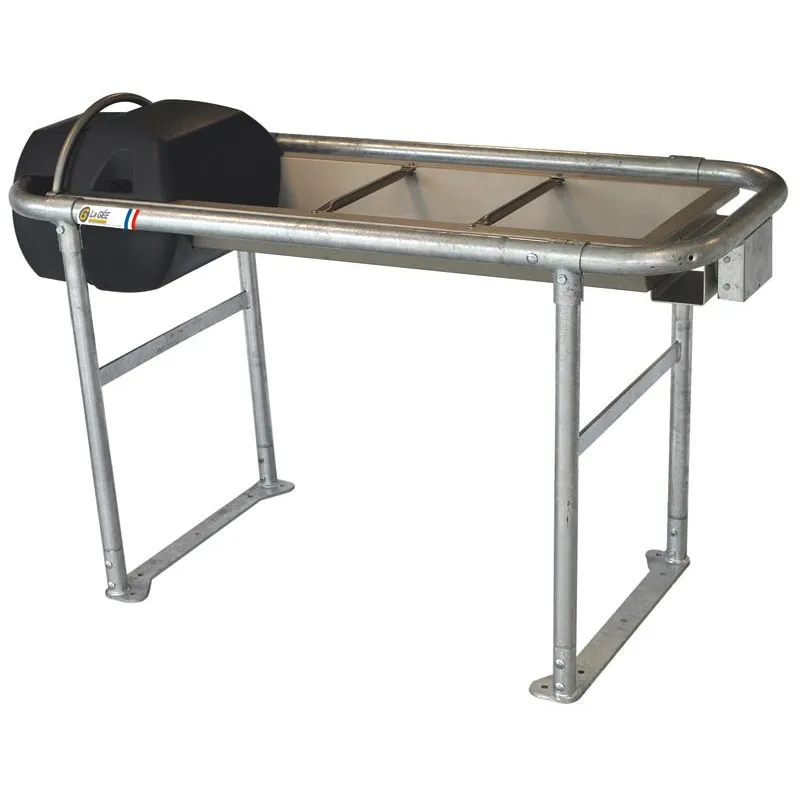

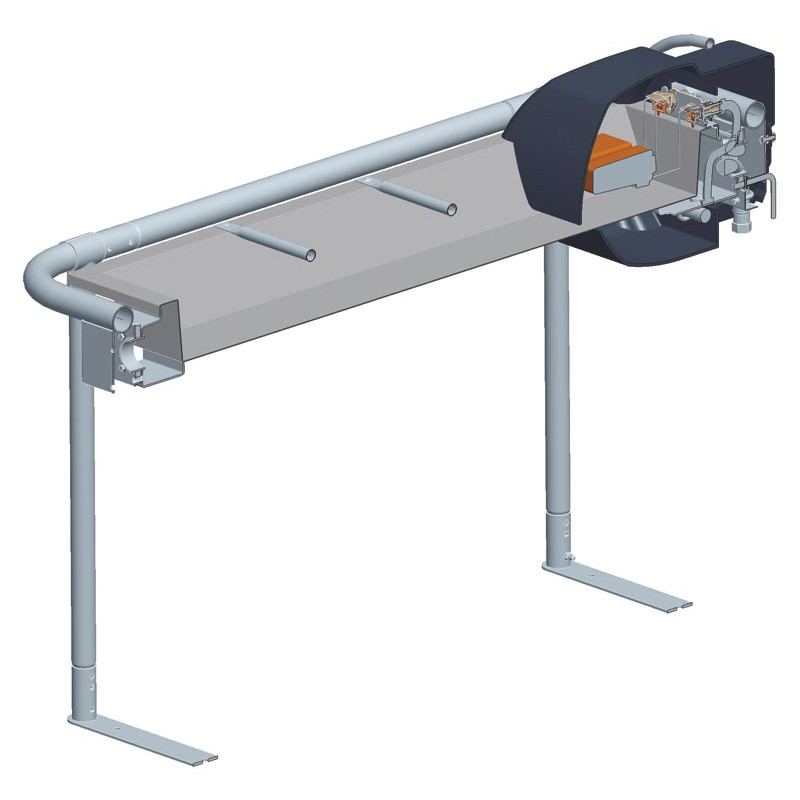

These tilting drinkers are designed with a shallow, narrow, and heavy-duty AISI 304 stainless steel sheet trough. A removable rotomoulded polyethylene housing protects the supply system fitted with three La Gée constant level float valves and the tilting mechanism. Easy to handle, a rounded handed allows you to accompany the tilting movement of the trough. The locking bolt is automatically indexed by quarter turn preventing inappropriate return of the trough. The wide tilting mechanism is fitted with 80 mm diameter Ertalon flanges for great comfort of use and long-term silence during handling.
Non-heating models can be fitted with a heating element as an option to convert them into a heating model, at any time.

The Polynox S is designed to be used on feet. Its structure is fitted with large mounting plates for fastening to the ground in order to prevent it from moving.


Option: 24 V 80 W heating polyresistance - 3 A (P1130780)

Material
stainless steel

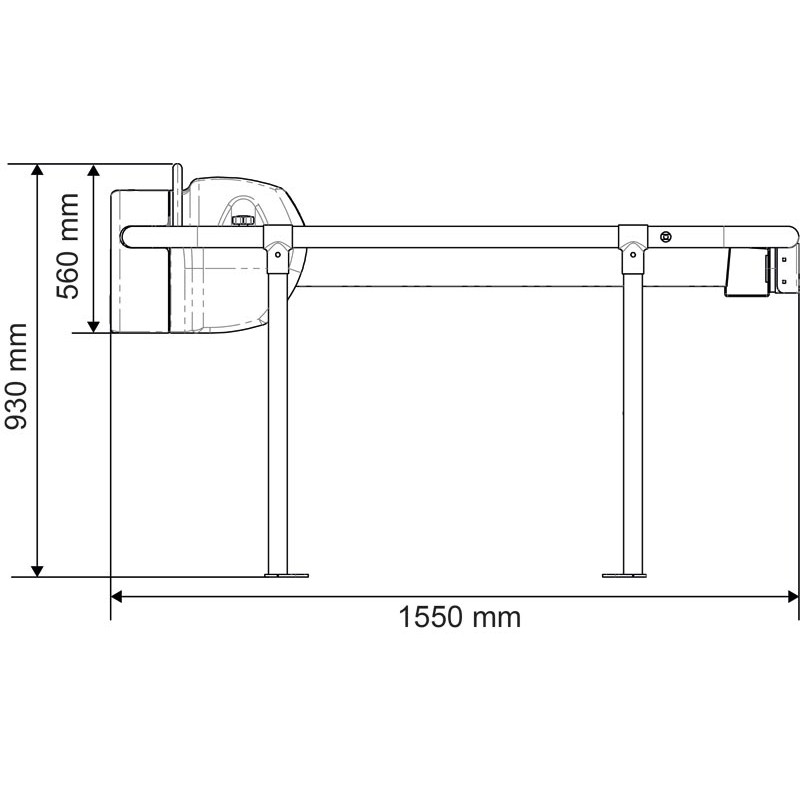

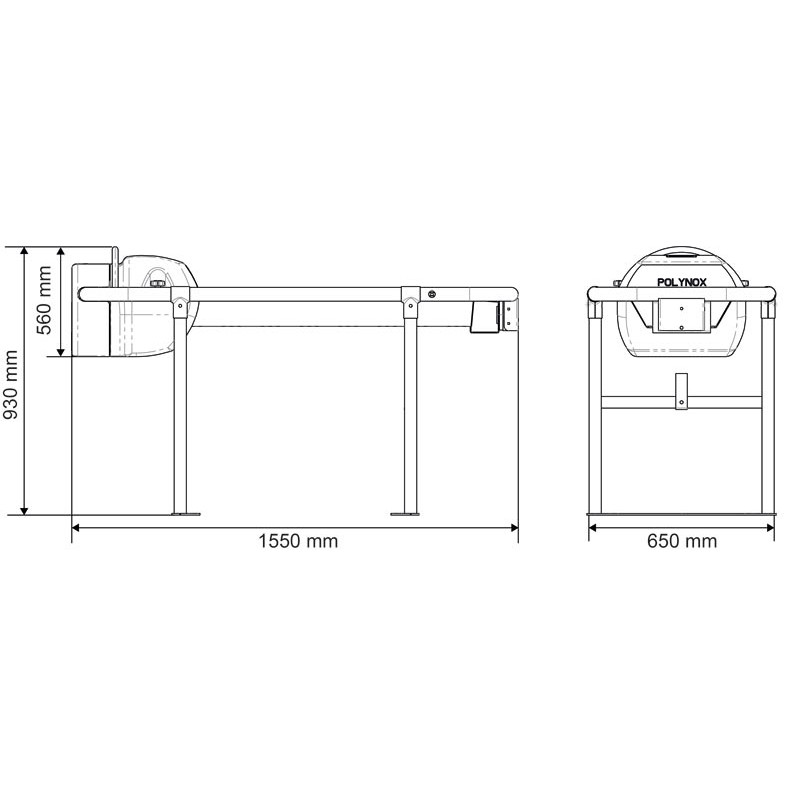

Length
1.55 m

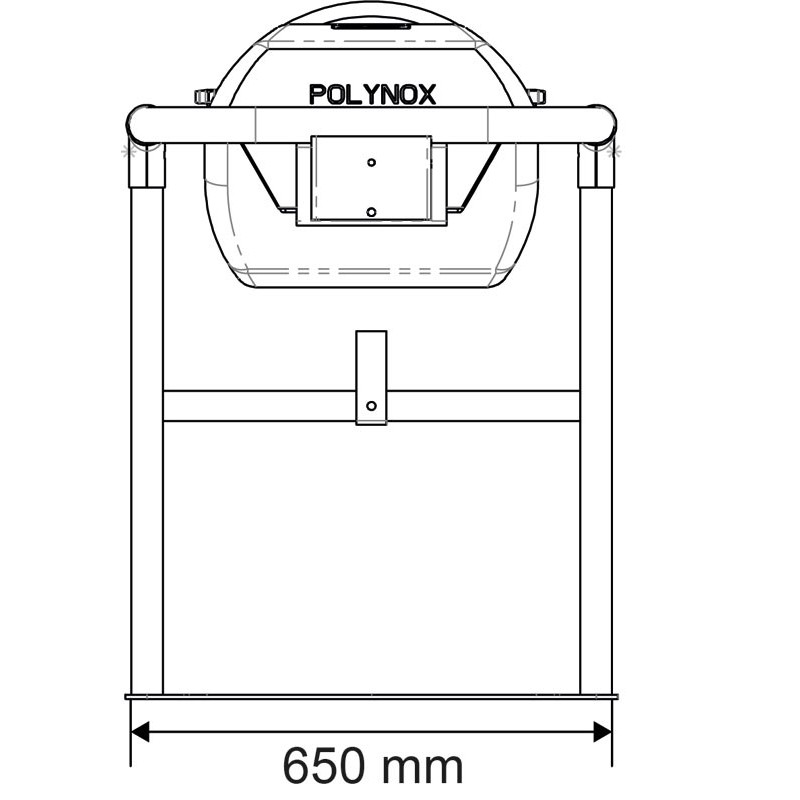

Width
0.65 m
Height
0.93 m
Capacity
28 l
Model
155
Pressure
network
Drinker
Non-heating tilting Polynox S
System
constant level
Mechanism
float valve tap
Fastening
ground
Device
non-heating
Connection diameter
1/2" (15/21 mm) - female
Packaging
No packaging
Flow rate
1 to 15 L/min
Sales unit
Unit
Float valve
pressure network en polyamide vert (P1138309)
