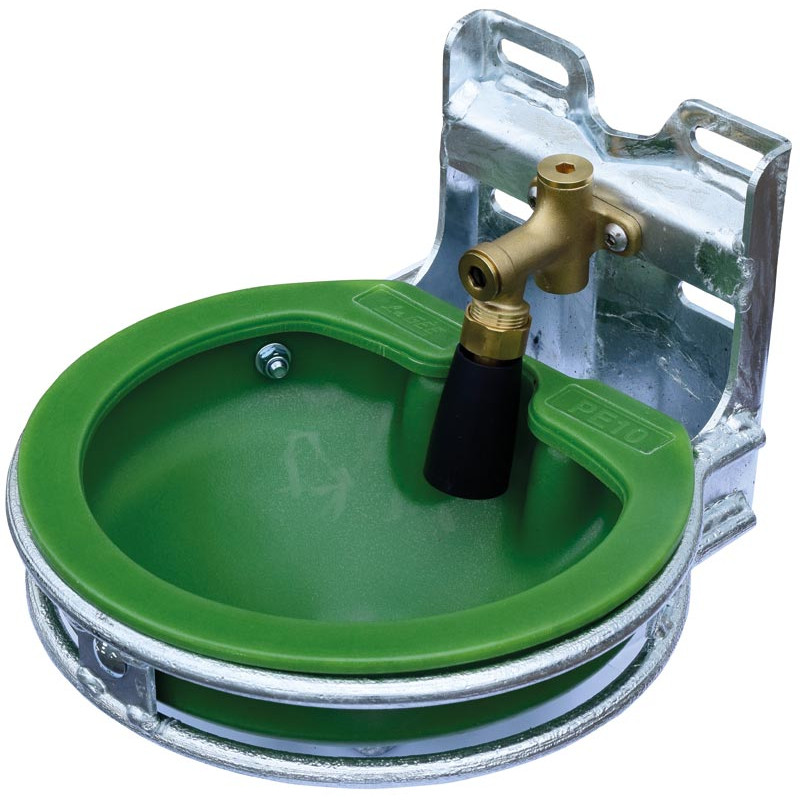

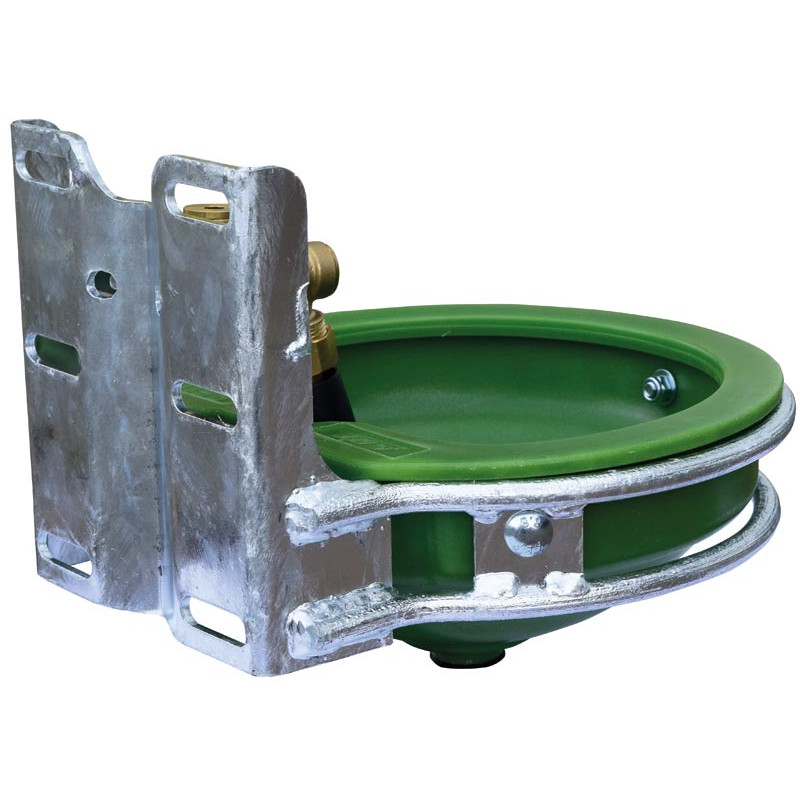

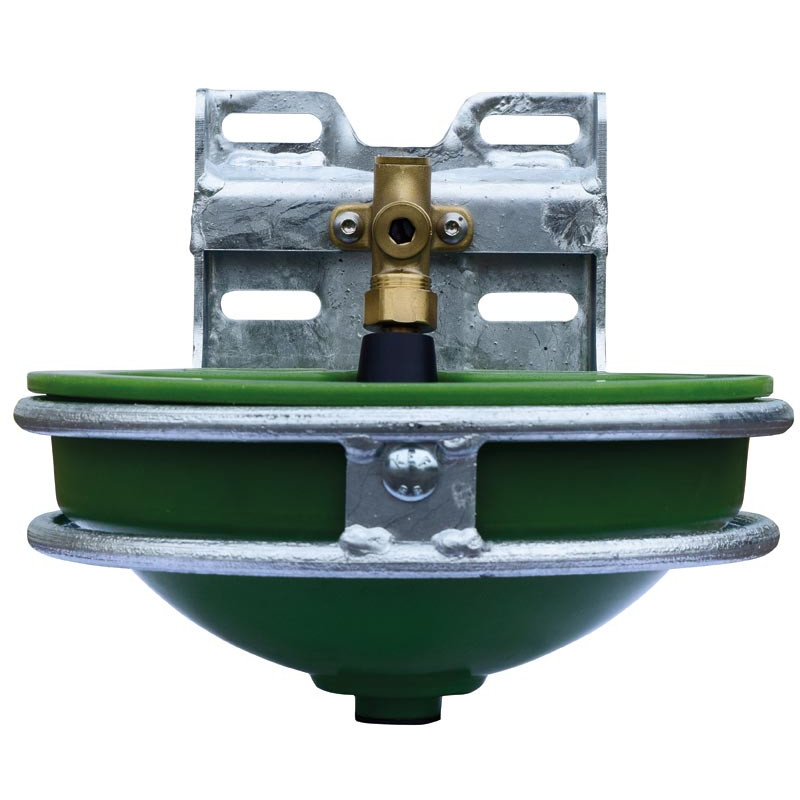

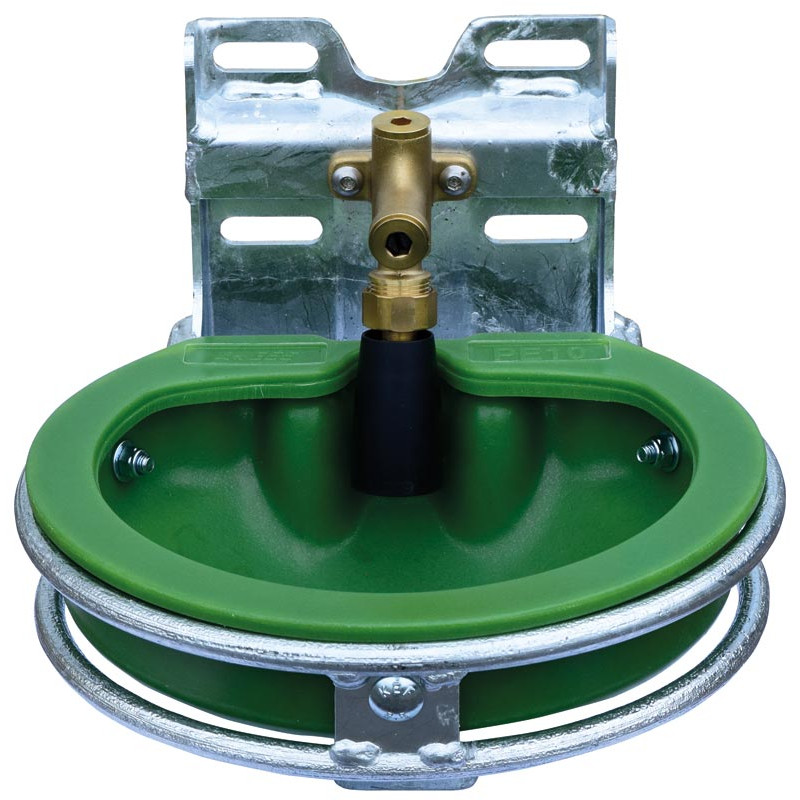

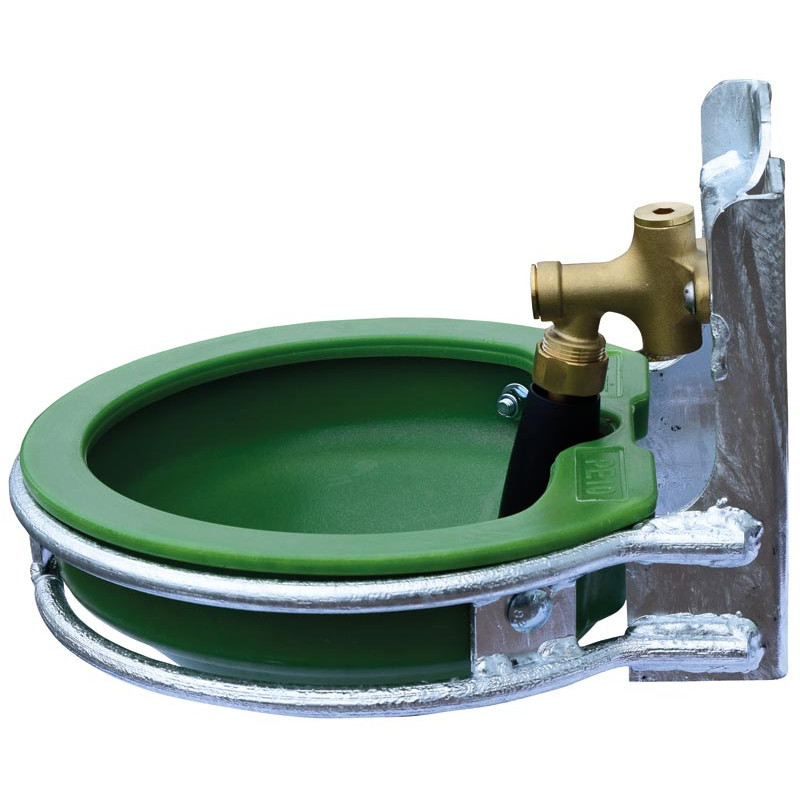

Single PE10 drinker
Feature-Benefits :
High 19 l/min flow rate.

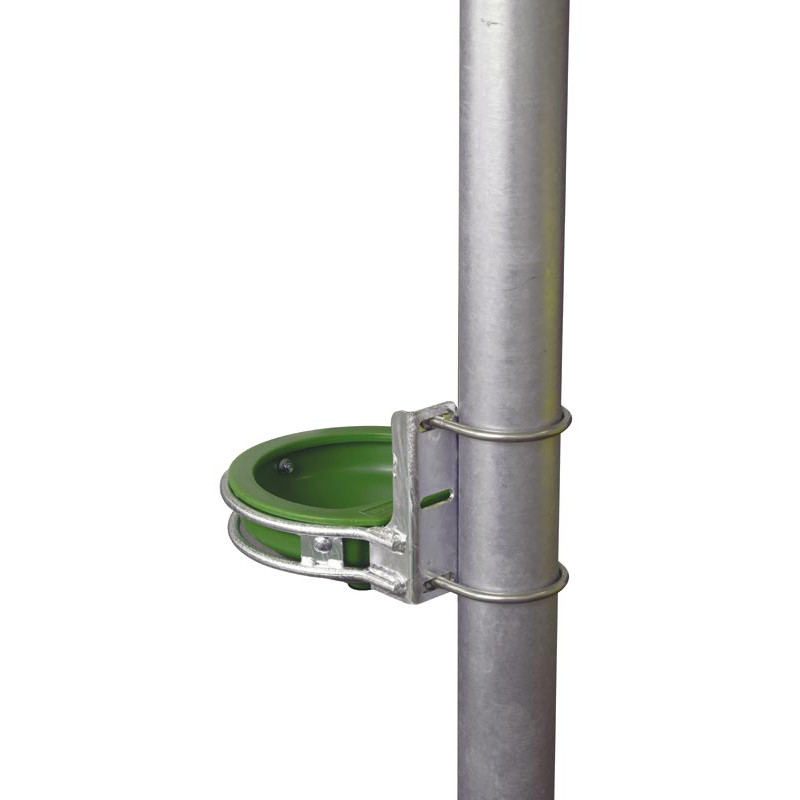

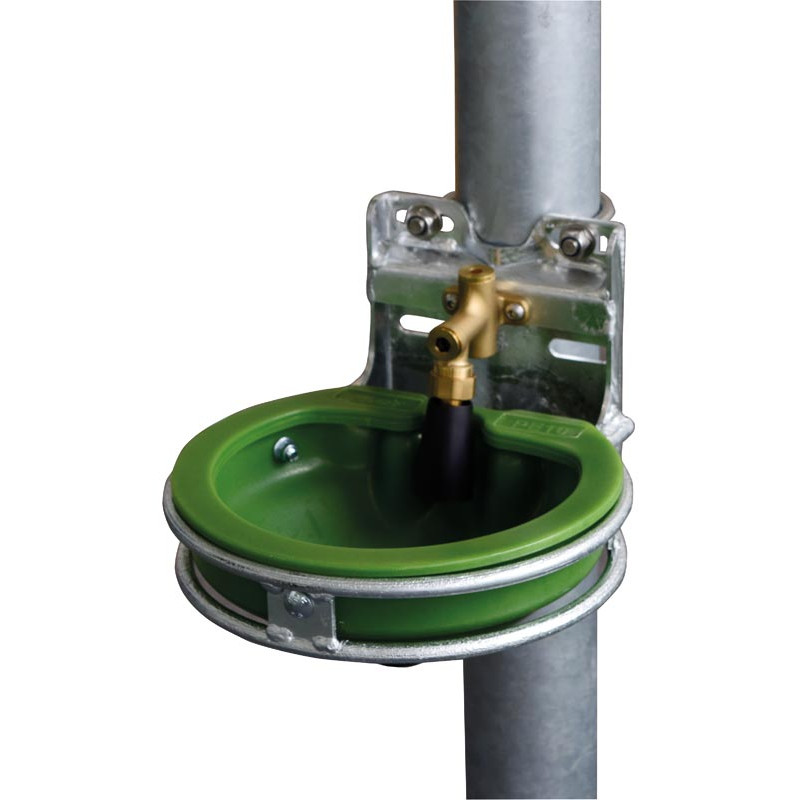

Can be fixed directly onto a metal post without requiring a specific flange.
Can be fixed directly onto a metal post without requiring a specific flange.
Rebord anti-lapage et anti-gaspillage.
Protection galva intégrée.
Facile à poser sur mur ou sur poteau dans une case.
Polyethylene resin bowl with anti-spill device.
Sturdy mounting plate and galvanised steel wire drinker protection.
Fitted with:
- 1 vertical pilot valve
- 1 valve plug
- 1 flexible drain plug (Ø 25 mm).
Top or bottom supply.
Adjustable flow.
Delivered without filter.
- Material
- rotomolded polyethylene resin

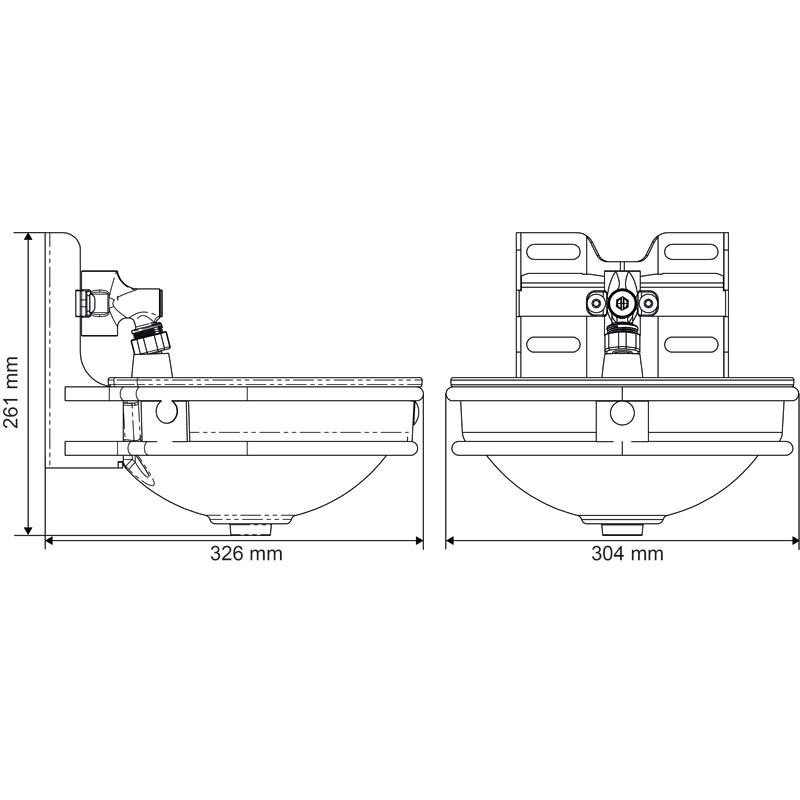

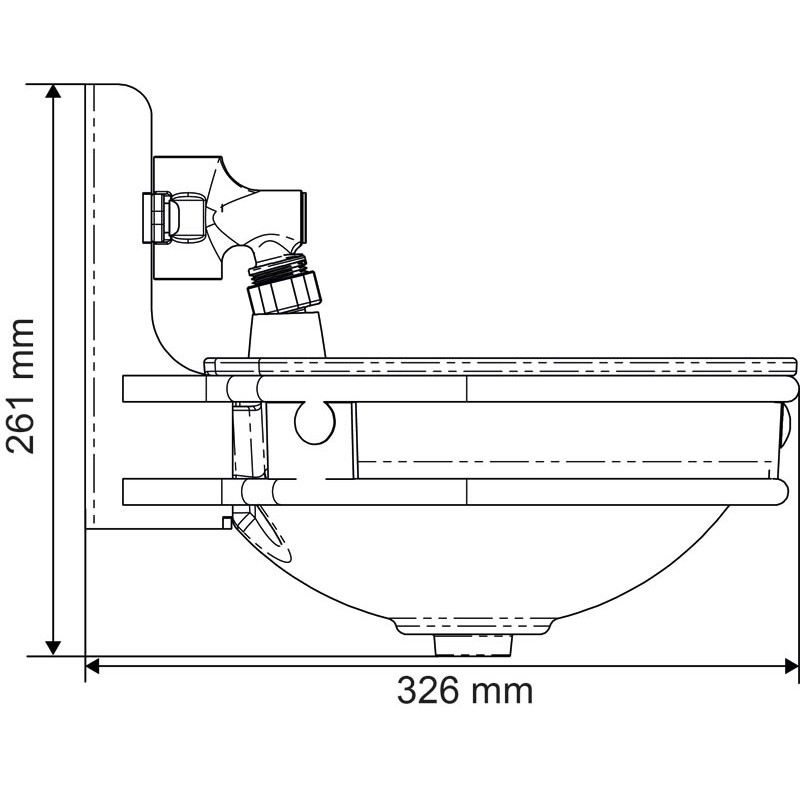

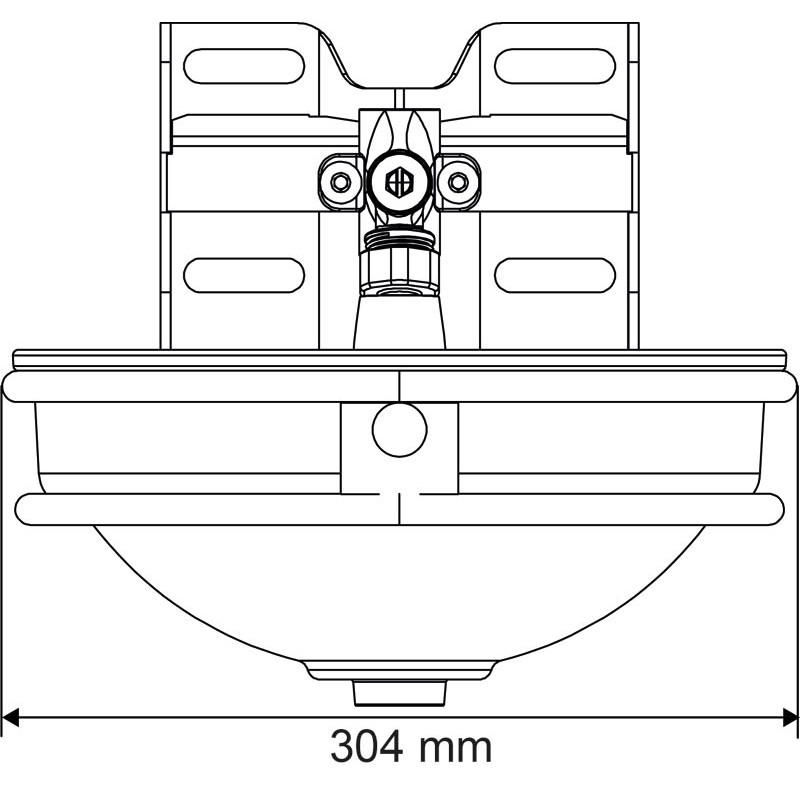

- Length
- 304 mm
- Width
- 331 mm
- Height
- 261 mm
- Pressure
- network
- Drinker
- Single PE10 drinker
- System
- push-type
- Mechanism
- vertical pilot valve
- Fastening
- wall
- Device
- heating optional
- Flowrate
- 1 à 19 l/min
- Connection diameter
- 3/4" (20/27 mm) - female
- Packaging
- bag
- Pusher
- tube
- Sales unit
- Unit
- Sales packaging unit
- Packaged in bags.
- Drain plug diameter
- 25 mm
