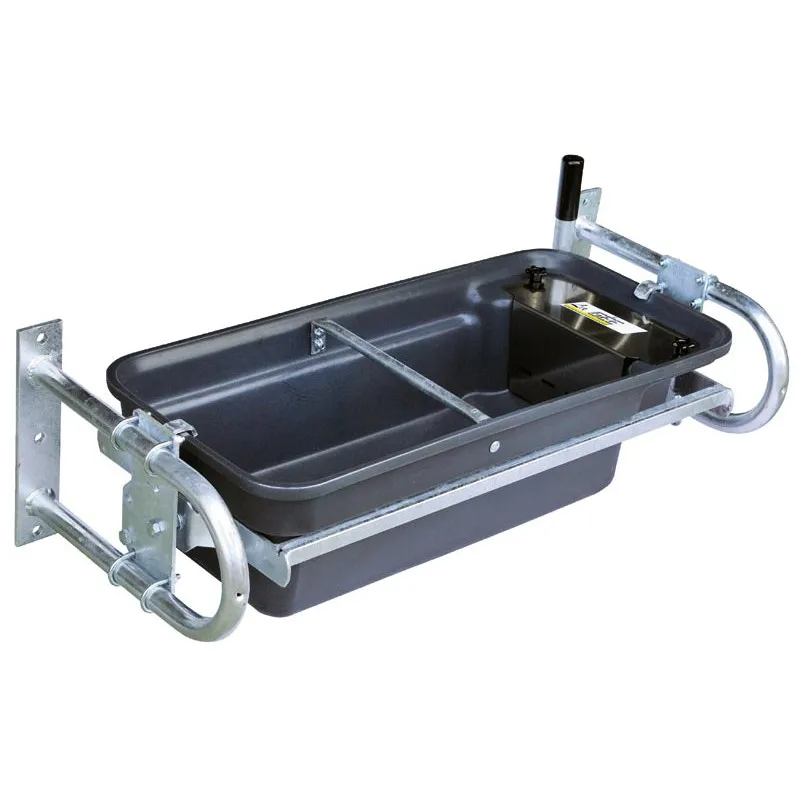

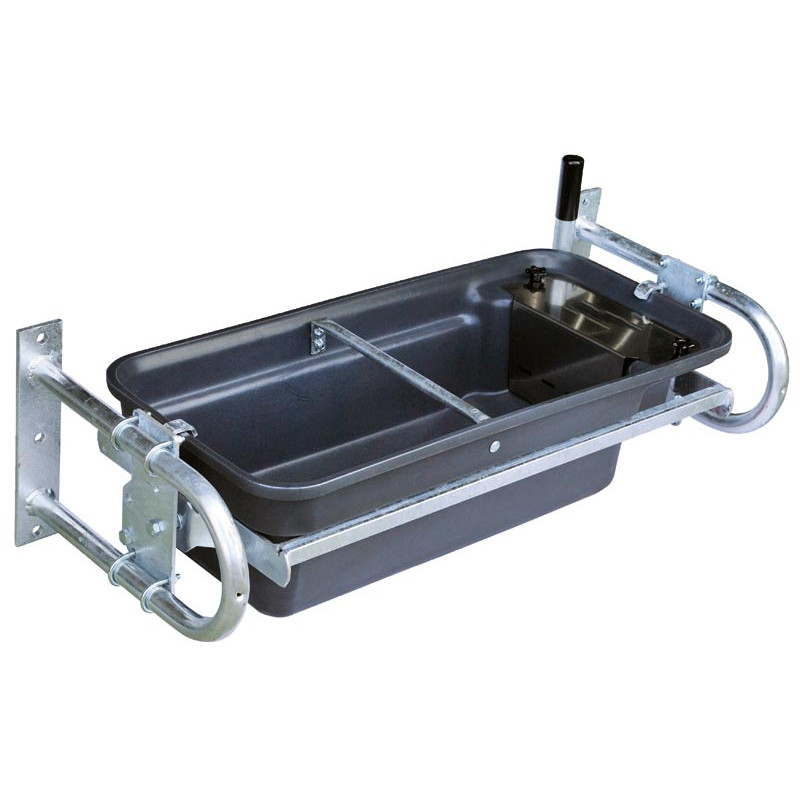

Double tilting POLYBAC 75 M strip rim
Made in corrosion-free rotomoulded polyethylene, these large capacity drinkers are fitted with the La Gée 32 l/mn constant level mechanism in 1/2" connection and a 33/42 through wall plug for quick cleaning and emptying. The mechanism is protected by a cast aluminium or stainless steel sheet housing. Wall trough supports are factory fitted with a water inlet on the wall side. Ideally operates on pressure range from 3 to 4 bars.
The tip-over Polybac M is available in two version: 30 M and 75 M. Designed with a wide bowl with a patented strip rim offering durability, facilitating cleaning, and increasing the water surface available.

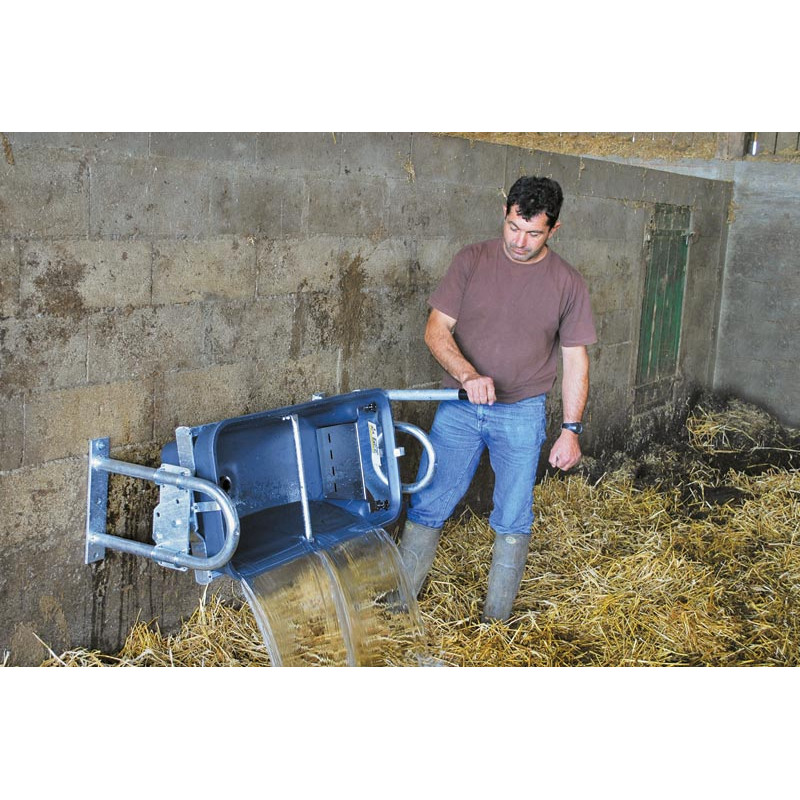

Fitted with a 1/2" stainless steel braided hose that can be connected to the network for easy connection. Can be wall-mounted thanks to its tilting galvanised steel support operated by the rear locking handle.
This drinker can be integrated into a tubular module drinker (option).
Delivered without fastening support. Option: support and tubular protection.
- Material
- rotomolded polyethylene resin

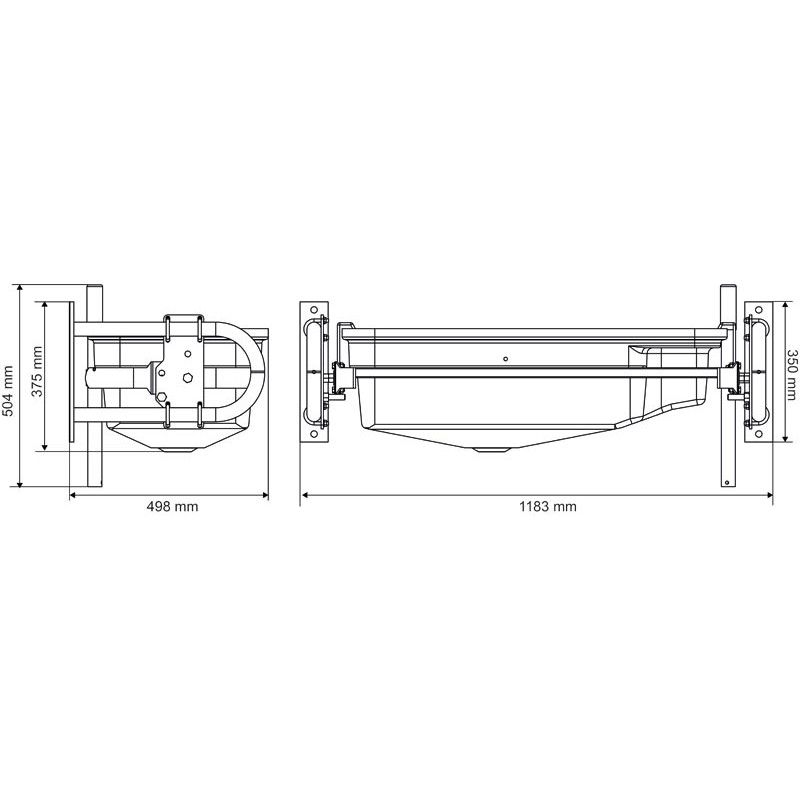

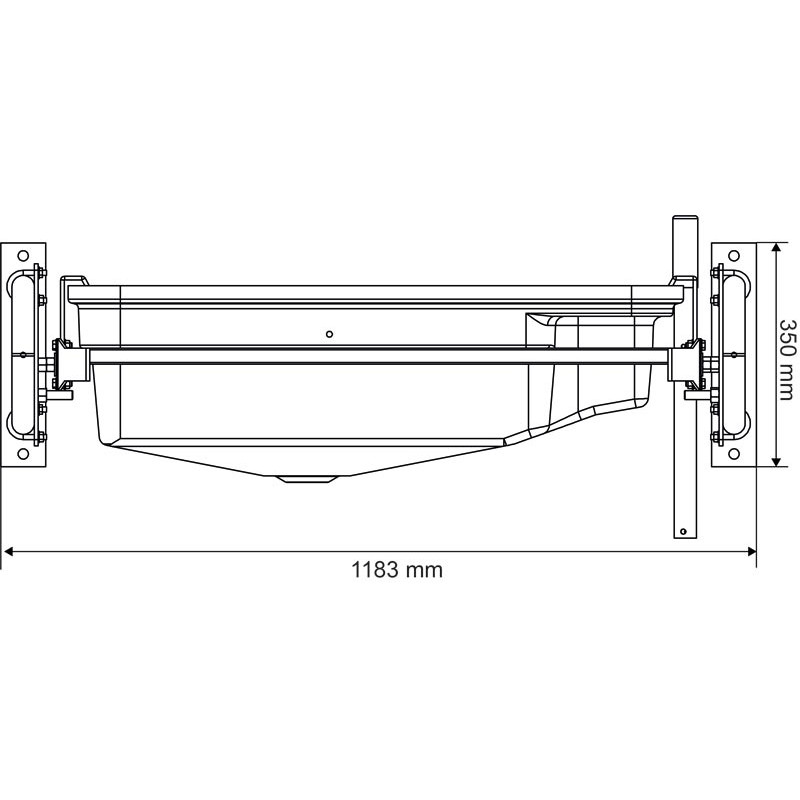

- Length
- 1183 mm

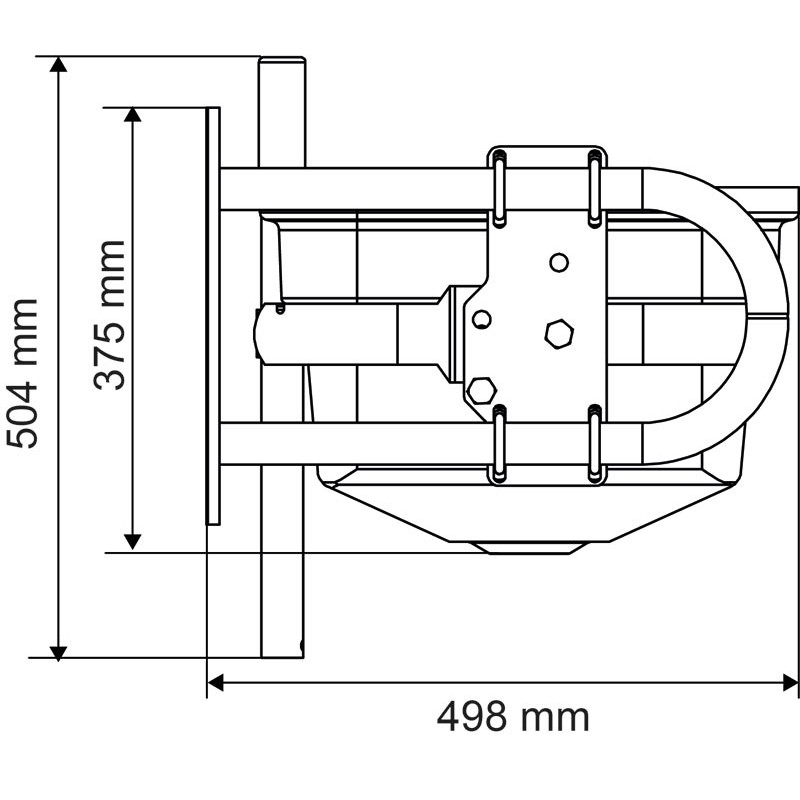

- Width
- 498 mm
- Height
- 504 mm
- Capacity
- 75 l
- Model
- 75 M
- Type
- strip rim
- Pressure
- network
- Drinker
- Polybac M Tilting
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- wall
- Device
- non-heating
- Connection diameter
- tresse inox 1/2" (15/21 mm) - male
- Packaging
- No packaging
- Flow rate
- 1 to 32 l/min
- Sales unit
- Unit
- Float valve
- Pressure network en polyamide blanc (P1138310)
