Feature-Benefits : POLYBAC M are simple and economical

Polyvalent et universel, bac à rebord intérieur anti-gaspillage.
Grande capacité pour l’abreuvement de troupeaux.

140_DEBIT_32_L-P1.svg 170_PRESSION_3_4_BARS-P1.svg 440_PRODUIT_MAG-P1.svg
> More details
For replacement or fastening in a concrete wall.

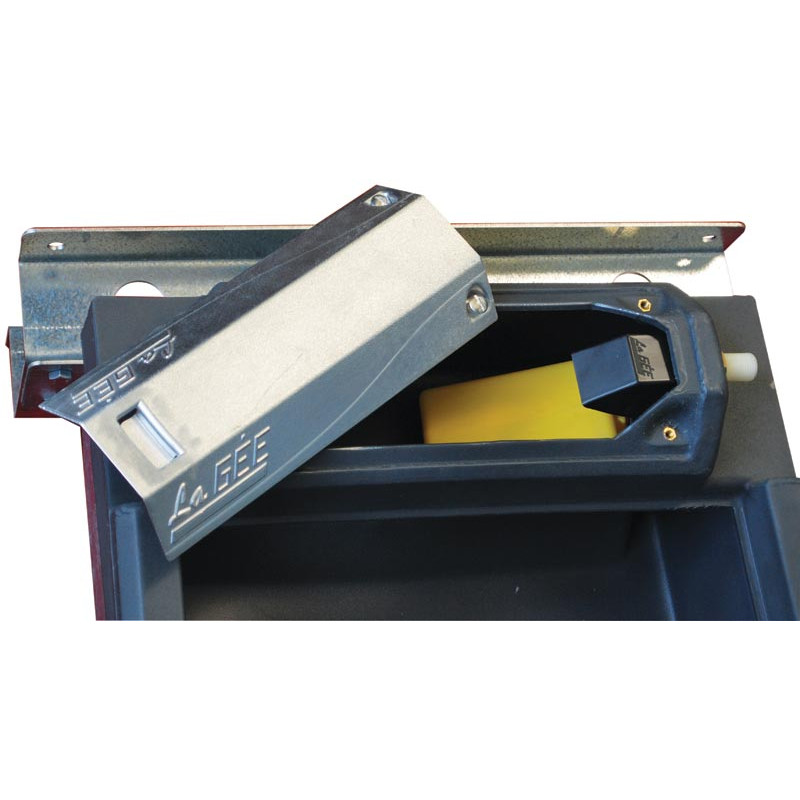

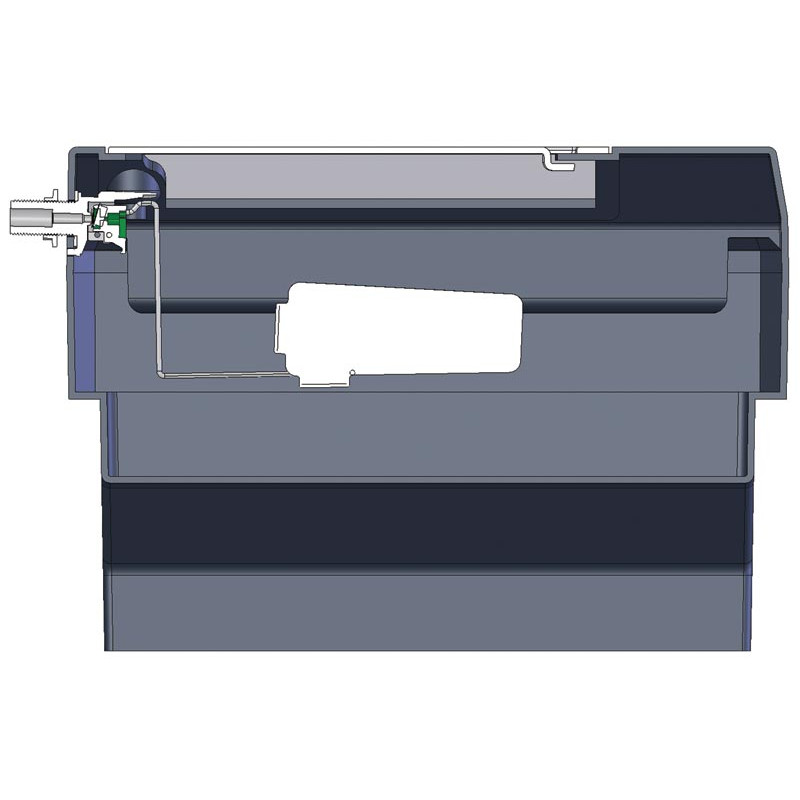

Made in corrosion-free rotomoulded polyethylene, these large capacity drinkers are fitted with the La Gée 32 l/mn constant level mechanism in 1/2" connection and a 33/42 through wall plug for quick cleaning and emptying. The mechanism is protected by a cast aluminium or stainless steel sheet housing. Wall trough supports are factory fitted with a water inlet on the wall side. Ideally operates on pressure range from 3 to 4 bars.
Designed with a wide heavy-duty bowl with an anti-spill interior rim.

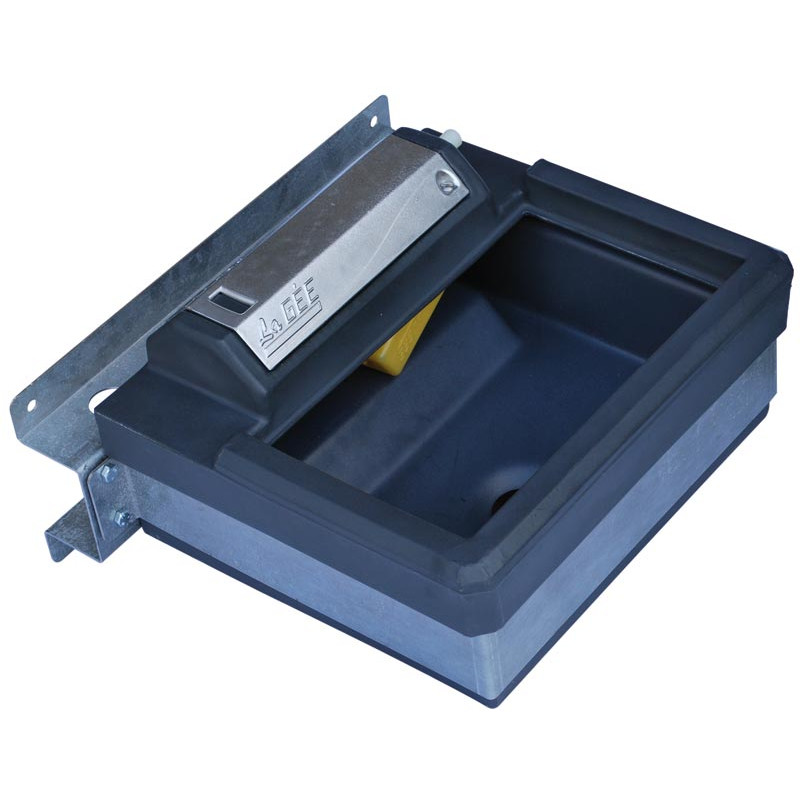

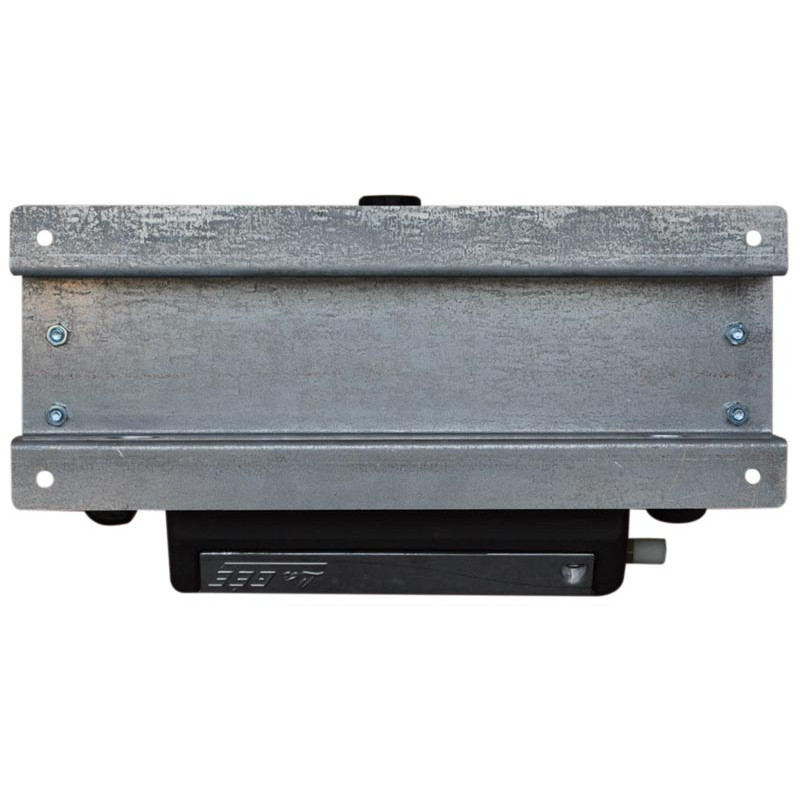

Can be wall-mounted using the galvanised steel fastening support.



Delivered without fastening support. Delivered without fastening support.

Material
rotomolded polyethylene resin

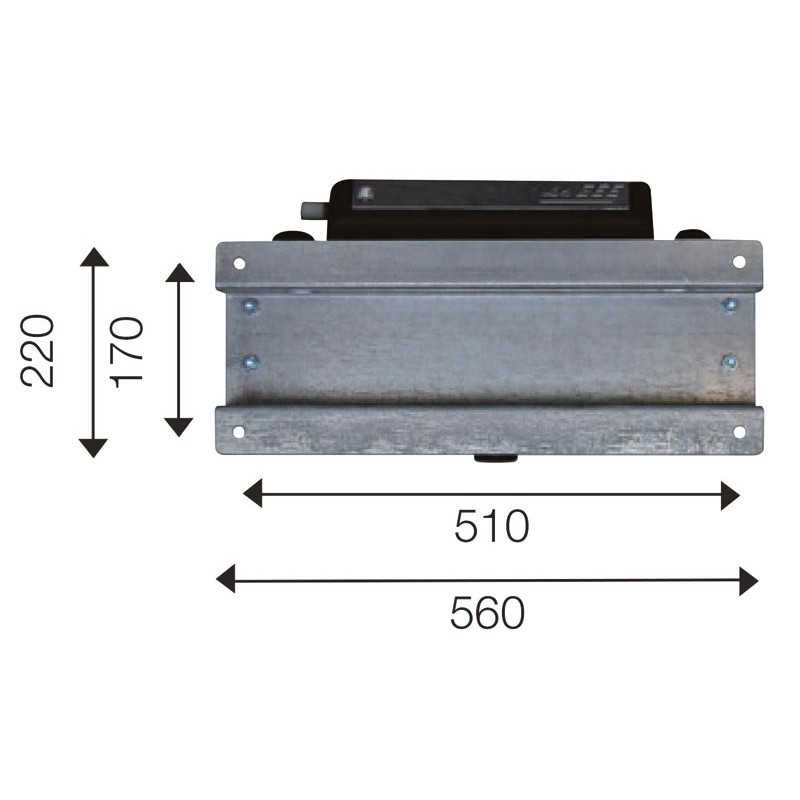

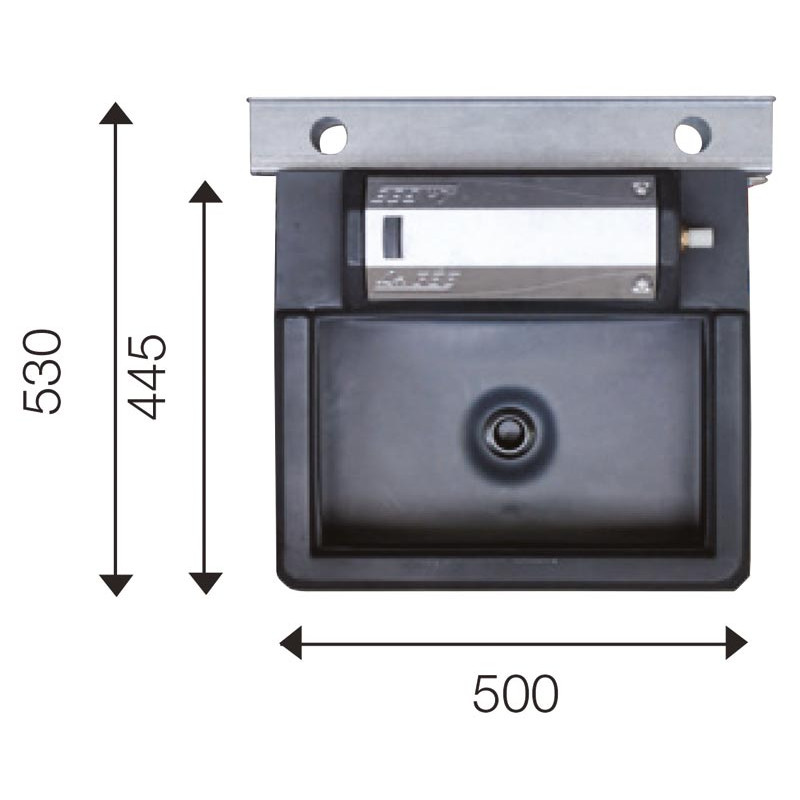

Length
560 mm
Width
530 mm
Height

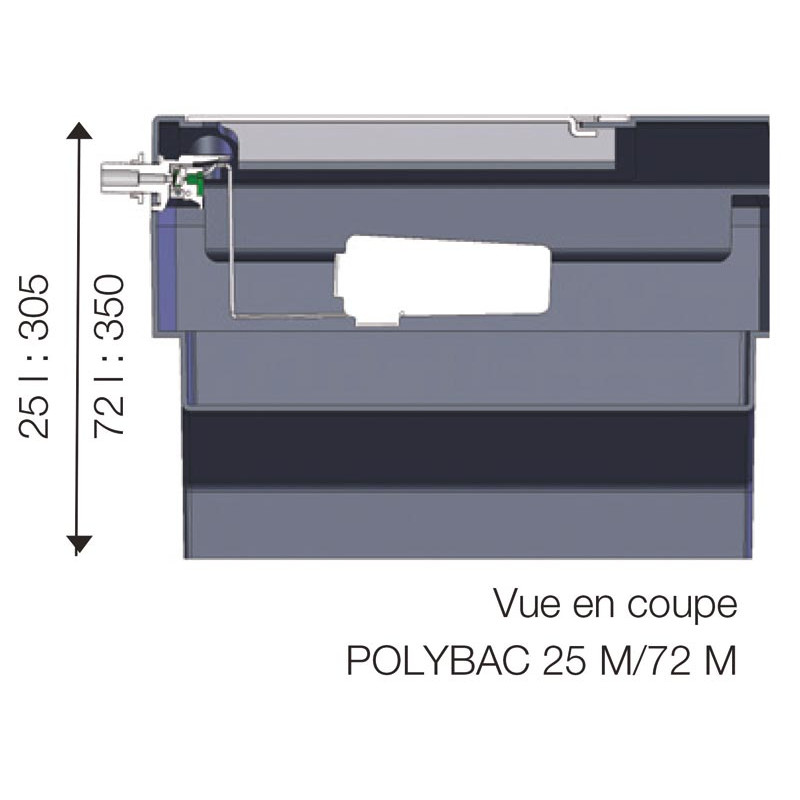

305 mm
Capacity
25 l
Model
25 M
Type
interior rim
Pressure
network
Drinker
Polybac M
System
constant level
Mechanism
float valve tap
Fastening
wall
Device
non-heating
Connection diameter
1/2" (15/21 mm) - male (25M en côté et 72M à l'arrière)
Packaging
Paddle
Flow rate
32 l/min
Sales unit
Unit
Float valve
Pressure network en polyamide blanc (P1138310)
