Feature-Benefits : Reinforced hygiene.
Easy to clean.

Hygiénique, inoxydable et performant avec son alimentation par le haut et le bas.
Facile à nettoyer et à poser sur mur ou sur poteau.

070_ALIMENTATION_VERTICALE-P1.svg 110_DEBIT_18_L-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

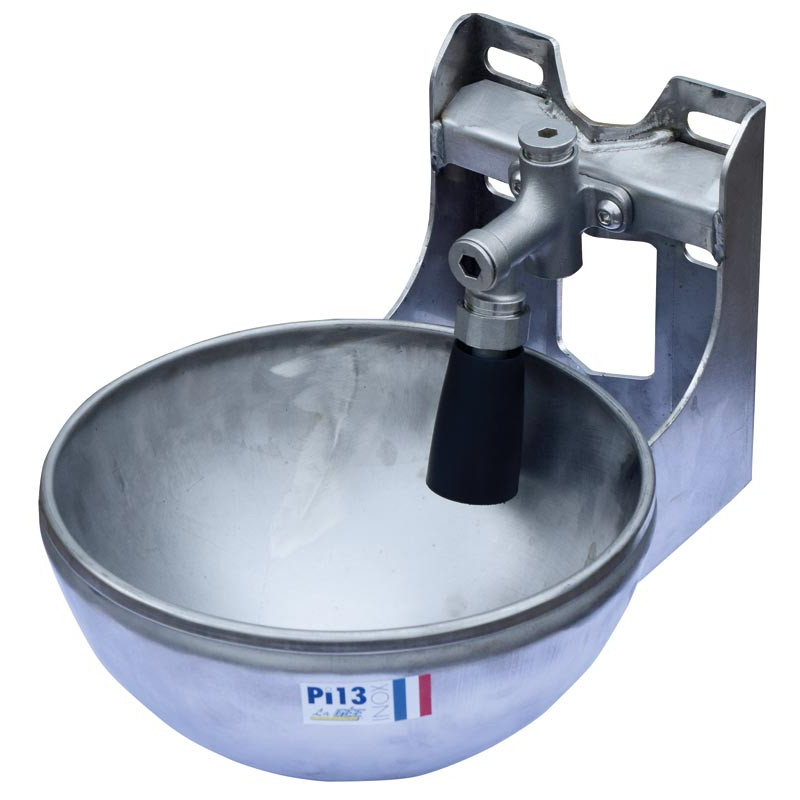

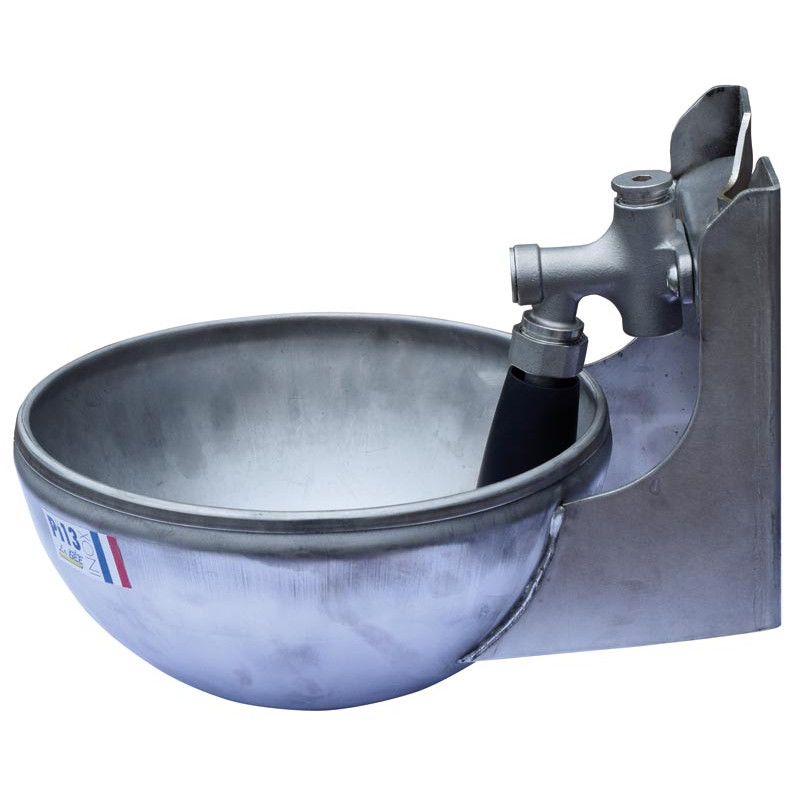

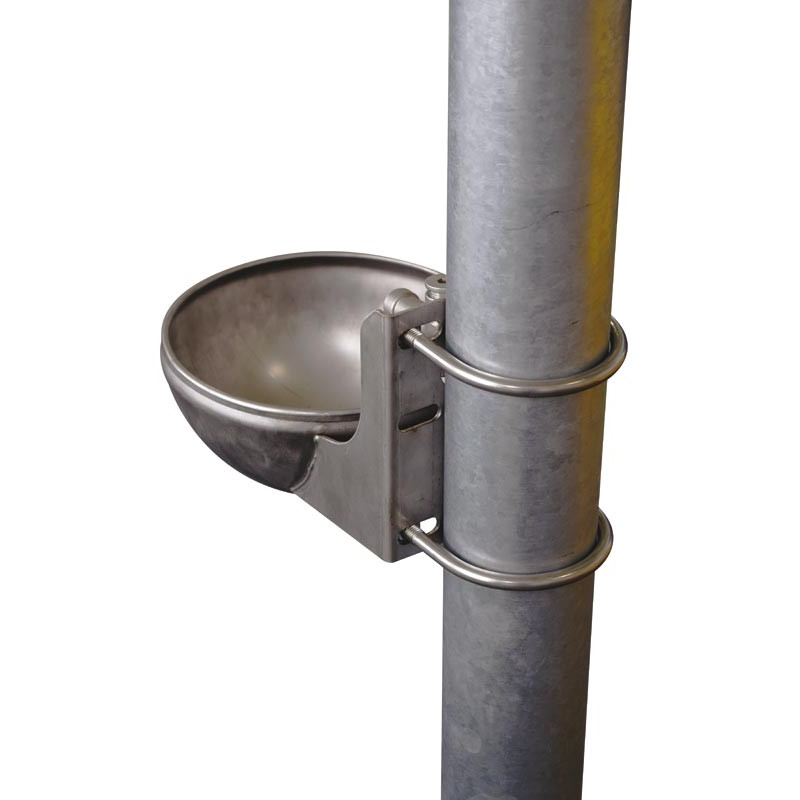

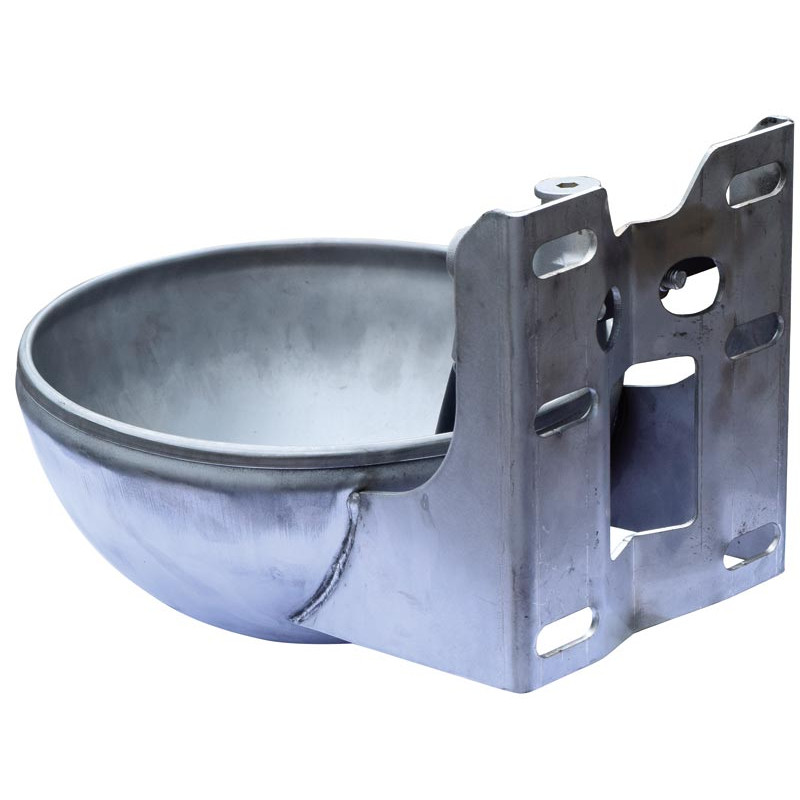

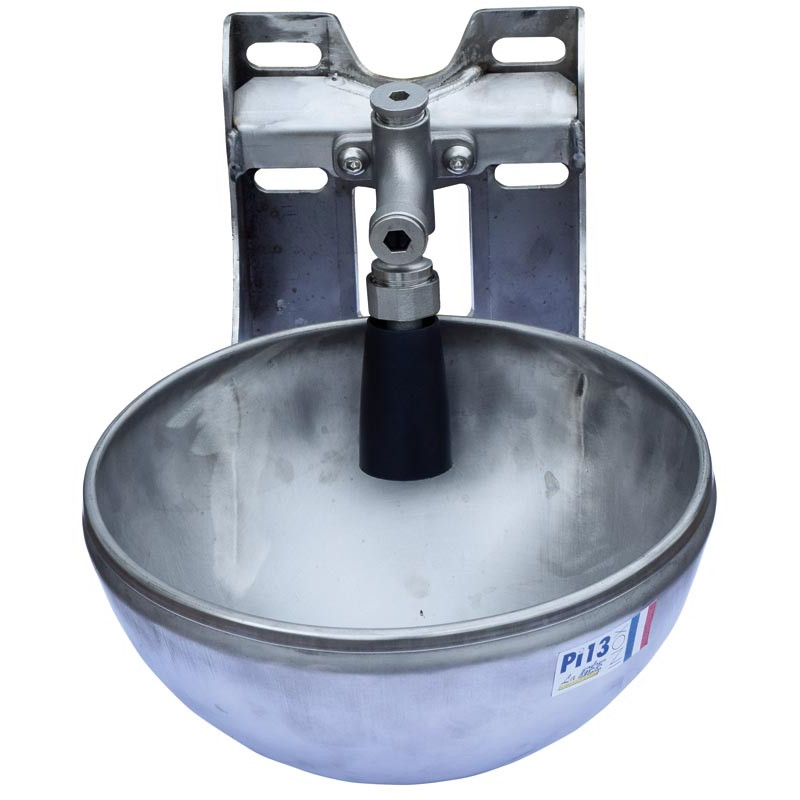

Stainless steel one-piece drinker, single bowl with curved rim (limiting splashing). Fastening with a stainless steel wall mounting plate by oblong holes. Can be directly fitted on a metallic post with no specific flange.

Connection from the top and/or the bottom possible.
Fitted with:
- 1 3/4"n vertical pilot valve,
- 1 3/4 plug".




Material
stainless steel

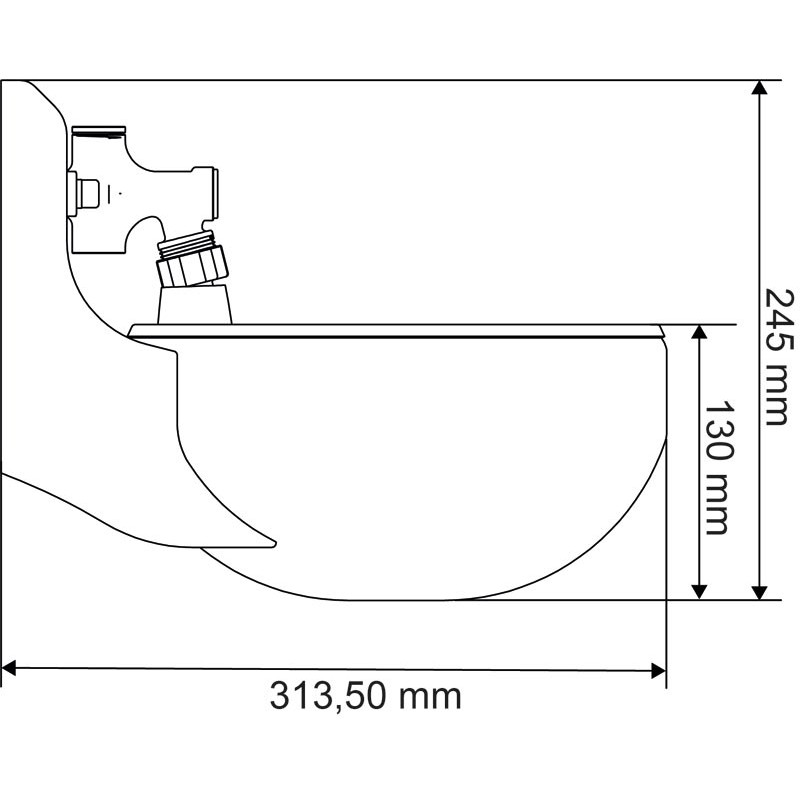

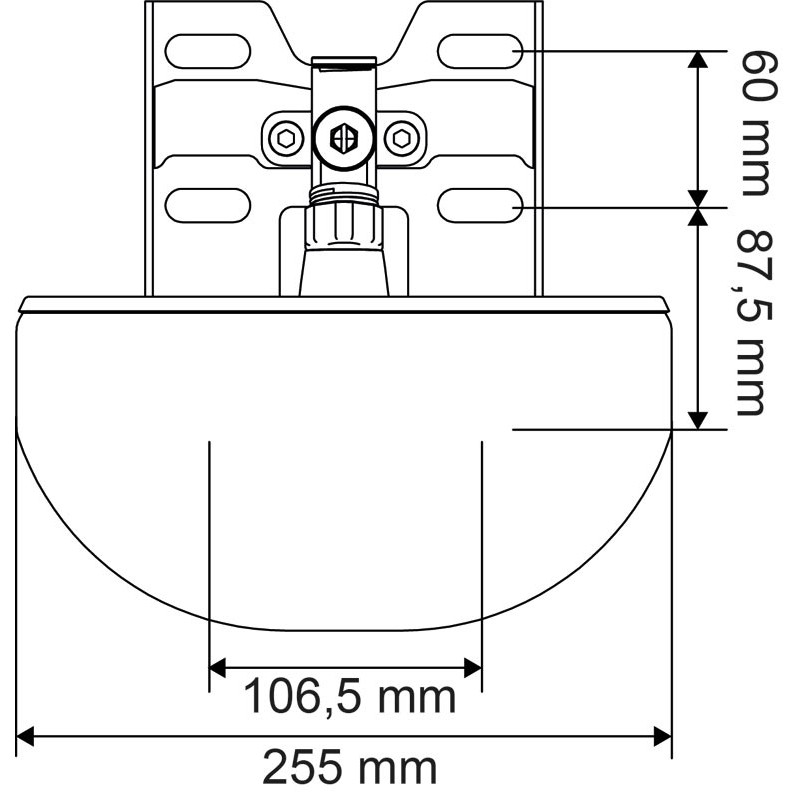

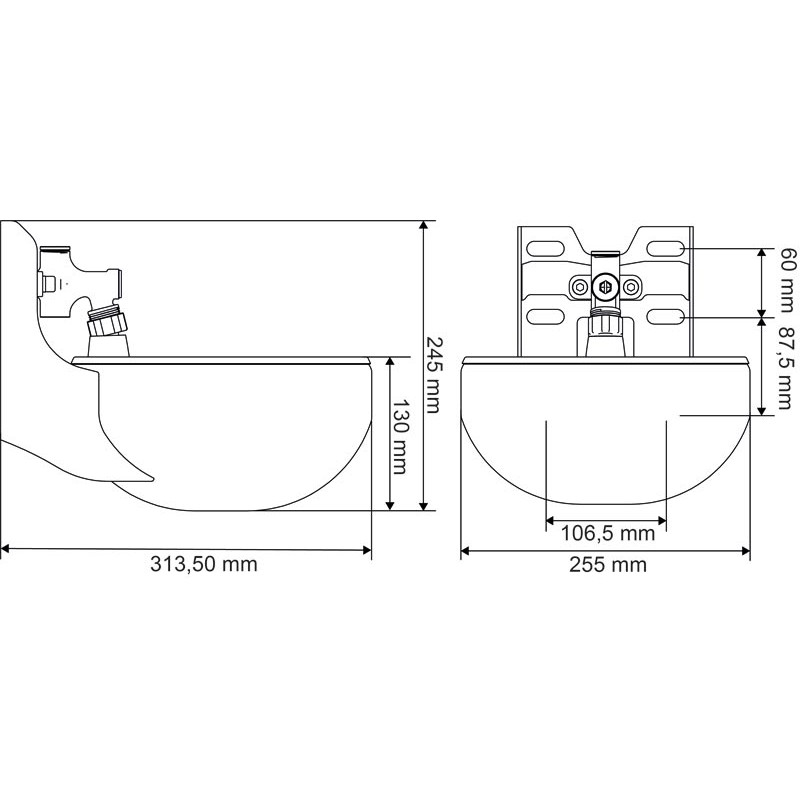

Length
255 mm
Width
273.50 mm
Height
245 mm
Drinker
PI13
System
push-type
Mechanism
stainless steel vertical pilot valve
Fastening
wall
Device
Heated optional
Flowrate
1 à 19 l/min
Connection diameter
3/4" (20/27 mm) - female
Packaging
bag
Pusher
tube
Valve
stainless steel
Filter
original
Sales unit
Unit
Sales packaging unit
Packaged in bags.
