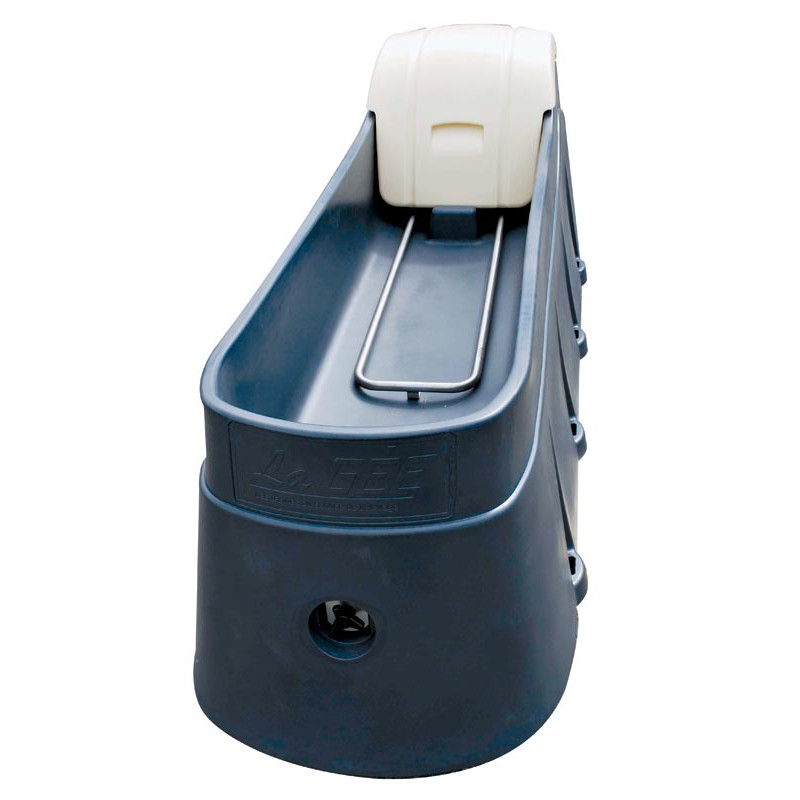

Non-heating POLYMAX drinker
Feature-Benefits :
Very high flow, factory fitted with three float valves, fourth one in option.
Naturally corrosion-free.

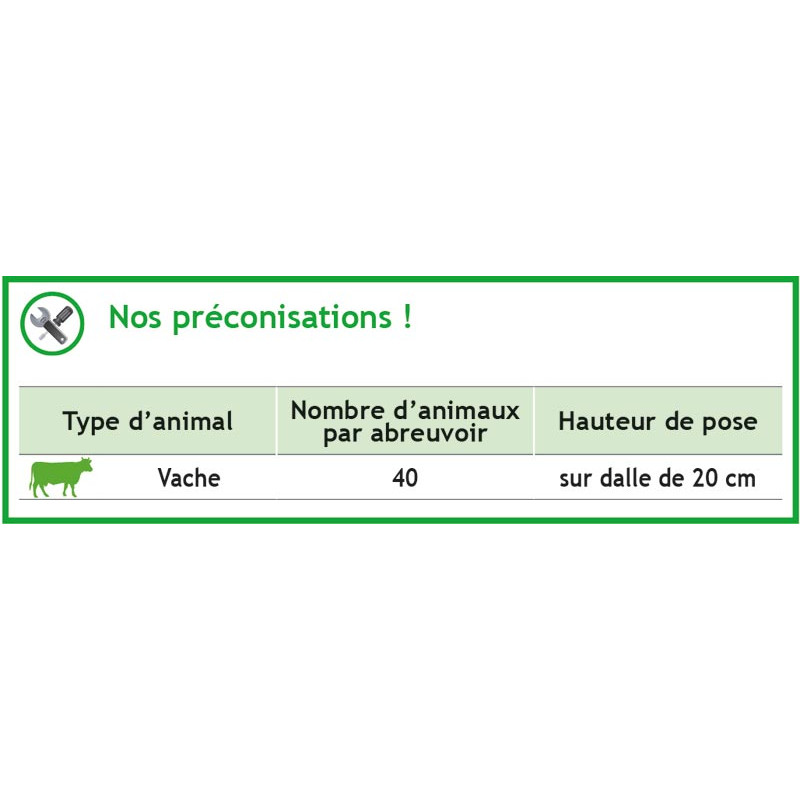

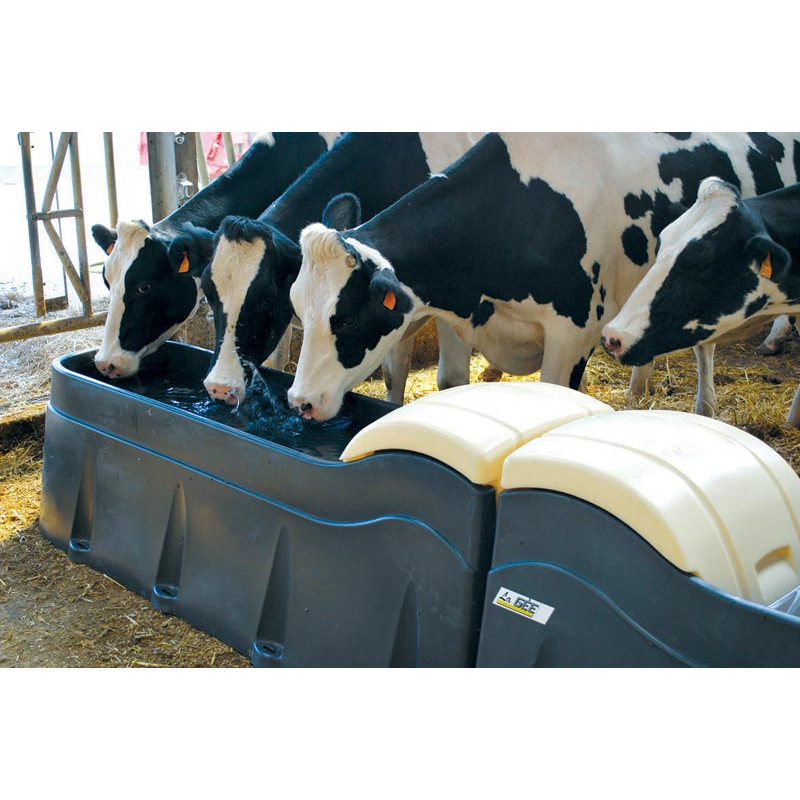

Thanks to its shallow design and size, it is ideally used in stalls, between stall corridors or in watering areas to allow the animals to access either side of the trough. It is estimated that a dairy cow can drink up to 40% of her daily water intake after milking. As such, it is essential that the troughs are positioned in this area and have an adequate flow rate, such as the Polymax.

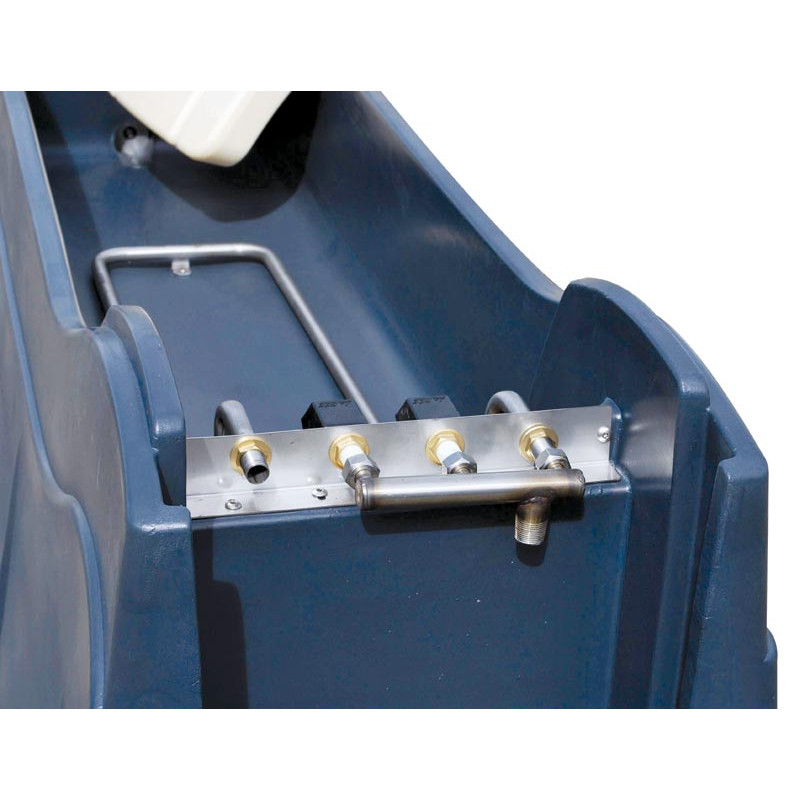

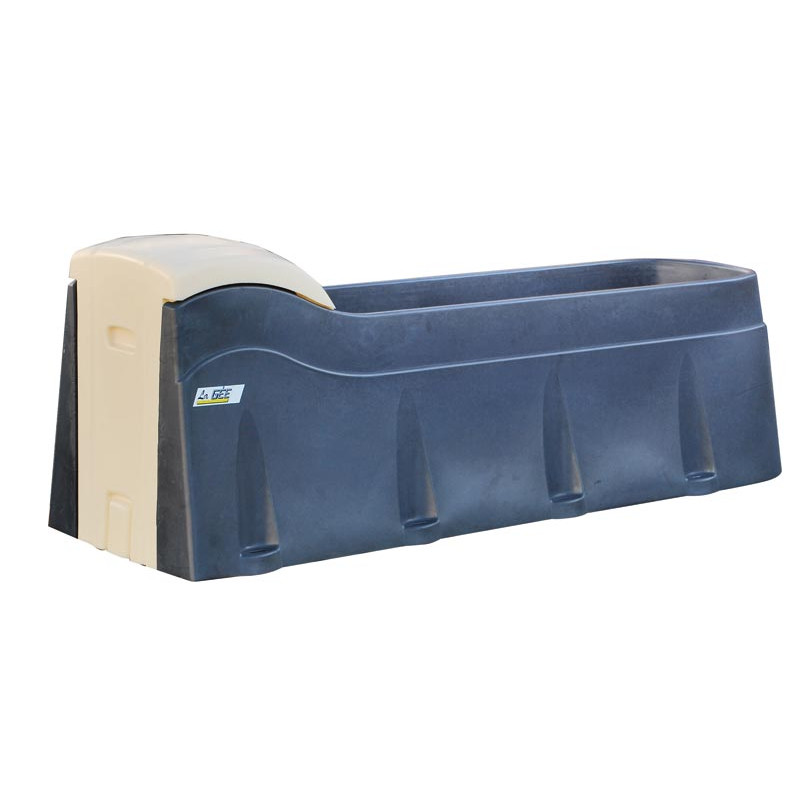

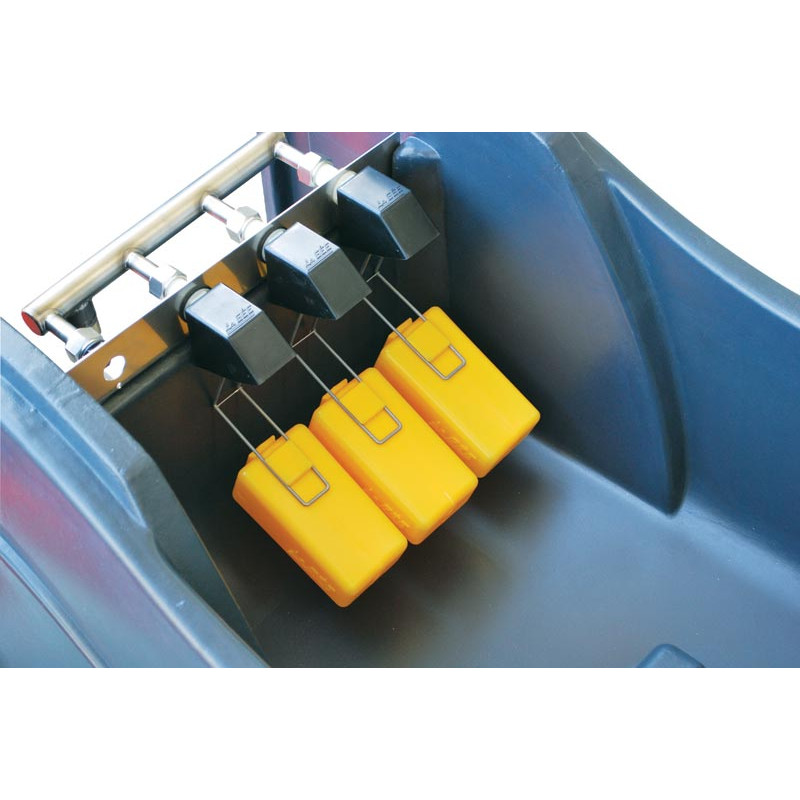

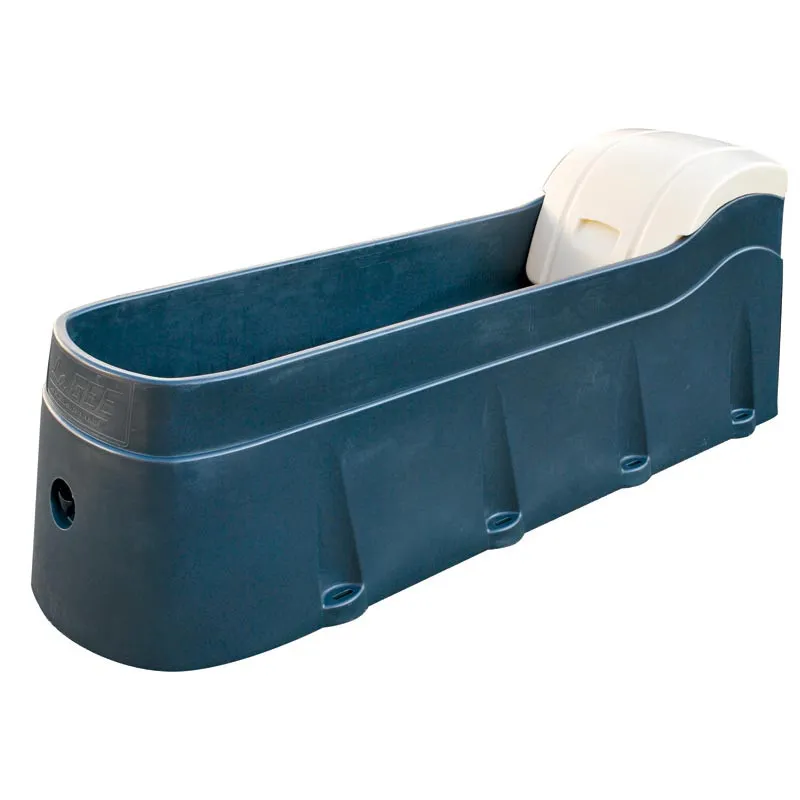

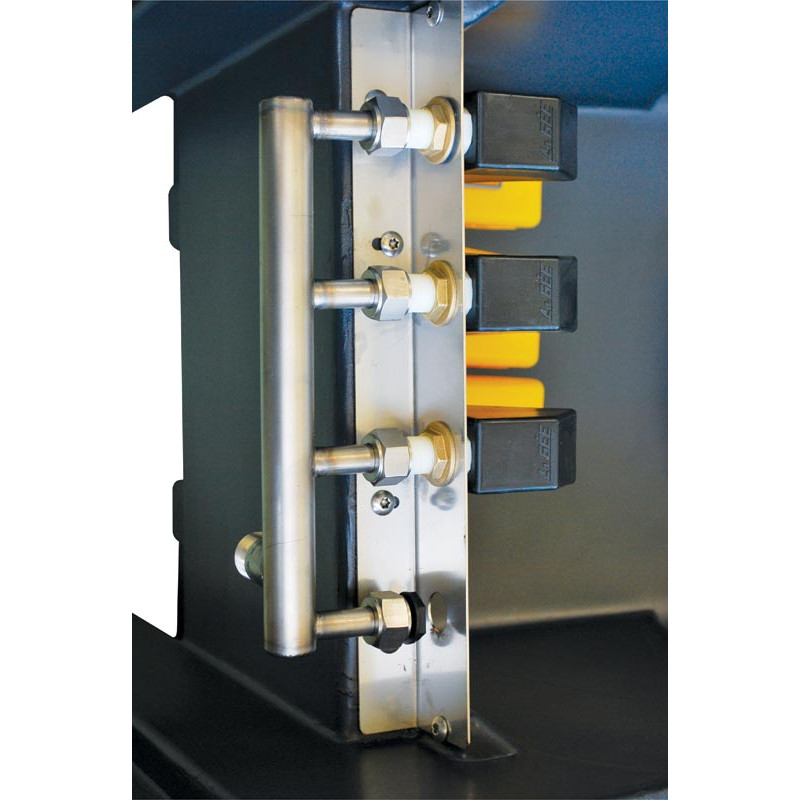

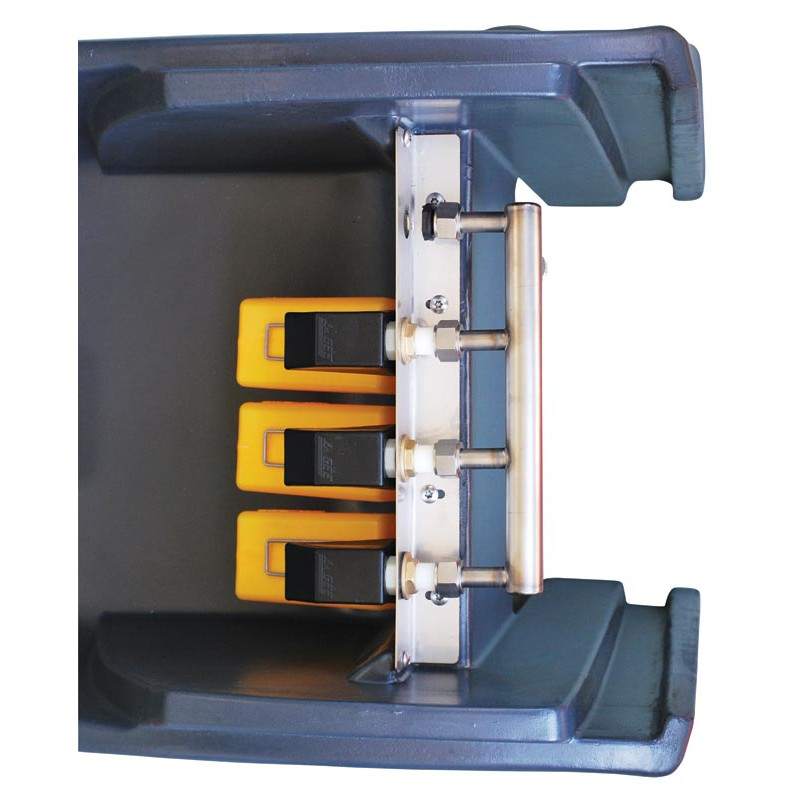

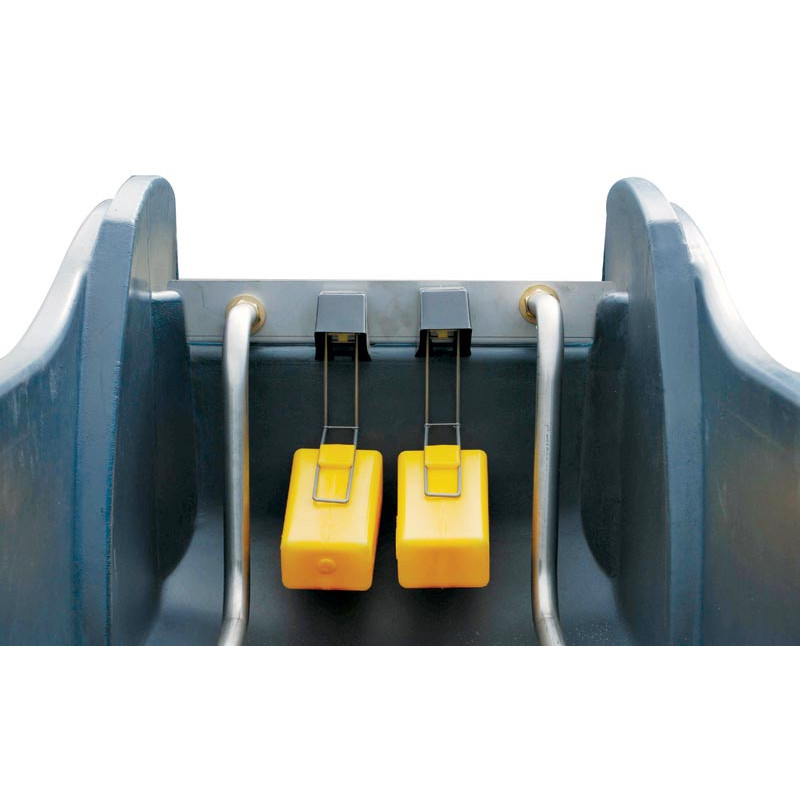

This 200 l capacity rotomolded polyethylene resin drinker is very robust and corrosion resistant. It is fitted with a 3/4" feeder with three La Gée 32 l / mn float valves, a fourth can be added as an option for a greater supply of fresh water. It can also be connected to an optional loop heating power supply system or to our Caloporteur heat-carrying system cabinet. Coupled to the polyresistances (option), it offers a non-freeze assembly.

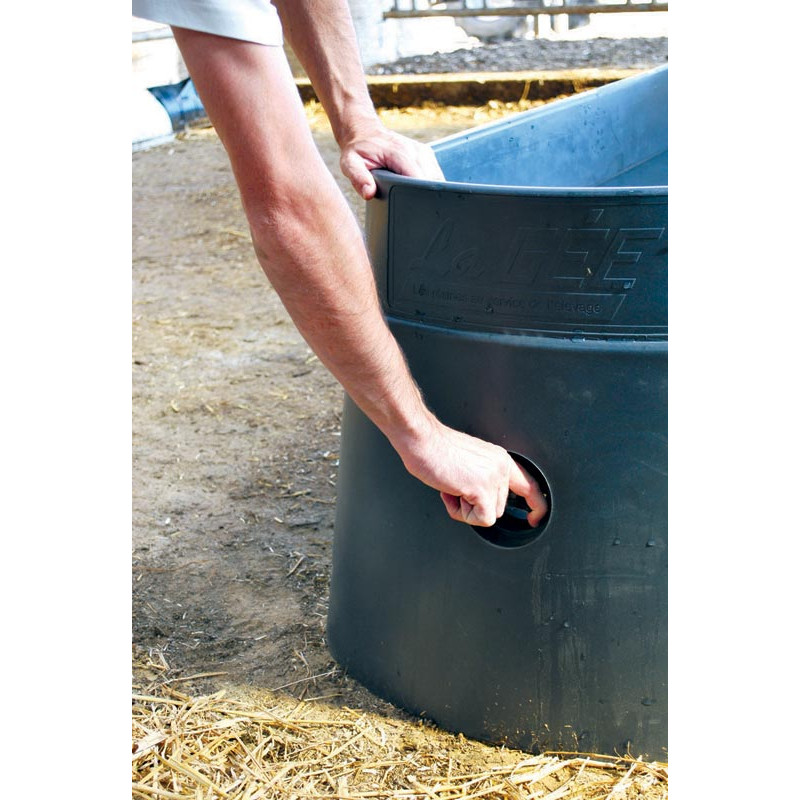

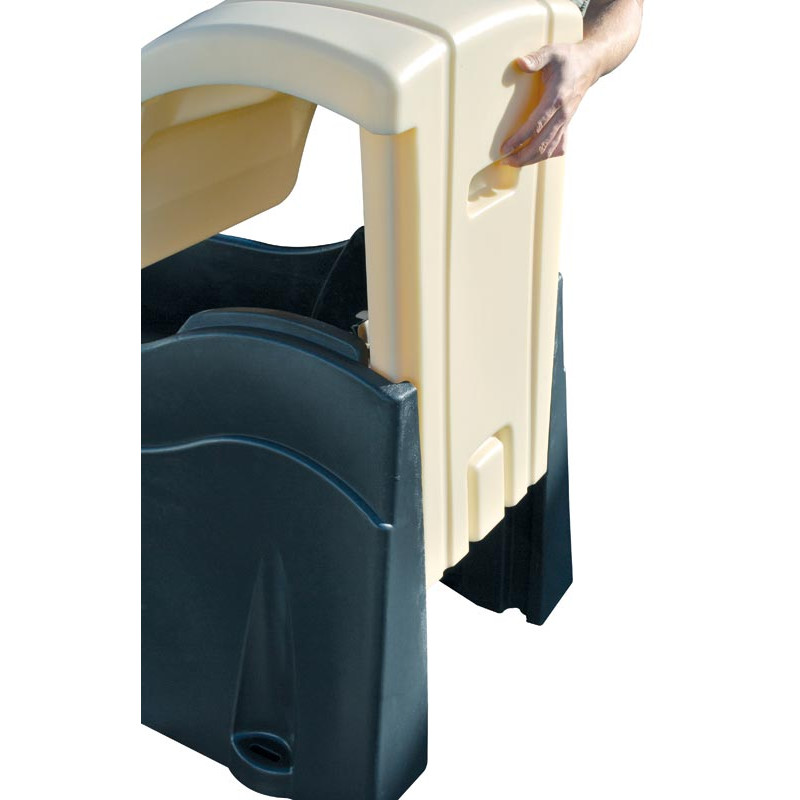

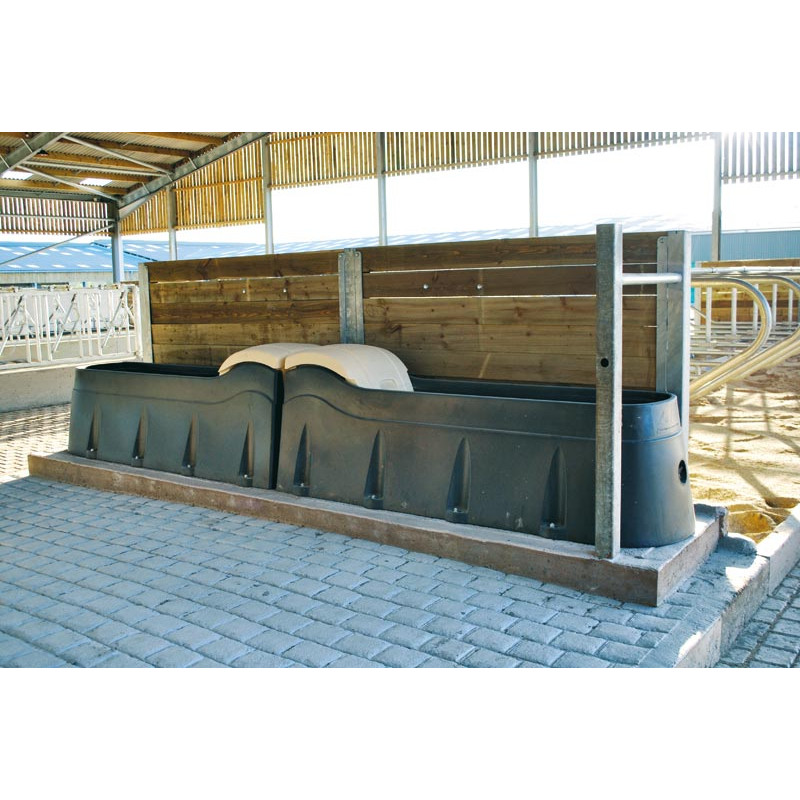

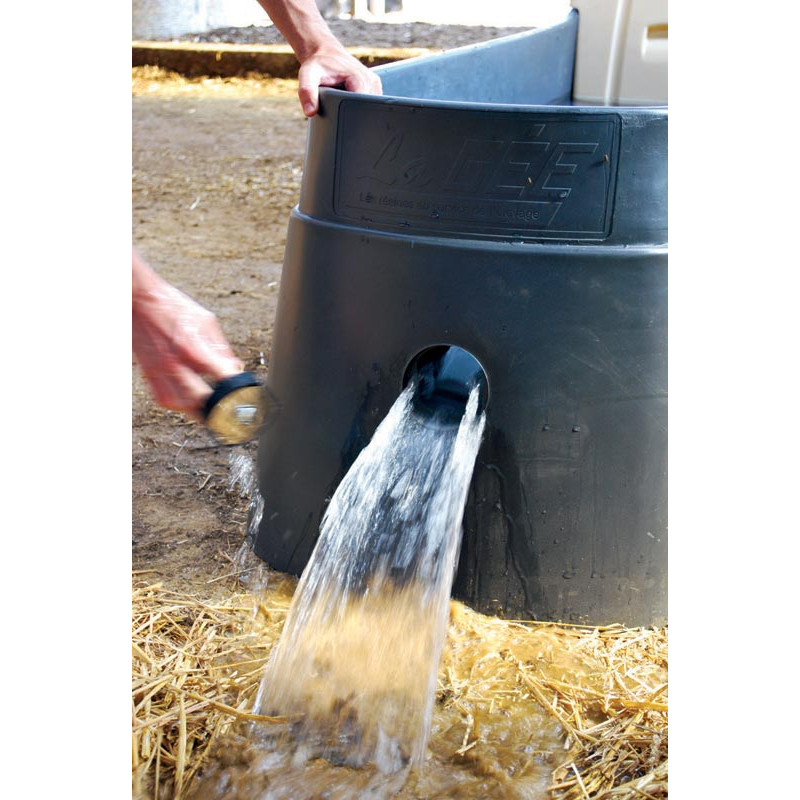

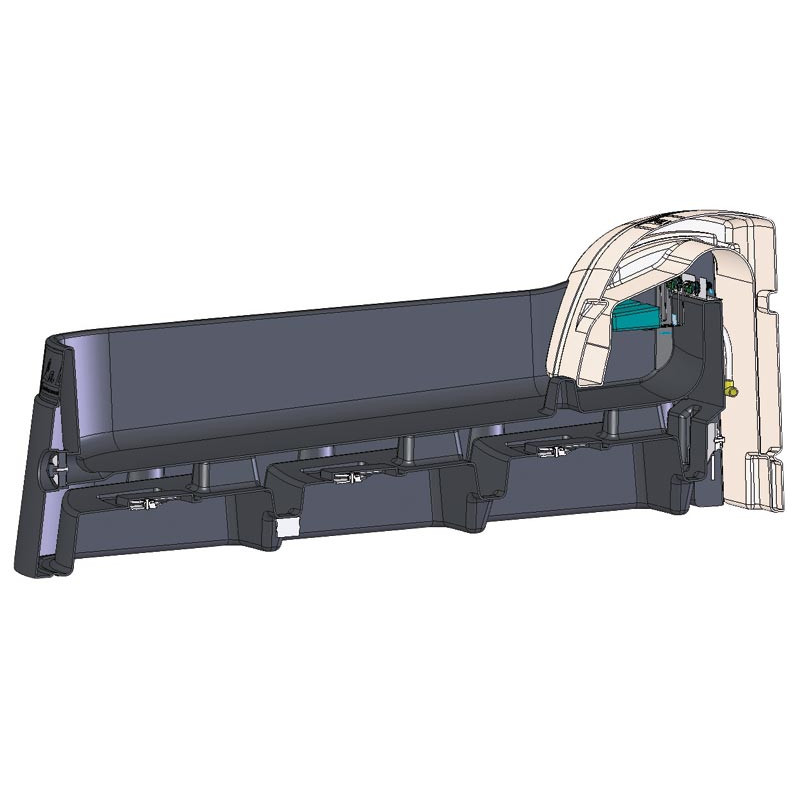

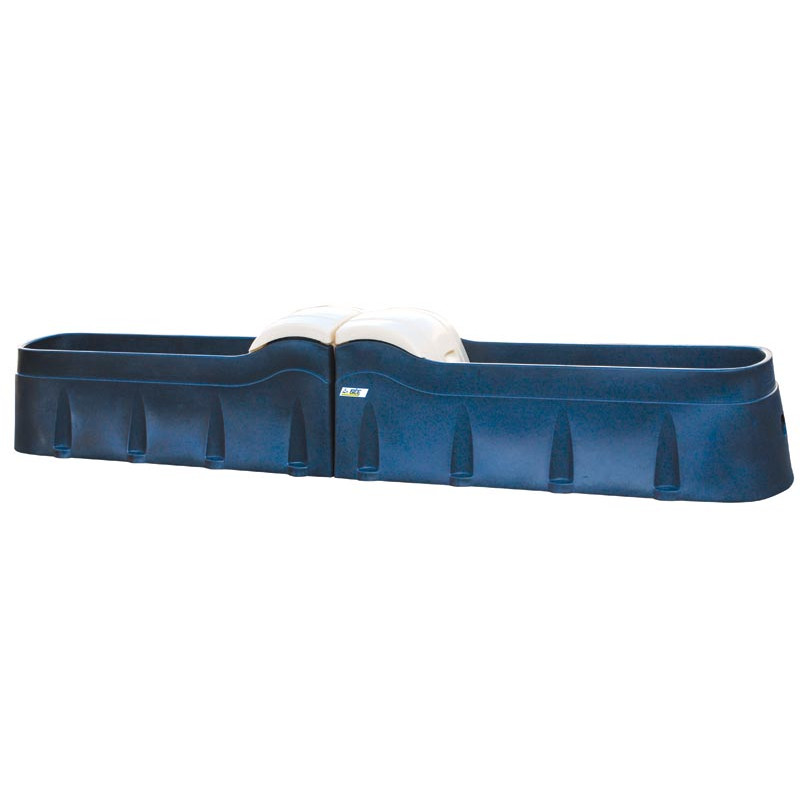

The water inlet is protected in a technical space created by the rotomolded housing which can be removed without tools as it is clipped onto the trough. The drinker is fastened to the ground, ideally on a raised 20 cm slab, by eight wide reinforced holes integrated into the lower part of the double walled tank and can be put back-to-back and linked to a single water inlet. It has a wide drain for quick cleaning.
Options: Polymax circulation loop kit (P1130784), 24 V 80 W heating Polyresistance - 3 A (P1130780)
- Material
- rotomolded polyethylene resin

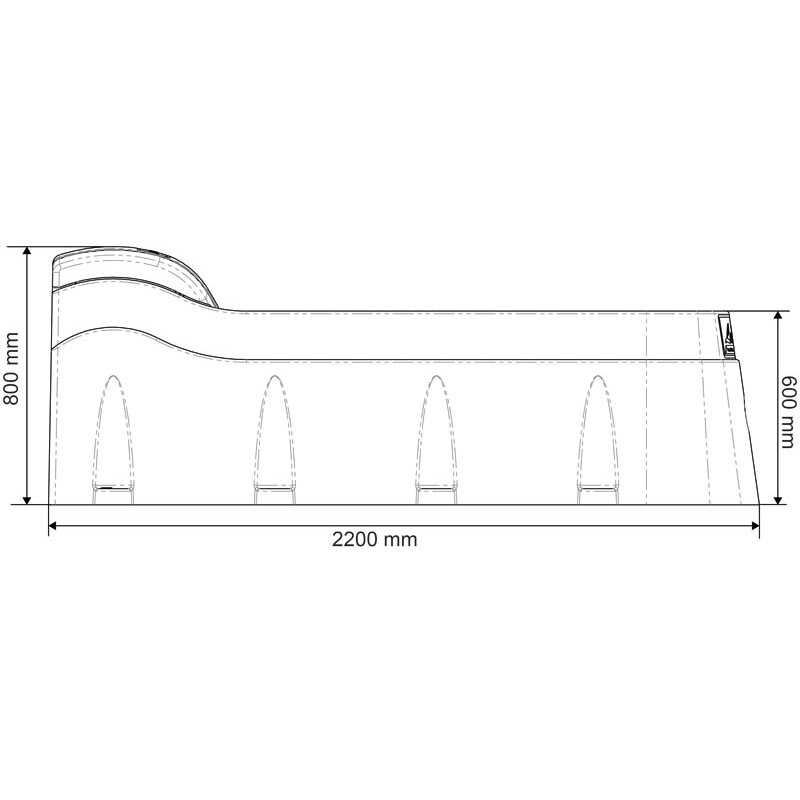

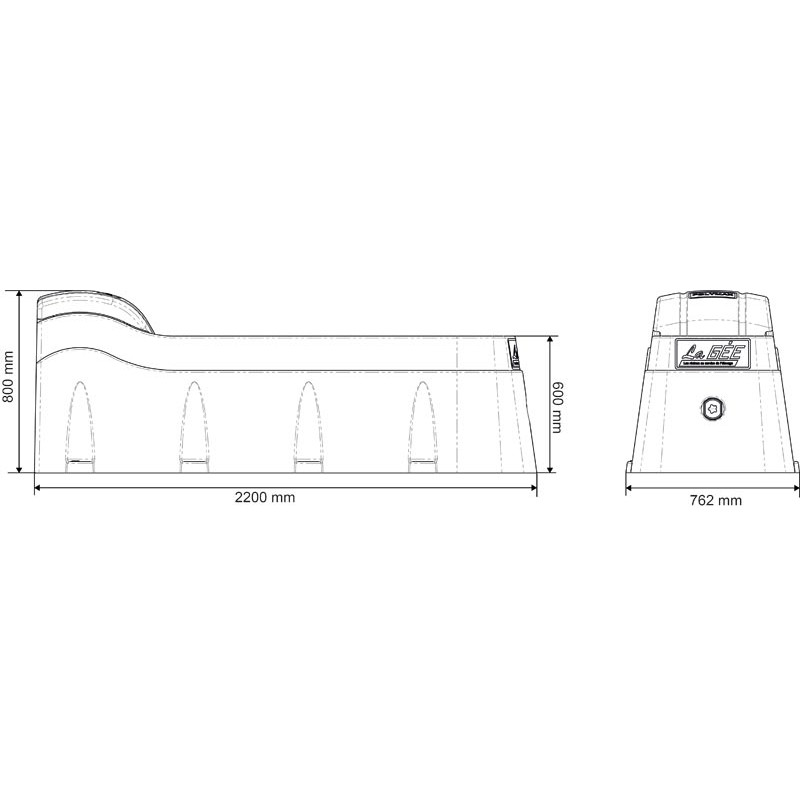

- Length
- 2.20 m

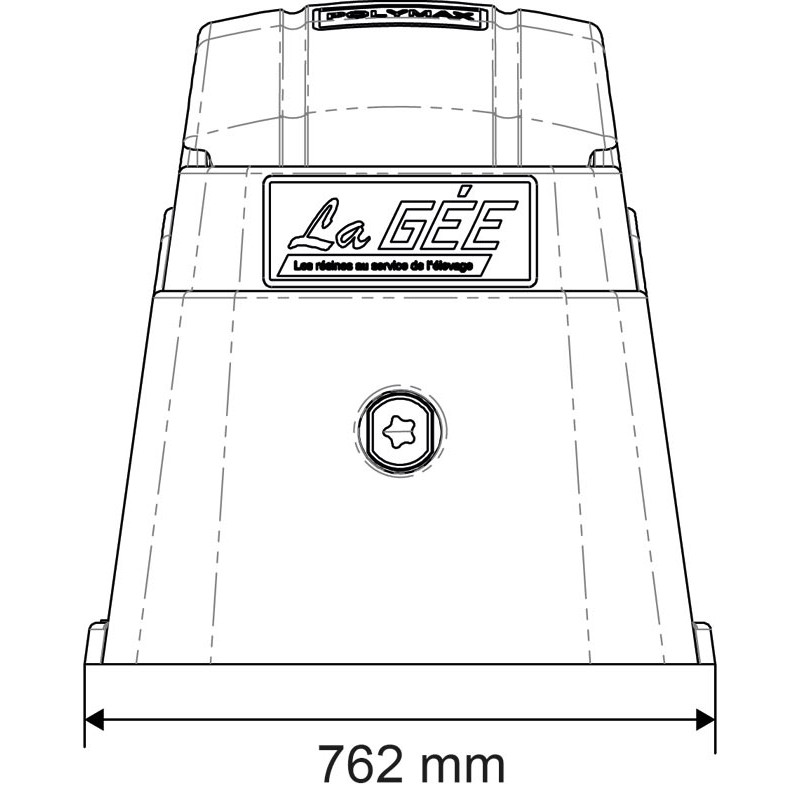

- Width
- 0.76 m
- Height
- 0.80 m
- Capacity
- 200 l
- Pressure
- network
- Drinker
- Non-heating POLYMAX
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- ground
- Device
- non-heating
- Connection diameter
- 3/4" (20/27 mm) - male
- Packaging
- No packaging
- Flow rate
- 1 to 32 l/min
- Sales unit
- Unit
- Float valve
- Pressure network en polyamide blanc (P1138310)
