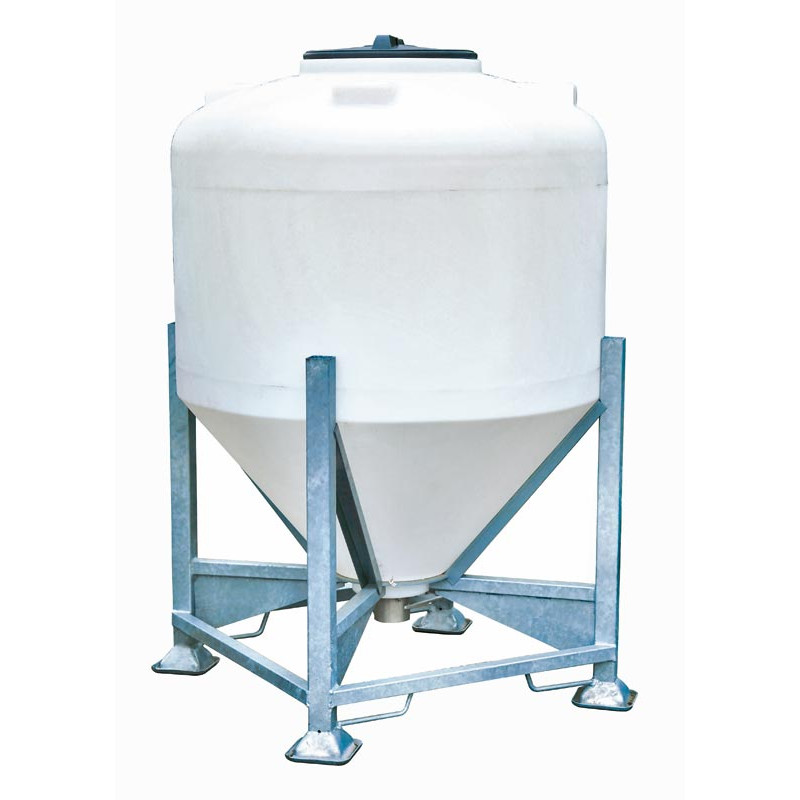

1,000 l feedstuffs silo with hatch on chassis

Feature-Benefits :

Special small capacity.
Robust in rotomolded polyethylene.

430_PRODUIT_COUR-P1.svg
> More details
500, 1,000, 1,500, and 2,000 litre storage silos can be used for cereals and solid and liquid feed having a density of up to 1.
The monoblock tank of storage silos:
- Ø 1,170 mm
- manufactured in food grade, translucent, UV stabilised, and frost resistant PE resin,
- with 80° outlet cone for excellent flow.
- With filler cover and Ø 455 mm vent,
- fitted with either a Ø 100 mm emptying hatch for feed or 2” (50/60) flanged quarter-turn valve for liquids with a density of 1.
- monitoring of the filling level is via transparency.

Features:
- a monoblock tank with
either a Ø 100 mm emptying hatch for feed
or 2” (50/60) flanged quarter-turn valve for liquids with a density of 1.
- a cover
- a 1,085 x 1,085 mm galvanised chassis



Option: 90 cm above ground raising extension (P1136109)

Material
rotomoulded resin
Width
1.20 m
Capacity
650 kg
Diameter
1.17 m
Depth
1.20 m
Height beneath hatch
0.18 m
Height of tank on chassis
1.78 m
Packaging
No packaging
Sales unit
Unit
