Water flow rate adjustable up to 14 liters per minute by cutting the plastic cone located inside the mechanism under the filter.
Gentle push paddle mechanism with an anti-splash tube-type nozzle.
Fitted with a sturdy mounting plate and two openings at the bottom for easier installation. Cleaning plug (Ø 19 mm).
Brass valve mechanism with a 1/2" (15/21 mm) valve outlet on top and fitted with a filter.
Tube and vertical paddle models facilitate access to the bowl for cleaning.



Options: flange for post mounting, metallic protection, and corner bracket.

Material
injected polythene resin

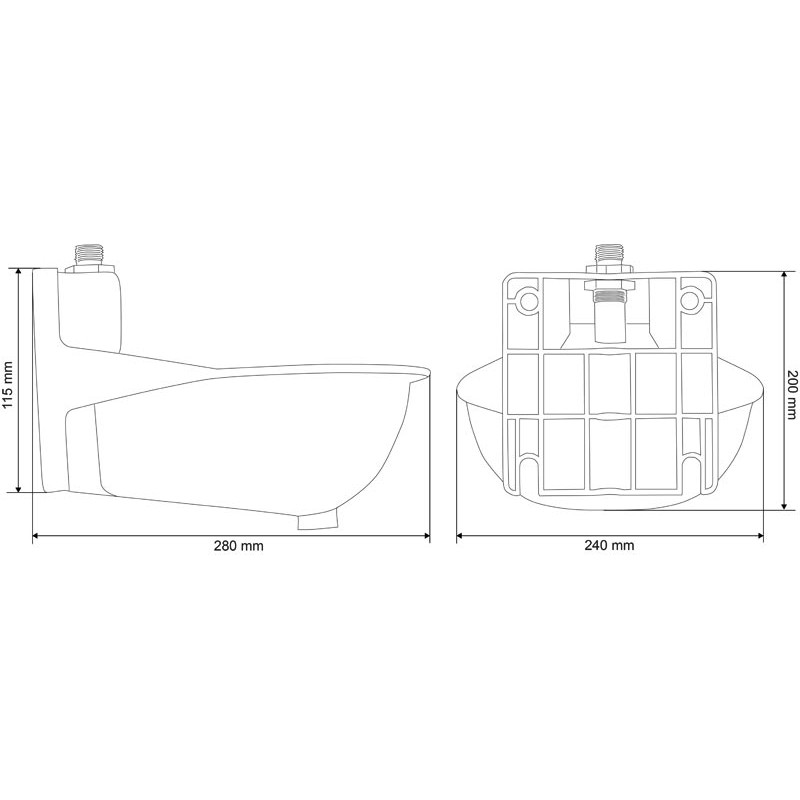

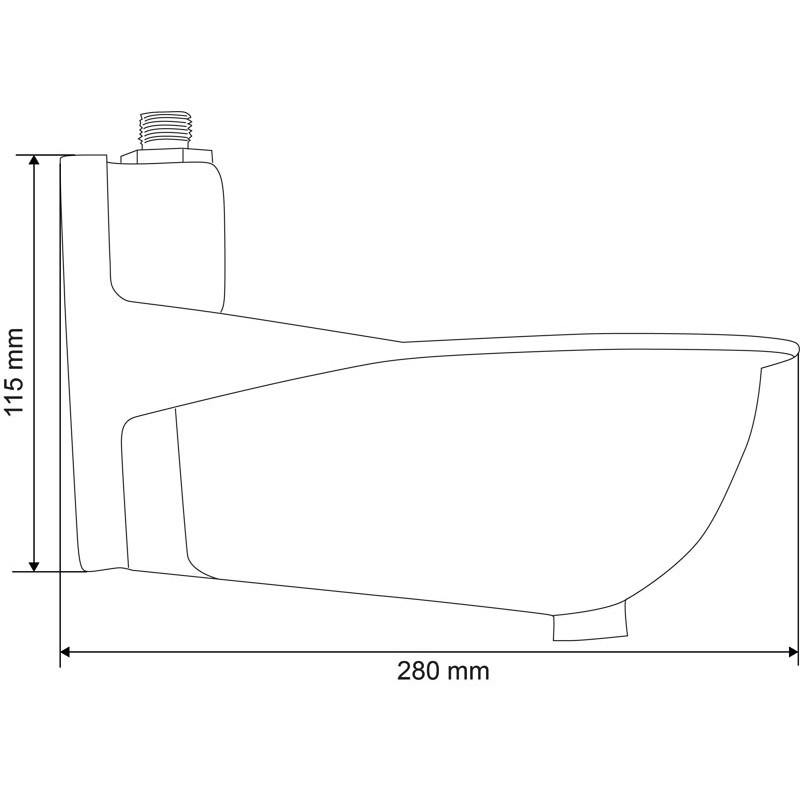

Length
280 mm

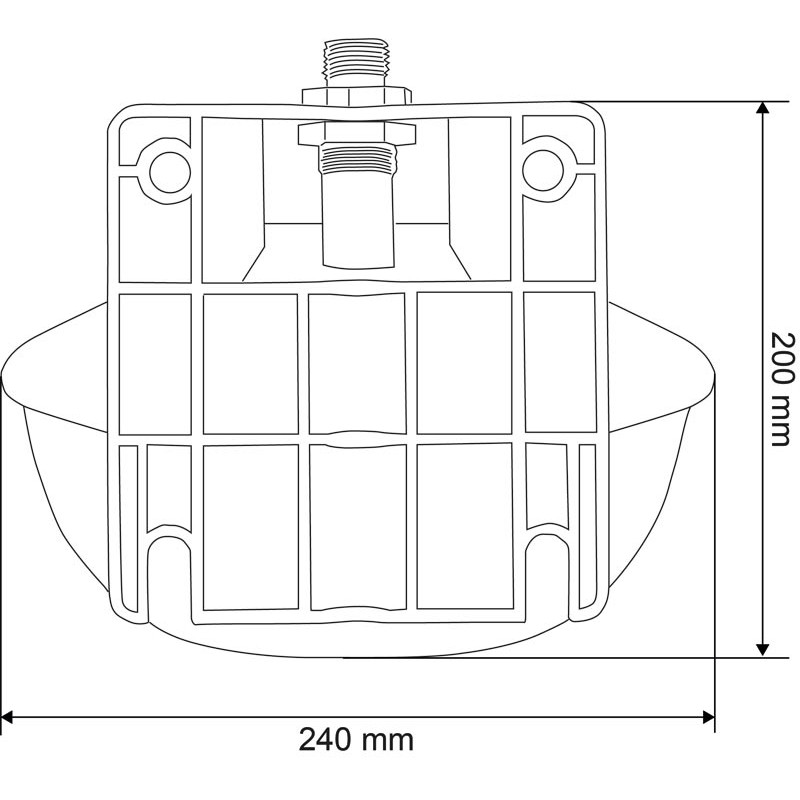

Width
240 mm
Height
115 mm
Pressure
network
Drinker
Autodrink
System
push-type
Mechanism
single
Fastening
wall
Device
non-heating
Flowrate
1 à 14 l/min
Connection diameter
1/2" (15/21 mm) - male
Packaging
boxed
Pusher
Vertical paddle
Valve
brass
Sales unit
Unit
Sales packaging unit
Boxed.
Drain plug diameter
19 mm
