Feature-Benefits : POLYBAC M are simple and economical
140_DEBIT_32_L-P1.svg 170_PRESSION_3_4_BARS-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

Made in corrosion-free rotomoulded polyethylene, these large capacity drinkers are fitted with the La Gée 32 l/mn constant level mechanism in 1/2" connection and a 33/42 through wall plug for quick cleaning and emptying. The mechanism is protected by a cast aluminium or stainless steel sheet housing. Wall trough supports are factory fitted with a water inlet on the wall side. Ideally operates on pressure range from 3 to 4 bars.

The tip-over Polybac M is available in two version: 30 M and 75 M. Designed with a wide bowl with a patented strip rim offering durability, facilitating cleaning, and increasing the water surface available.
Fitted with a 1/2" stainless steel braided hose that can be connected to the network for easy connection. Can be wall-mounted thanks to its tilting galvanised steel support operated by the rear locking handle.
This drinker can be integrated into a tubular module drinker (option).



Delivered without fastening support. Option: support and tubular protection.
Material
rotomolded polyethylene resin

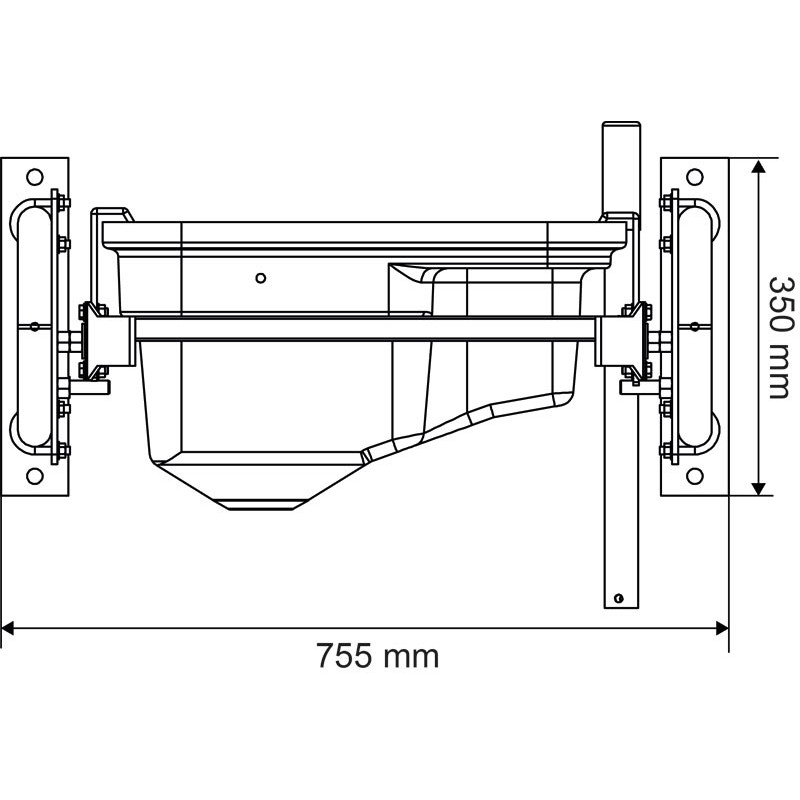

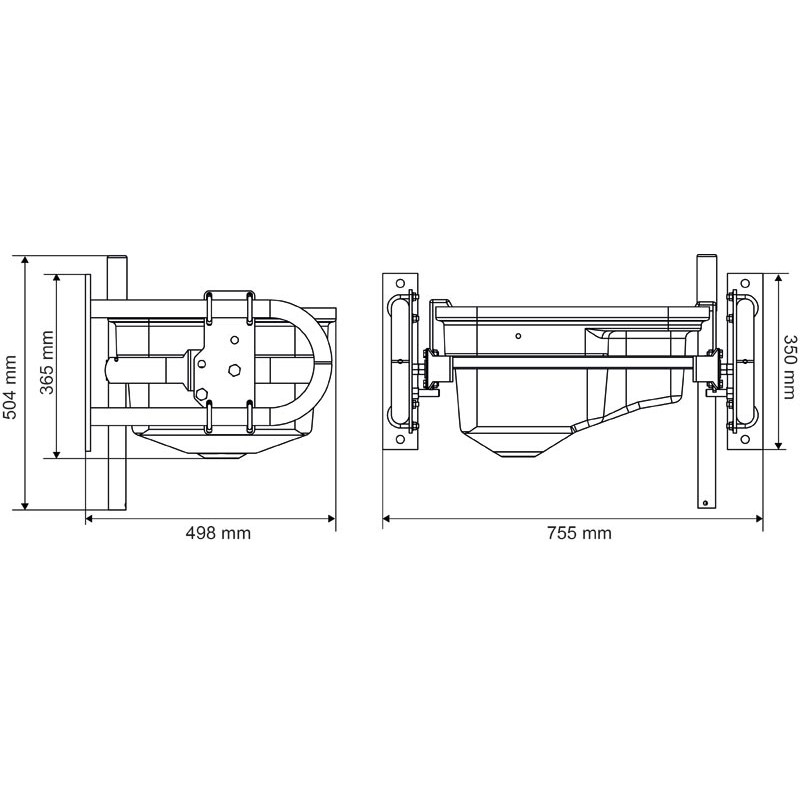

Length
755 mm

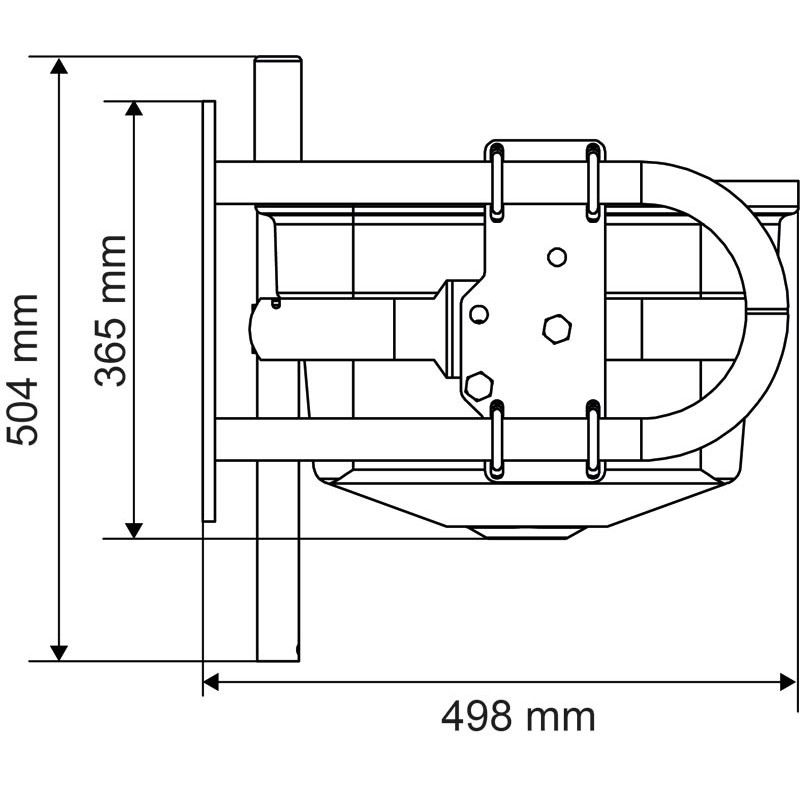

Width
498 mm
Height
504 mm
Capacity
30 l
Model
30 M
Type
strip rim
Pressure
network
Drinker
Polybac M Tilting
System
constant level
Mechanism
float valve tap
Fastening
wall
Device
non-heating
Connection diameter
tresse inox 1/2" (15/21 mm) - male
Packaging
No packaging
Flow rate
1 to 32 l/min
Sales unit
Unit
Float valve
Pressure network en polyamide blanc (P1138310)
