Complete through-wall (15/ 21 mm)

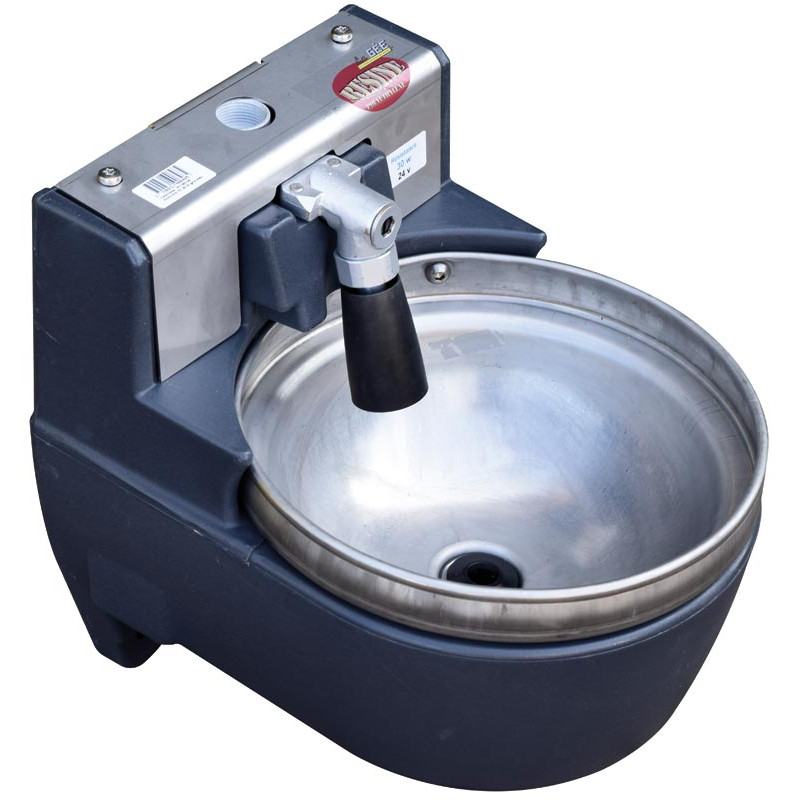

Heating RESINOX II drinker
Feature-Benefits :
Easy to clean.
Top or bottom supply.
The heating version is ideal to protect against freezing.
Top or bottom supply.
The heating version is ideal to protect against freezing.
Thanks to its factory fitted stainless steel T fitting, it can be connected in a circulation loop.
The 24 V electrical connection is in a derivation box directly rotomolded into the Resinox body fastened beneath the drinker.

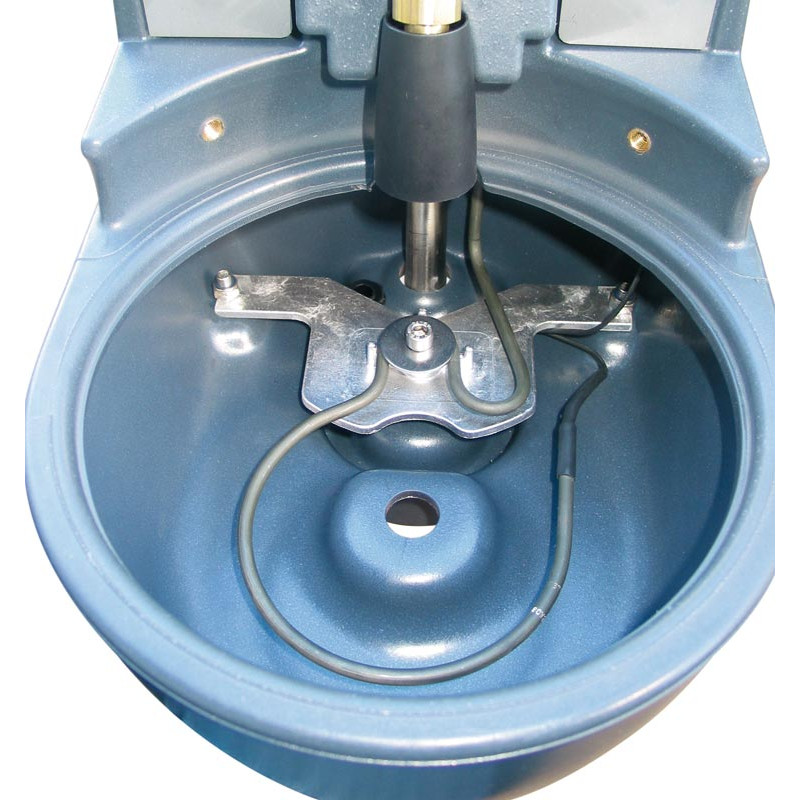

The 50 W heating element is fixed on a cast aluminium mounting plate which is itself fixed inside the PE bowl holder.
Fitted with:
- 1 horizontal pilot valve
- 1 removable housing allowing easy access to the drinker mechanism.
- 1 3/4" (20/27 mm) T fitting
- 1 1/2" (15/21 mm) drain plug
- 1 24 V heating element - 50 W
- top or bottom connection
- 1 3/4 stainless steel tube"
Option: transformer and thermostat.
- Material
- stainless steel and rotomolded polyethylene resin

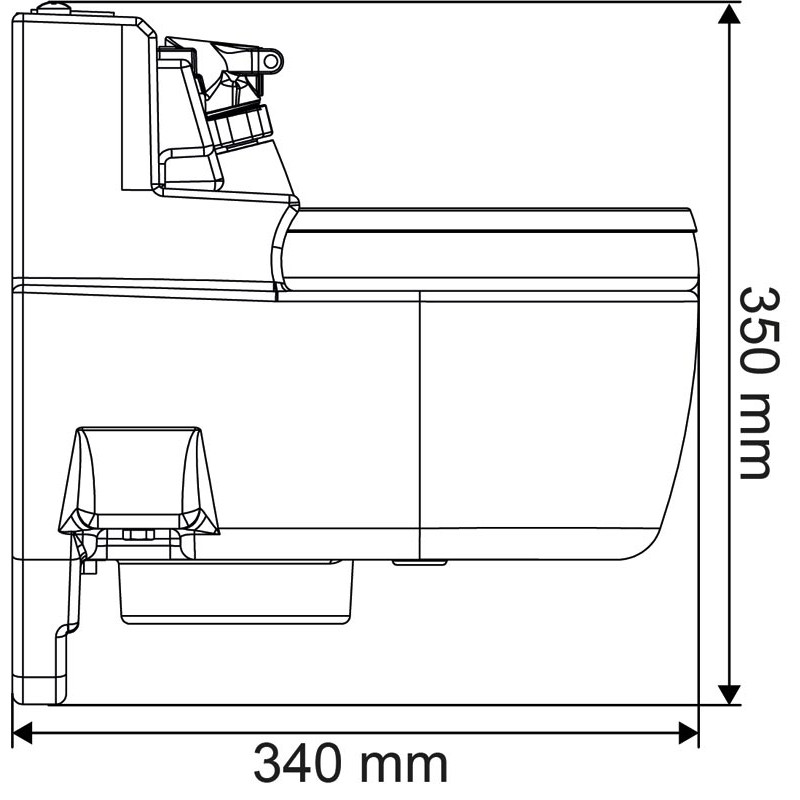

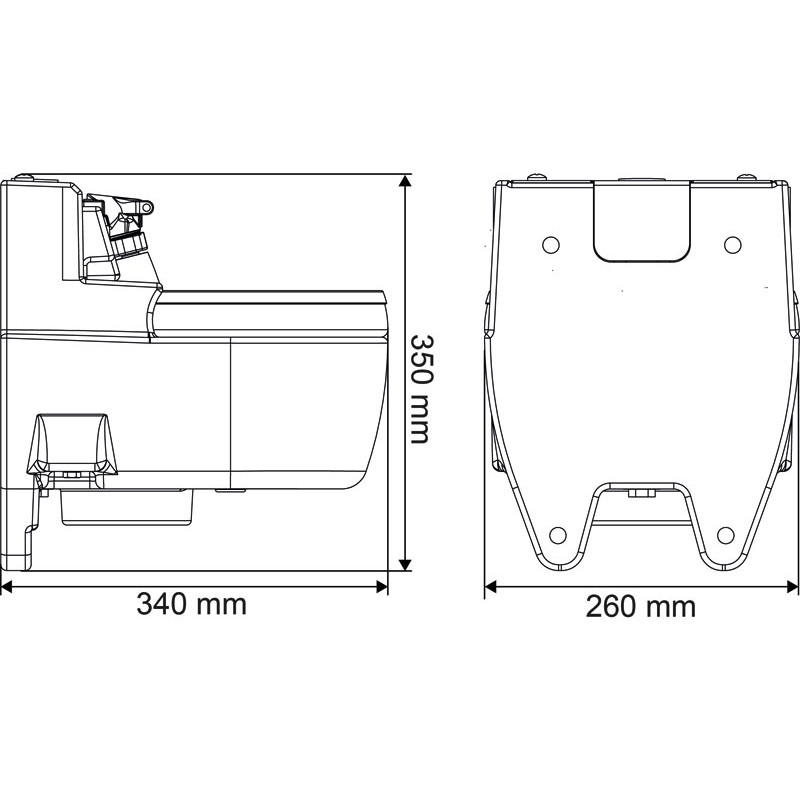

- Length
- 340 mm

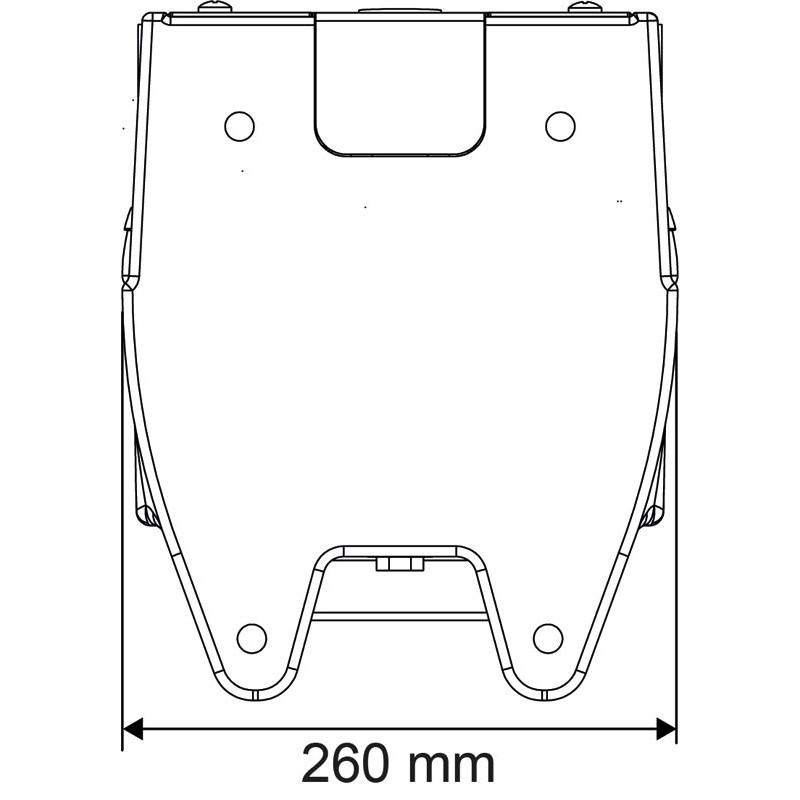

- Width
- 260 mm
- Height
- 350 mm
- Pressure
- network
- Drinker
- Resinox II
- System
- push-type
- Mechanism
- horizontal pilot valve
- Fastening
- wall
- Device
- heating
- Flowrate
- 1 à 18 l/min
- Connection diameter
- 3/4" (20/27 mm) - female
- Packaging
- boxed
- color
- blue/grey
- Pusher
- tube
- Valve
- stainless steel
- Rating
- 50 W
- Sales unit
- Unit
- Sales packaging unit
- Boxed.
- Drain plug diameter
- 15/21 mm
