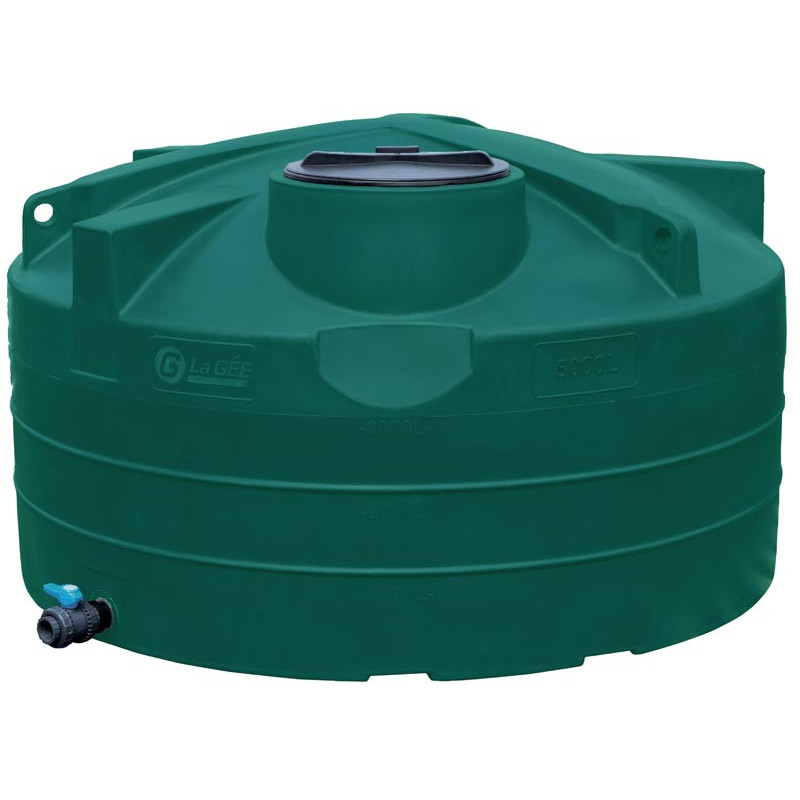

5000 L above-ground tank for high-density liquid storage - D1.5

Fitted with:
- lifting rings moulded in the body at each extremity (to move empty tank),
- a wide Ø 600 mm rotomoulded cover with a Ø 120 mm vent plug in its centre, a Ø 500 mm manhole ensures easy cleaning and maintenance,
- a molded holder on the valve end stores a secondary hose for washing or filling small containers,
- the number of integrated molded baffles varies according to capacity and avoids liquid movement during transport,
- the shape of upper tank allows stacking to optimise space in the storage yard,
- wide feet, the number of which varies according to capacity, ensure high-stability,
- a recess in the top allows a float valve to be installed at any time for automatic filling,
- graduated marks,
- retaining strap recesses molded into the body,
- a complete 50/60 (2") female/male valve/ on threaded flange protected in a recess moulded in the body.
It can optionally be fitted with:
- a 1/4 turn PVC Ø 20/27 valve complete with through wall. Intended for fixing alongside main valve in the protected recess opposite the cover.

The cylindrical monoblock tanks are suitable for storage and transport of high-density solution (up to 1.7kg/dm³) such as liquid fertiliser, molasses, or brine.Made out of rot-proof, UV stable, and frost resistant polyethylene resin.
