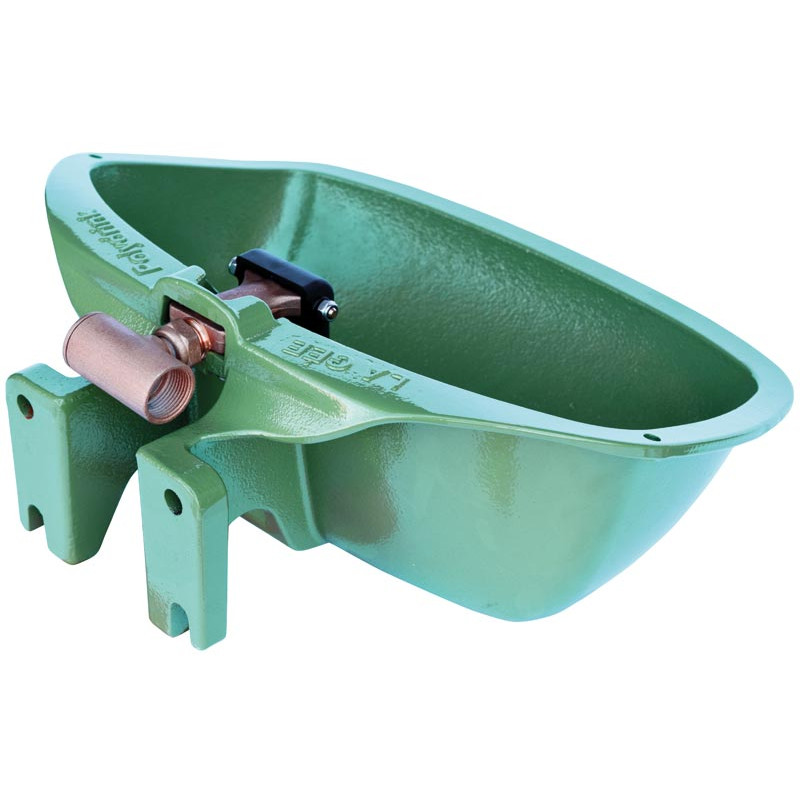

POLYDRINK PF3 drinker

POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
Previous arrow_backward
Next arrow_forward
zoom_in
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
POLYDRINK PF3 drinker
Feature-Benefits :

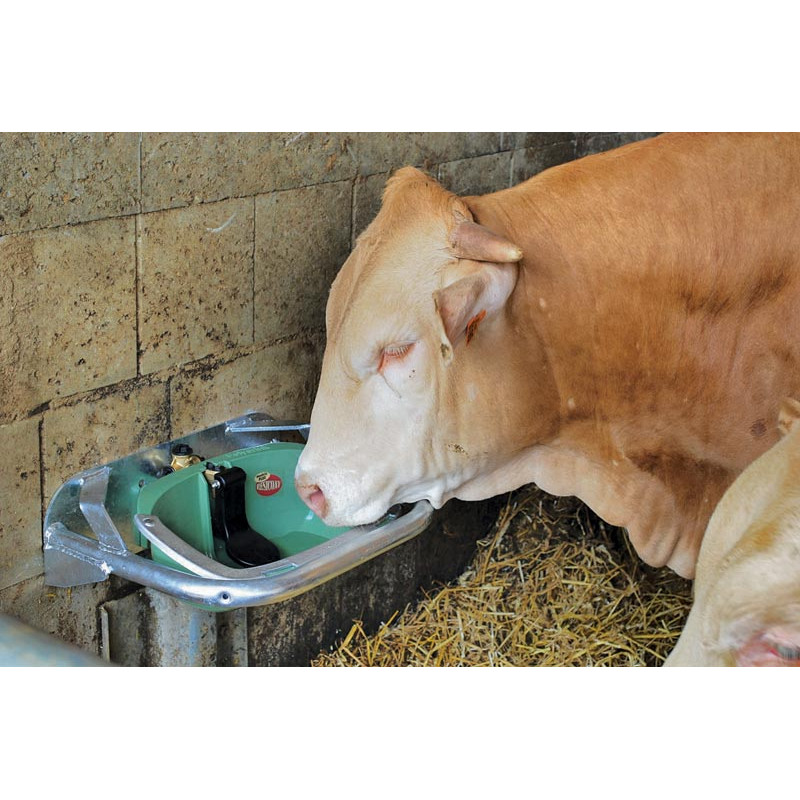

Drinker with a wide bowl that accommodates two animals at the same time.
Multi-directional supply.

Large bol robuste. Idéal utilisé entre deux cases.

040_ALIMENTATION_T_360-P1.svg 110_DEBIT_18_L-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

Fitted with:
- 1 3/4" (15/21 mm) female supply outlet protected at the rear. Filter cleaning and flow adjustment at the front without disassembling the mechanism;
- Pusher of your choice and interchangeable: tube, horizontal paddle, or vertical paddle

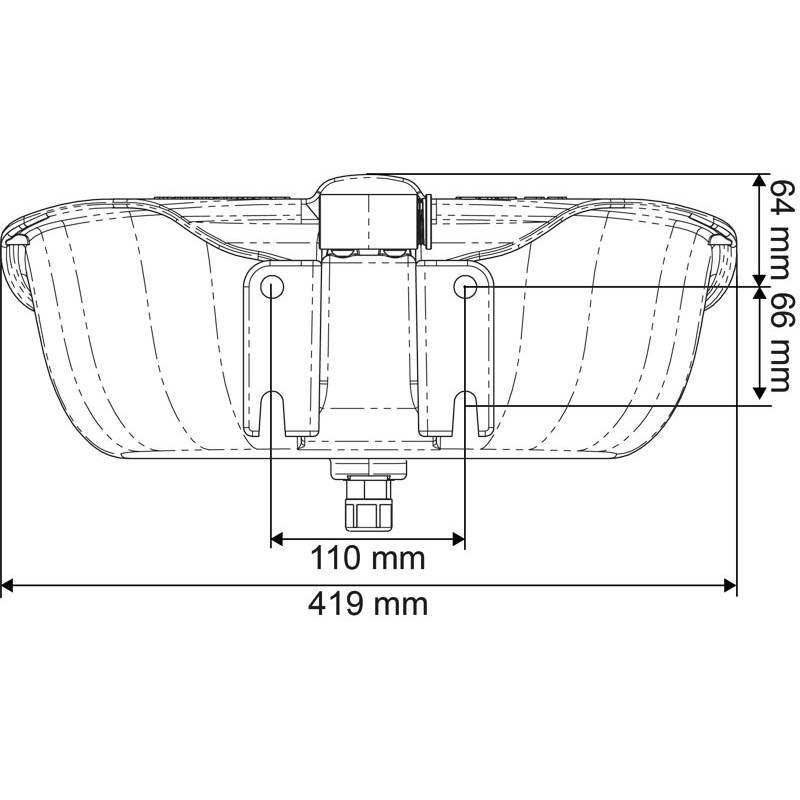

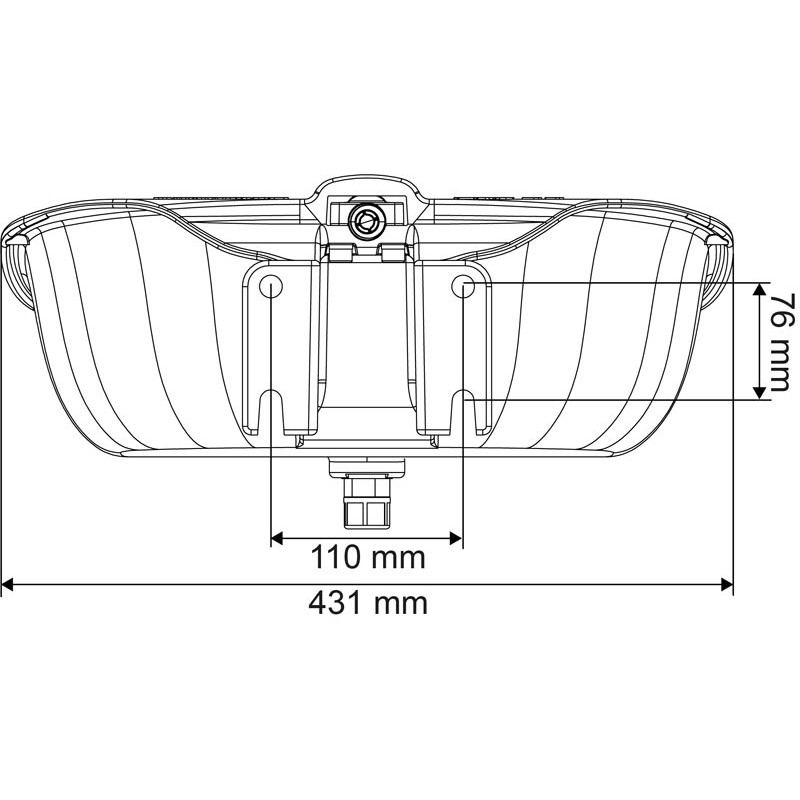

- 1 mounting plate with two openings at the bottom for easy mounting;
- 1 threaded drain through wall plug (Ø 15/21 mm);

Fitted with:
- 1 pilot valve
- 1 Pusher of your choice and interchangeable: tube, horizontal paddle, or vertical paddle
- Bowl finish: Resicoat or enamelled



Material
cast iron

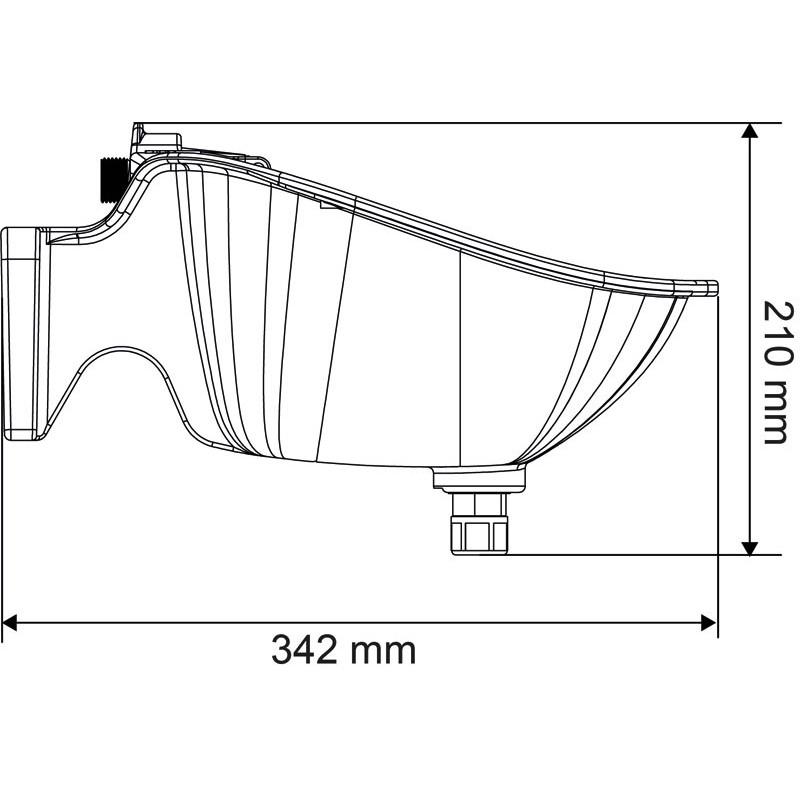

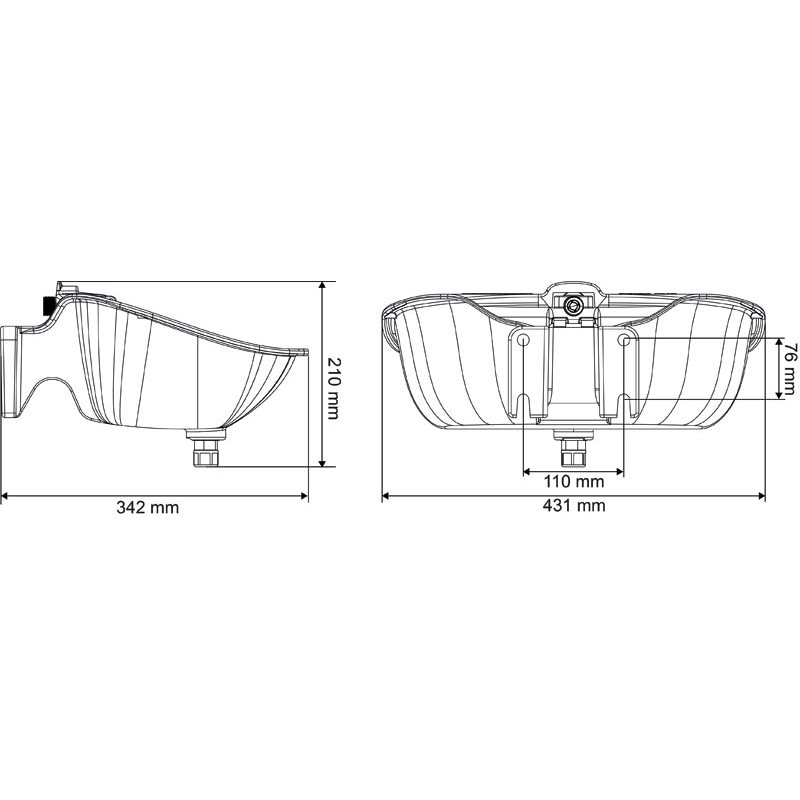

Length
431 mm
Width
342 mm
Height
210 mm
Pressure
network
Drinker
Polydrink PF3 single
System
push-type
Mechanism
horizontal pilot valve
Fastening
wall
Device
heating as an option
Flowrate
1 à 18 l/min
Connection diameter
3/4" (20/27 mm) - female
Packaging
bag
Finish
Resicoat
Pusher
tube
Sales unit
Unit
Drain plug diameter
15/21 mm
