Complete through-wall (15/ 21 mm)

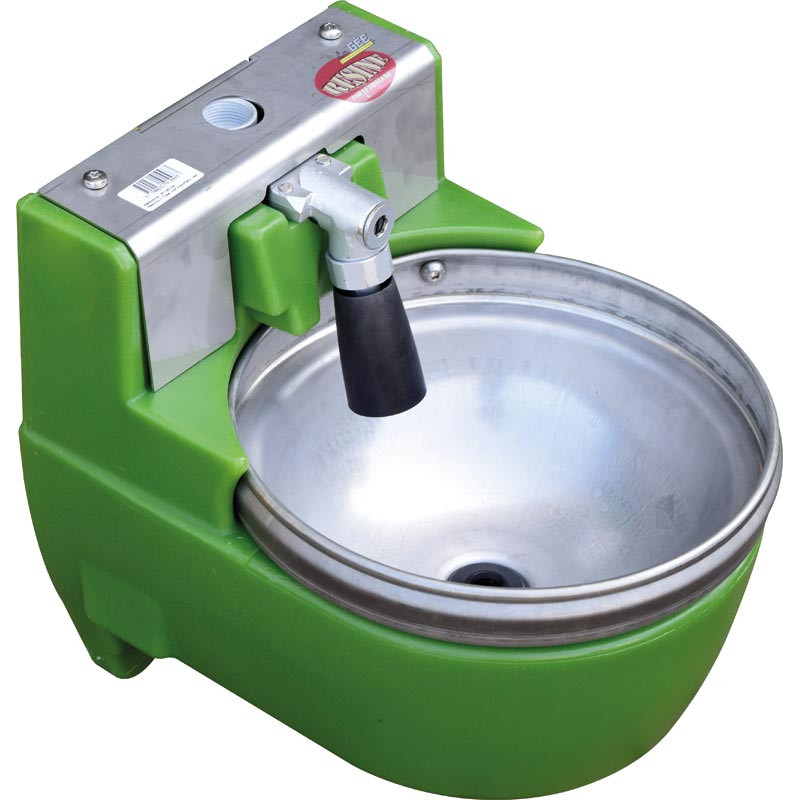

Non-heating RESINOX II drinker
Feature-Benefits :
Easy to clean.
Top or bottom supply.
Top or bottom supply.
Hygiénique, robuste et sécurisant.
Facile à poser sur mur ou sur poteau.
Fitted with:
- 1 horizontal pilot valve
- 1 removable housing allowing easy access to the drinker mechanism.
- 1 3/4" (20/27 mm) T fitting
- 1 1/2" (15/21 mm) drain plug
- top or bottom connection
- 1 3/4 stainless steel tube"
- 1 horizontal pilot valve
- 1 removable housing allowing easy access to the drinker mechanism.
- 1 3/4" (20/27 mm) T fitting
- 1 1/2" (15/21 mm) drain plug
- top or bottom connection
- 1 3/4 stainless steel tube"
- Material
- stainless steel and rotomolded polyethylene resin

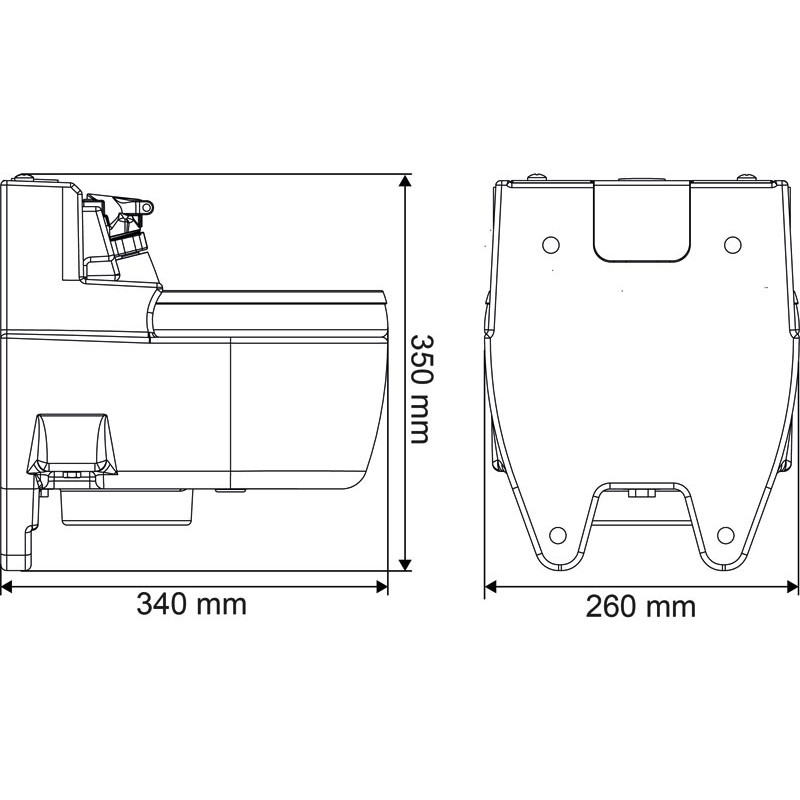

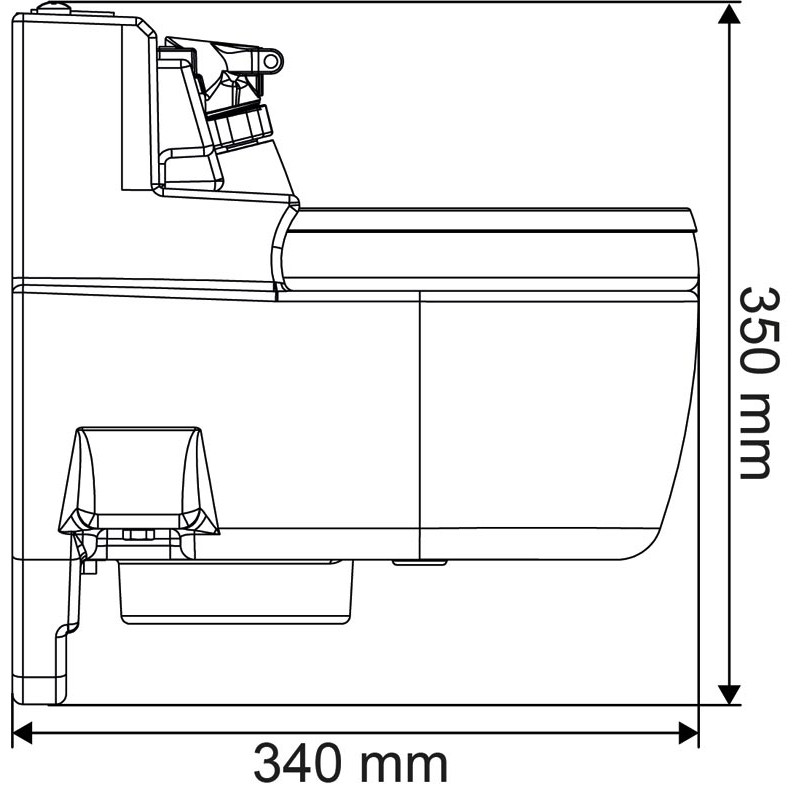

- Length
- 340 mm

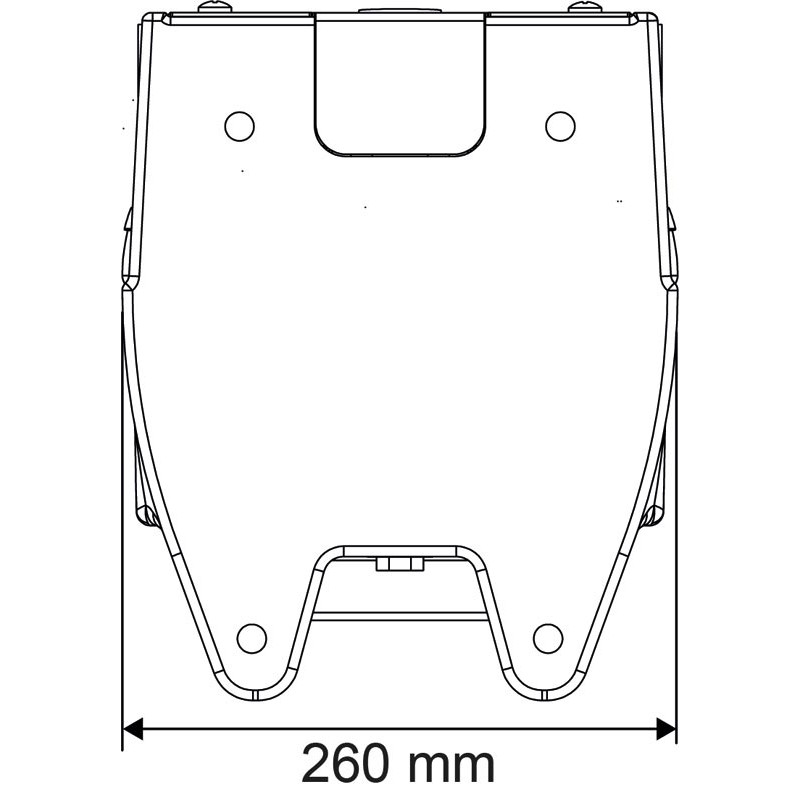

- Width
- 260 mm
- Height
- 350 mm
- Pressure
- network
- Color
- green
- Drinker
- Resinox II
- System
- push-type
- Mechanism
- horizontal pilot valve
- Fastening
- wall
- Device
- non-heating
- Flowrate
- 1 à 18 l/min
- Connection diameter
- 3/4" (20/27 mm) - female
- Packaging
- bag
- Pusher
- tube
- Valve
- stainless steel
- Sales unit
- Unit
- Sales packaging unit
- Packaged in bags.
- Drain plug diameter
- 15/21 mm
