POLYTHERME 2 bowl drinker
Feature-Benefits :
Reliable, multi-purpose, and economical to avoid freezing.
Integrated cleaning system.
Patented opening system.
Integrated cleaning system.
Patented opening system.
Large capacity isothermal drinker designed with a double-wall rotomoulded polyethylene trough insulated with polyurethane foam, an isothermal cover with double seal, and an insulated ball or bowl.
Fitted with:
1 constant level mechanism
- 1 integrated cleaning system (by water junction on a pipe linked to a brass body fitted with a selection valve)

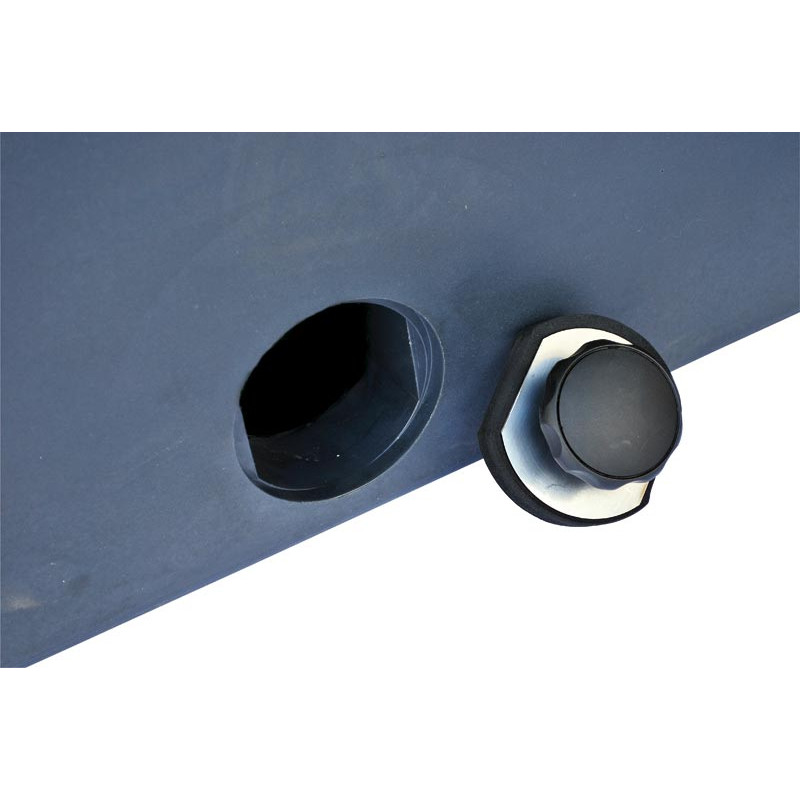

- 1 drain plug (Ø 90 mm).
It keeps the water at a positive temperature down to - 30°C by absorbing the natural calories in the soil and provides cool water in the event of high temperatures.
The patented opening system is based on the tenon-mortice principle at the rear and captive screws at the front.Water is connected directly under the trough pre-fitted with a hydraulic connection pipe or a stainless steel braided hose (large capacity version) protected by an insulating sleeve (included). The lid can be modified at any time by adding an option to convert a "ball" model to a "bowl" model and vice versa.

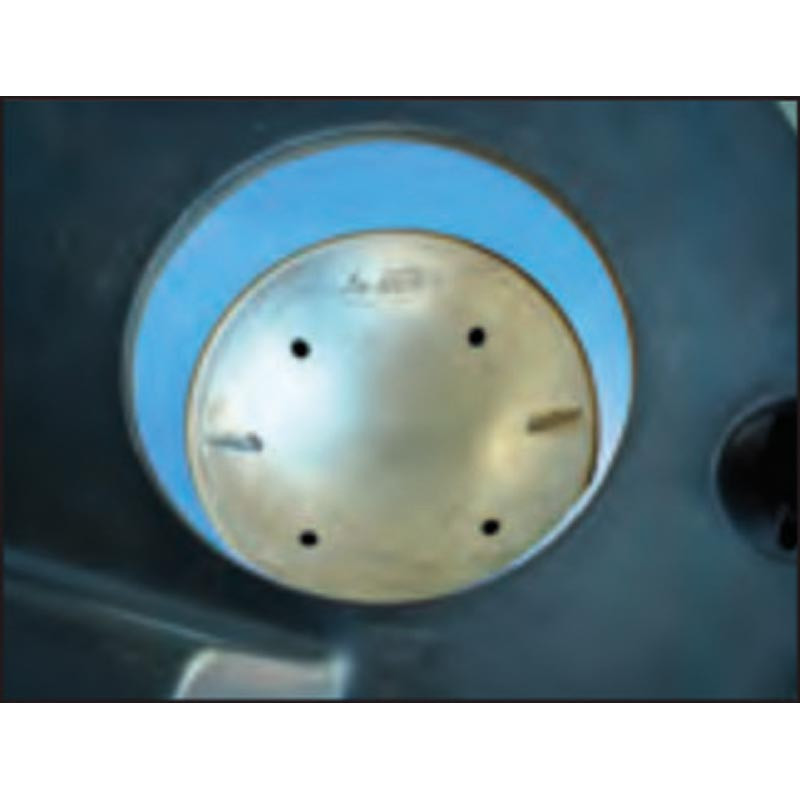

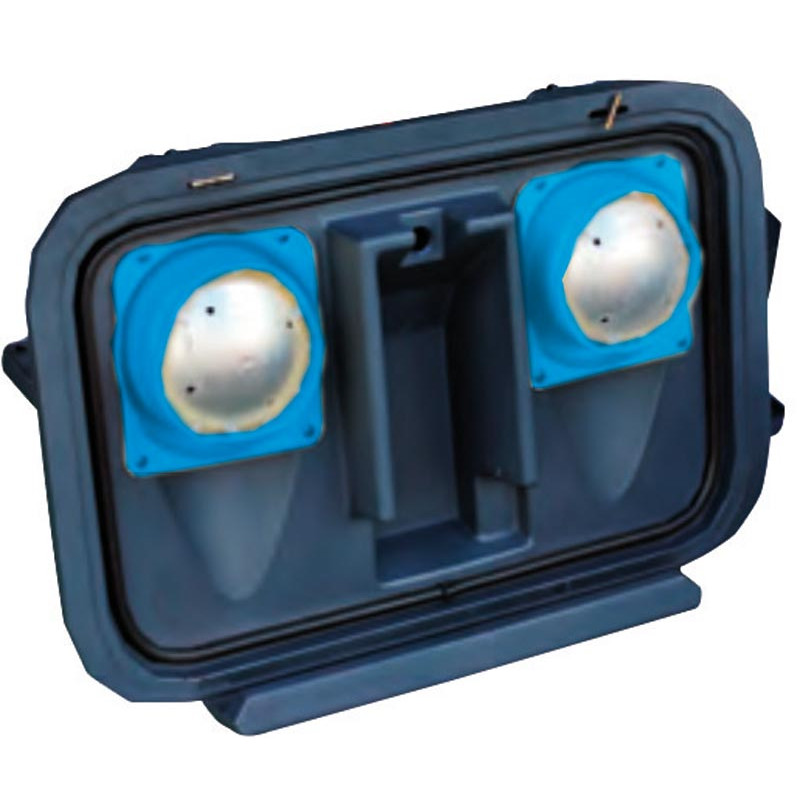

The Polytherme bowl drinker is available with 1 or 2 cast aluminium bowls. It is mounted in a rotomoulded channel fastened under the lid. It is flush with the water contained in the trough and passes through four holes in order to be accessible. The water level is constantly regulated with a La Gée 32 l/mn constant level mechanism with 1/2" connection. The bowl can be removed at any time, with a quarter turn, to clean residue.
Delivered with a ground seal and insulated sleeve to place around the supply pipe.
Fitted with:
1 constant level mechanism
- 1 integrated cleaning system (by water junction on a pipe linked to a brass body fitted with a selection valve)
- 1 drain plug (Ø 90 mm).
It keeps the water at a positive temperature down to - 30°C by absorbing the natural calories in the soil and provides cool water in the event of high temperatures.
The patented opening system is based on the tenon-mortice principle at the rear and captive screws at the front.Water is connected directly under the trough pre-fitted with a hydraulic connection pipe or a stainless steel braided hose (large capacity version) protected by an insulating sleeve (included). The lid can be modified at any time by adding an option to convert a "ball" model to a "bowl" model and vice versa.
The Polytherme bowl drinker is available with 1 or 2 cast aluminium bowls. It is mounted in a rotomoulded channel fastened under the lid. It is flush with the water contained in the trough and passes through four holes in order to be accessible. The water level is constantly regulated with a La Gée 32 l/mn constant level mechanism with 1/2" connection. The bowl can be removed at any time, with a quarter turn, to clean residue.
Delivered with a ground seal and insulated sleeve to place around the supply pipe.

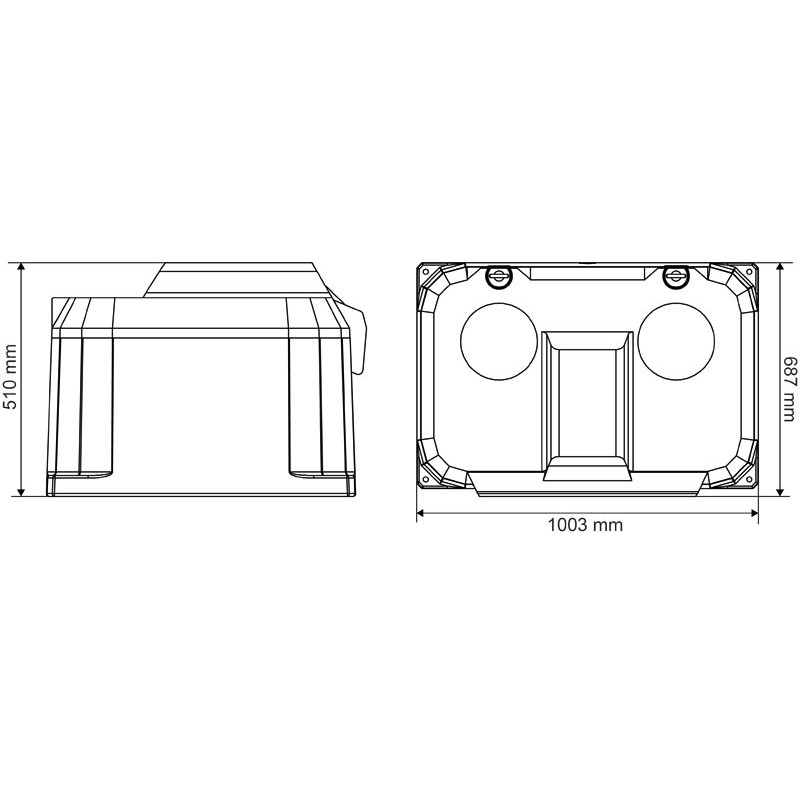

- Material
- rotomolded polyethylene resin

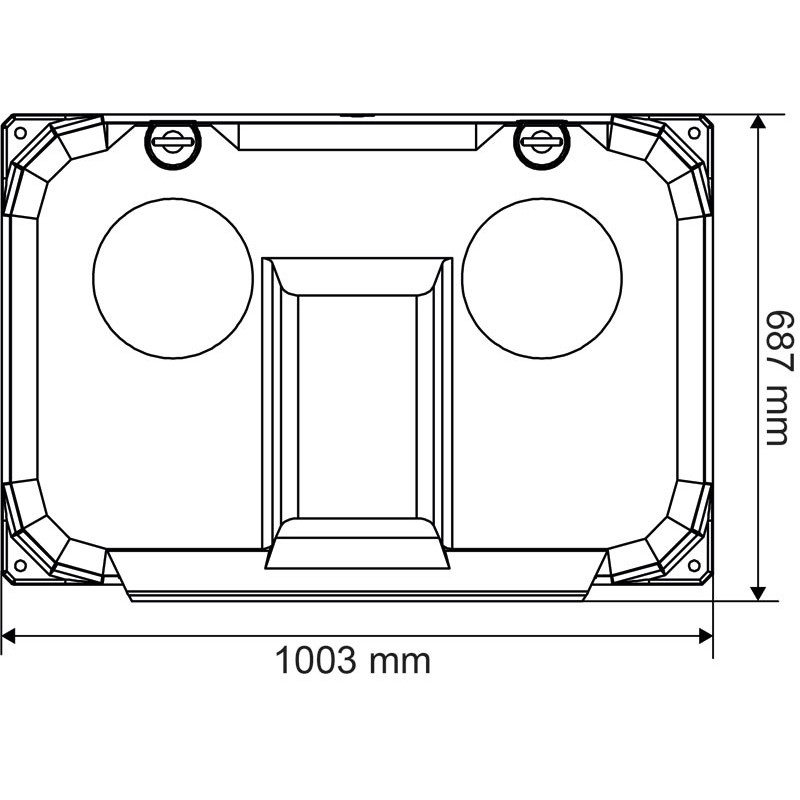

- Length
- 1003 mm
- Width
- 687 mm

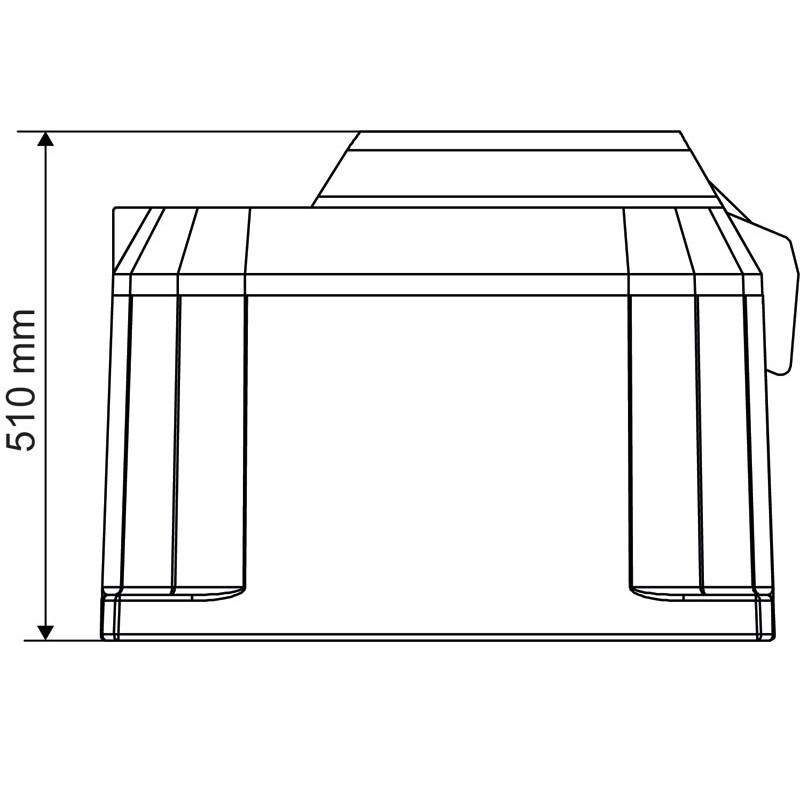

- Height
- 510 mm
- Capacity
- 75 l
- Model
- 2 bowls
- Pressure
- network
- Drinker
- Polytherme with bowls
- System
- constant level
- Mechanism
- float valve tap
- Fastening
- ground
- Device
- isotherm
- Connection diameter
- 1/2" (15/21 mm) - female
- Packaging
- boxed
- Flow rate
- 1 to 32 l/min
- Sales unit
- Unit
- Float valve
- Pressure network en polyamide blanc (P1138310)
