Heating POLYMAX drinker
Fitted with:
- 1 pilot valve with 1 3/4" female output supply protected at the rear. Filter can be cleaned without disassembling the device;
- 1 mounting plate with two openings at the bottom for easy mounting;
- 1 translucent PE plug (Ø 22 mm) for cleaning positioned under the tube pusher and protected by a contour preventing it from being removed by animals;
- 1 pilot valve with 1 3/4" female output supply protected at the rear. Filter can be cleaned without disassembling the device;
- 1 mounting plate with two openings at the bottom for easy mounting;
- 1 translucent PE plug (Ø 22 mm) for cleaning positioned under the tube pusher and protected by a contour preventing it from being removed by animals;

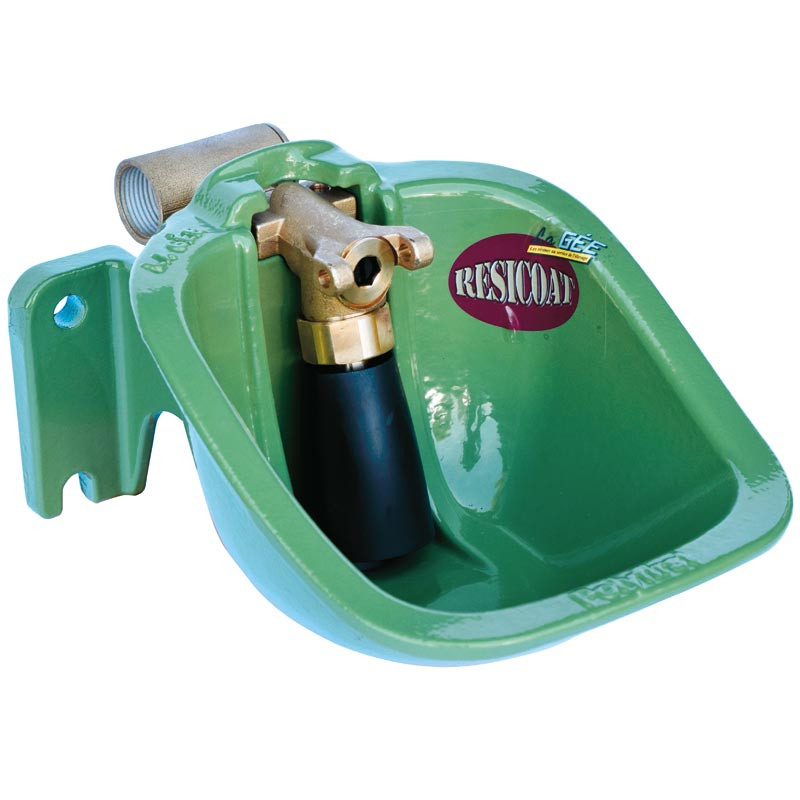

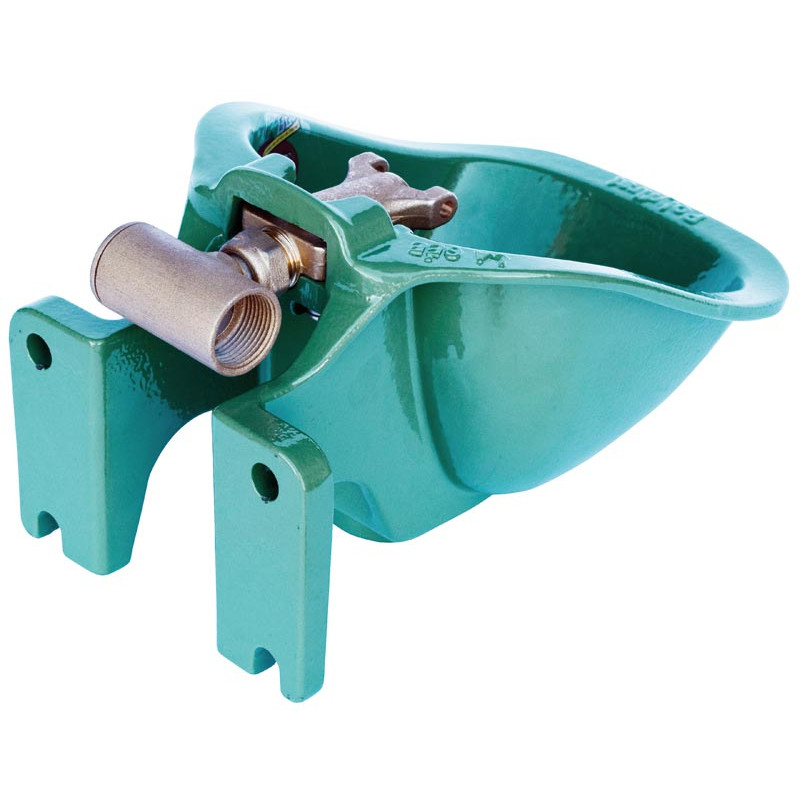

The PF1 POLYFIRST is a small cast iron bowl paddle type drinker suited to the morphology of young animals.

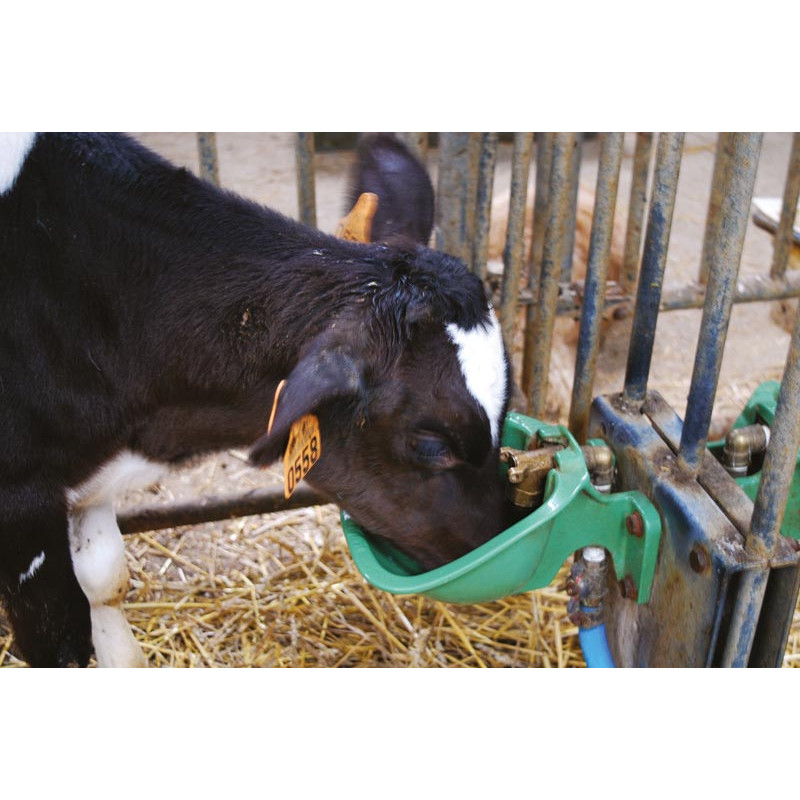

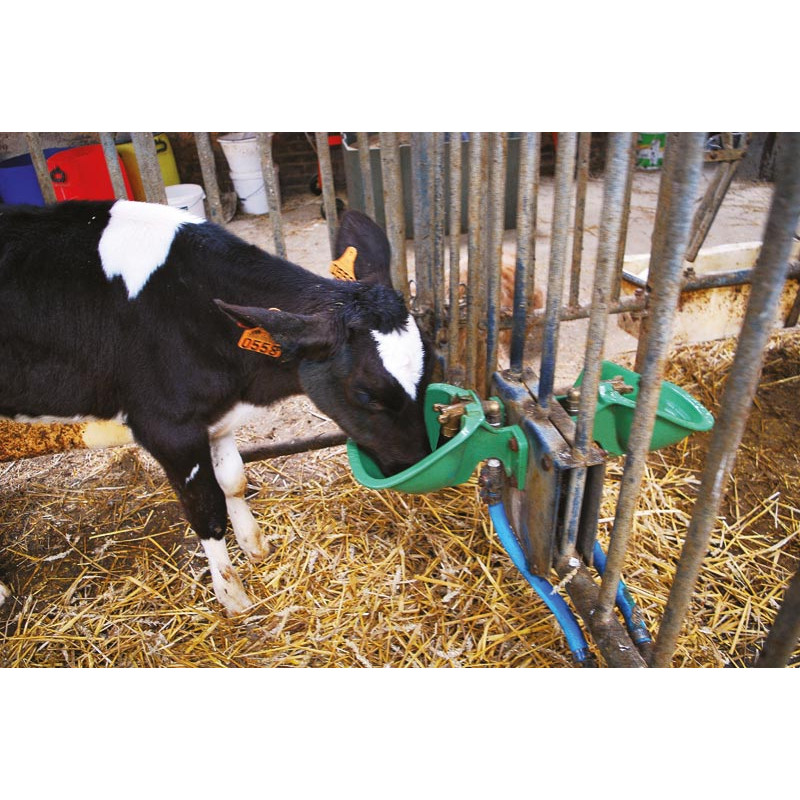

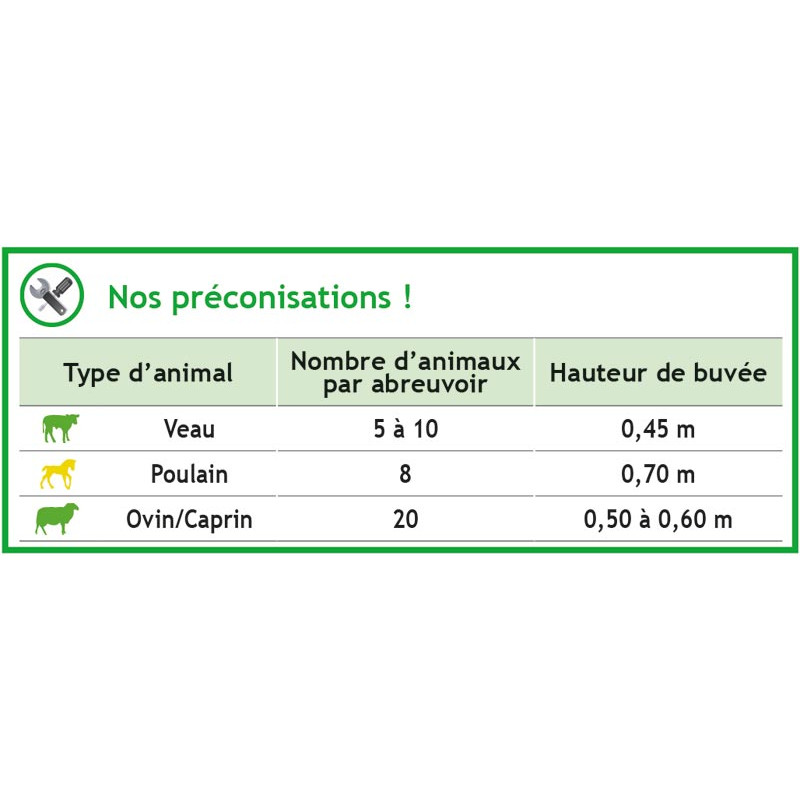

Fitting recommendation: fit in or close to corner from 0.5 m to 0.8 m height depending on the size of the foal.
- Material
- cast iron

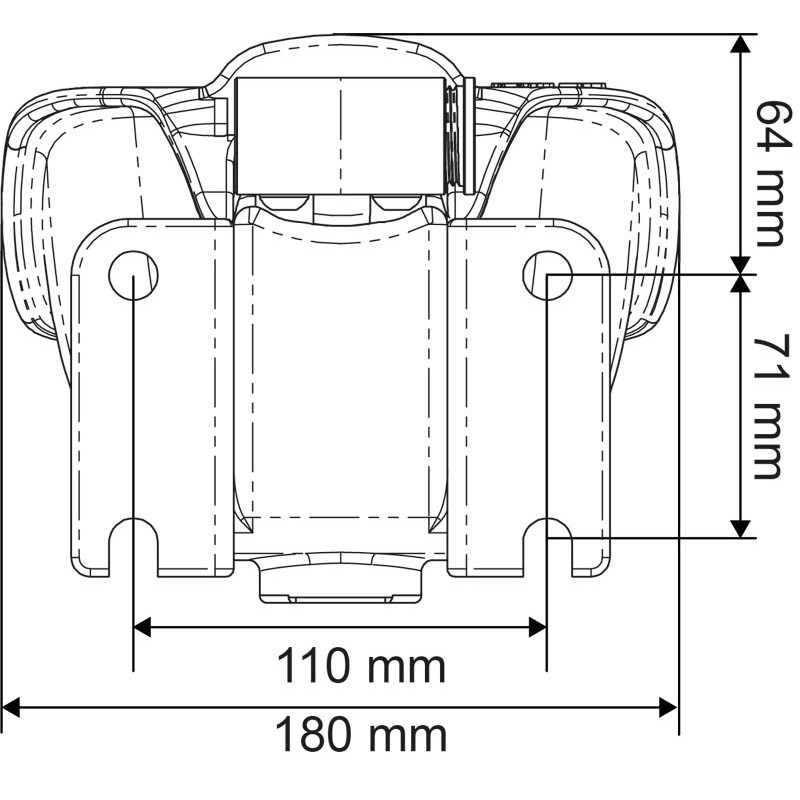

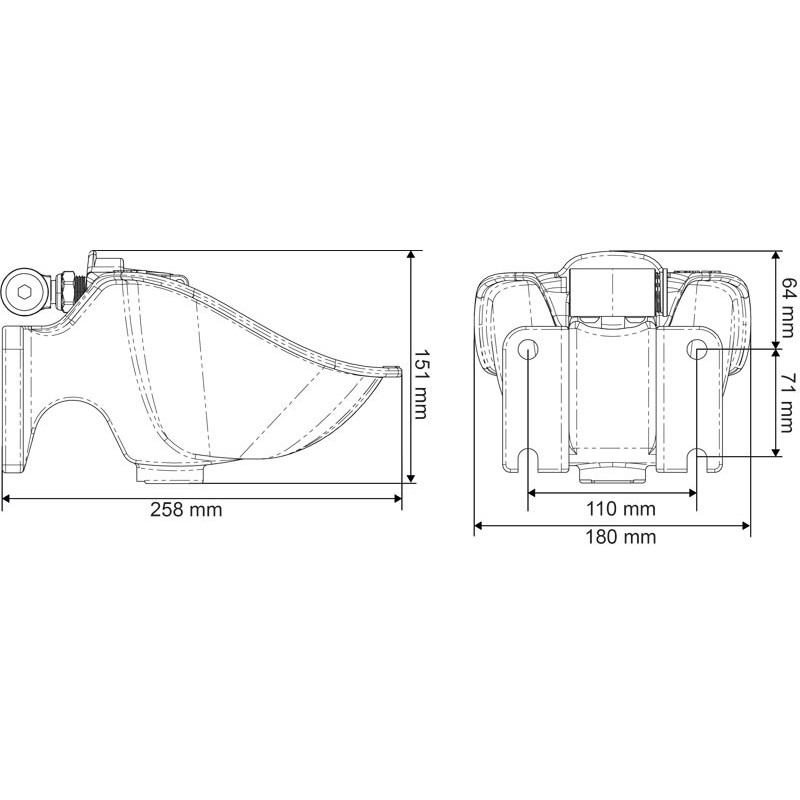

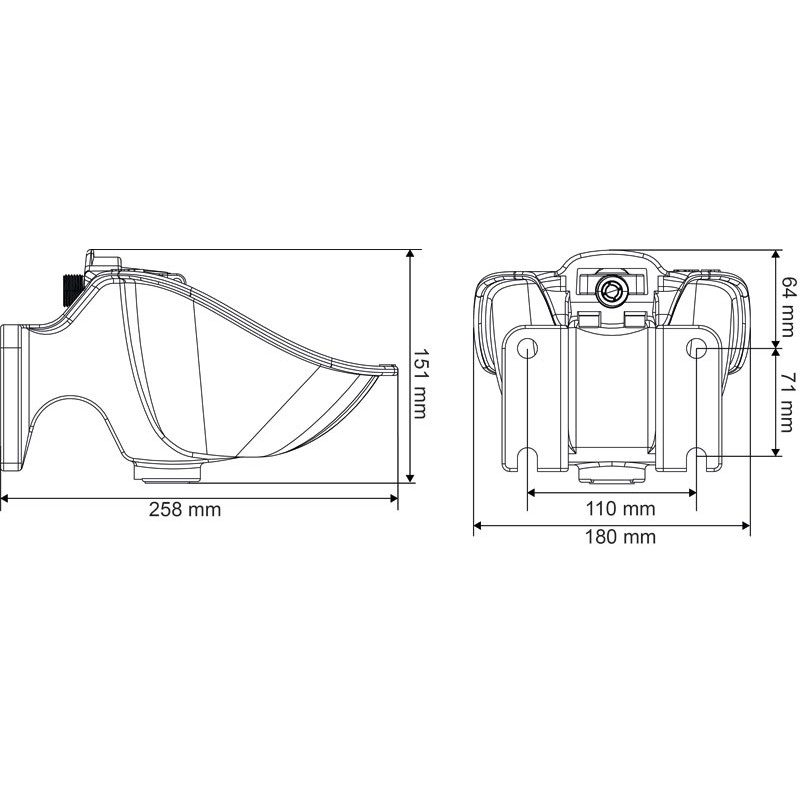

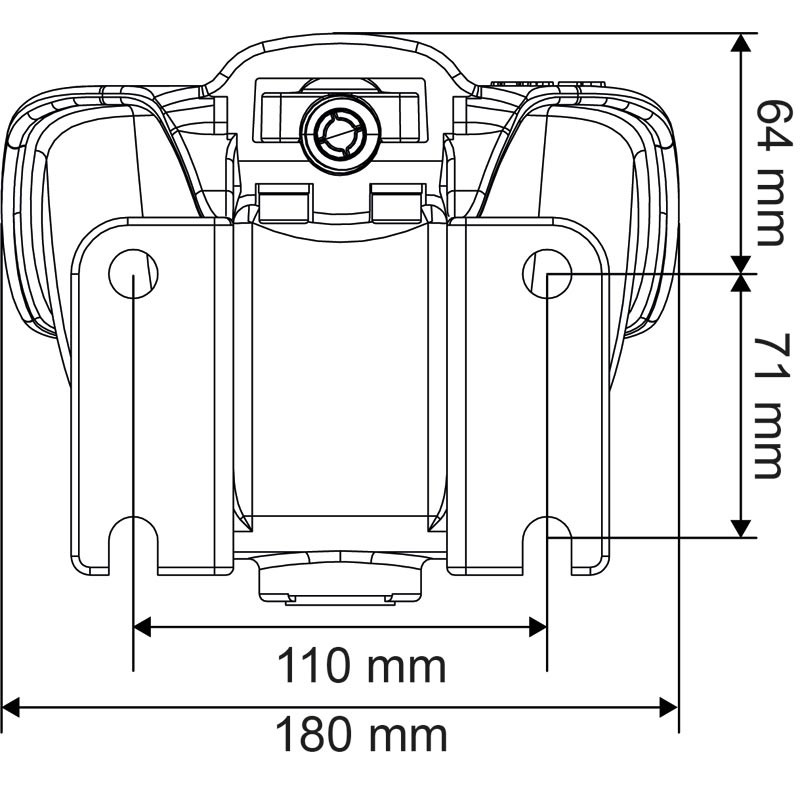

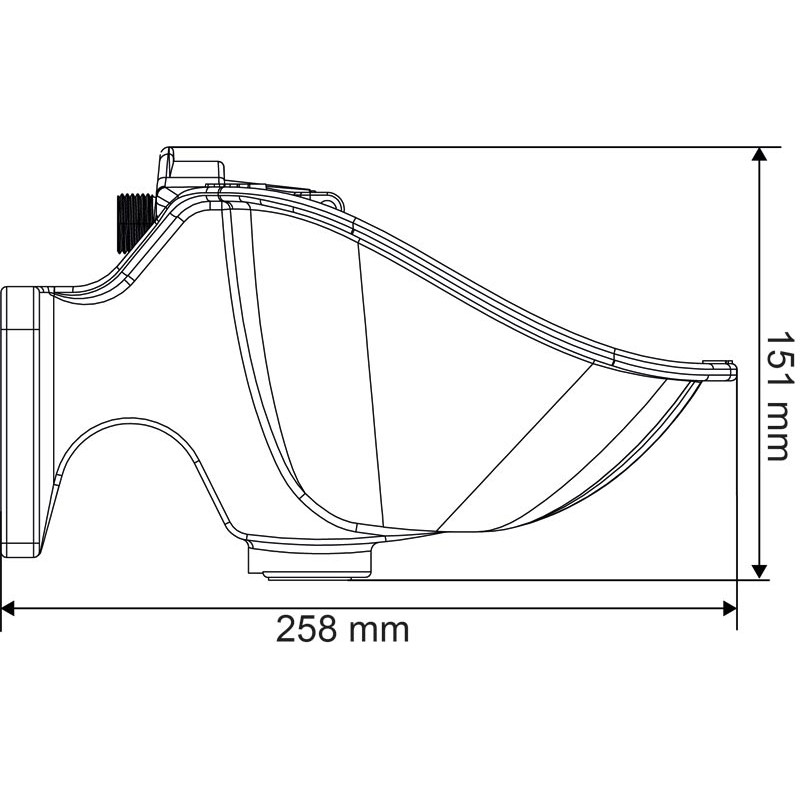

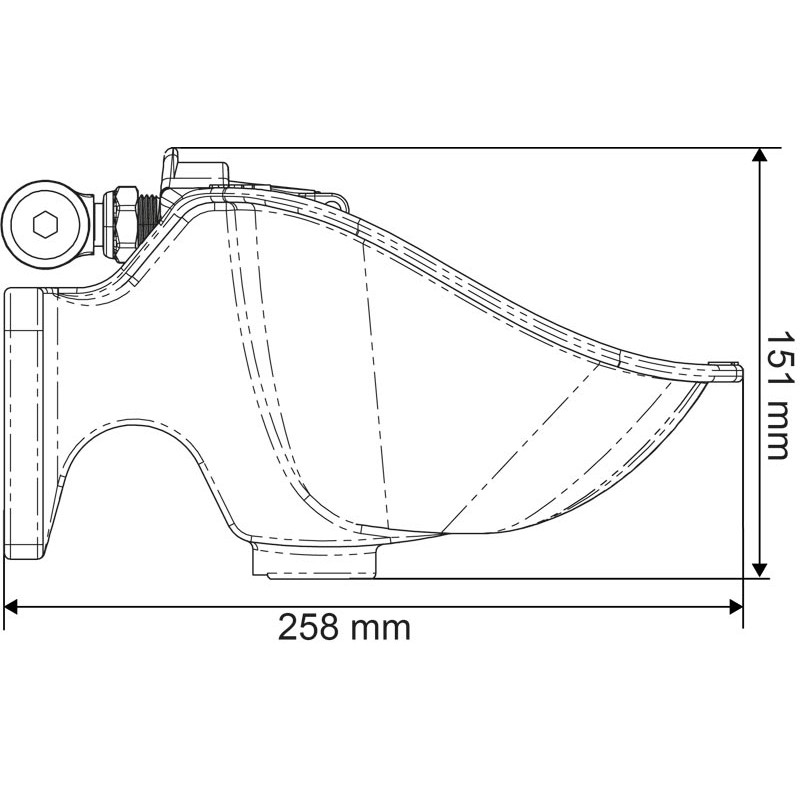

- Length
- 258 mm
- Width
- 180 mm
- Height
- 151 mm
- Pressure
- network
- Drinker
- Polyfirst PF1
- System
- push-type
- Mechanism
- horizontal pilot valve
- Fastening
- wall
- Device
- heating as an option
- Flowrate
- 1 à 18 l/min
- Connection diameter
- 3/4’’ (20/27 mm) - female thread
- Packaging
- bag
- Finish
- Resicoat
- Pusher
- tube
- Valve
- brass
- Sales unit
- Unit
- Sales packaging unit
- Packaged in bags
- Drain plug
- Ø 22 mm
