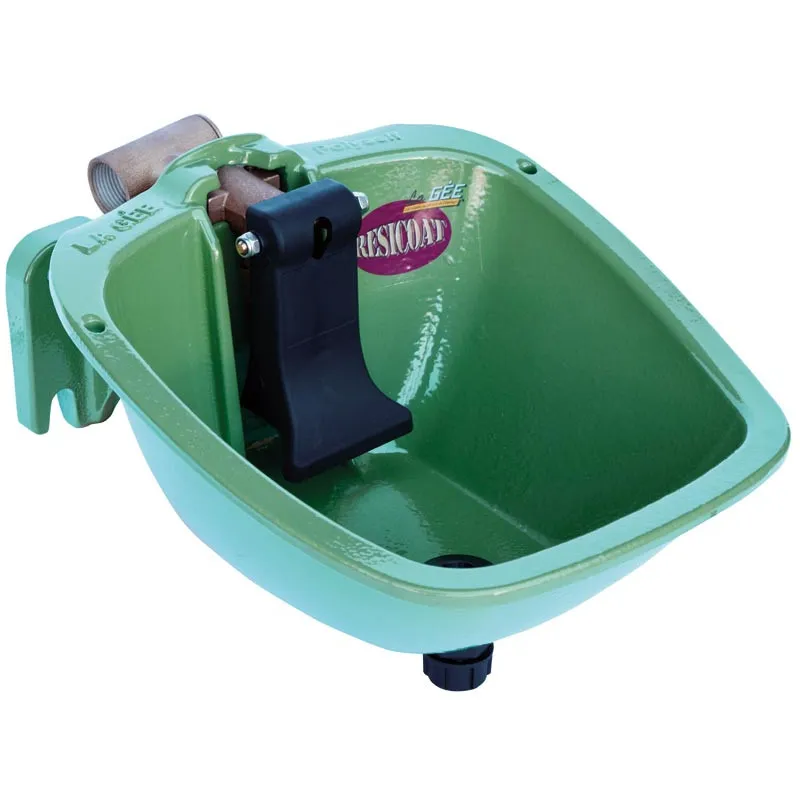

POLYSELF PF2 drinker with vertical paddle

POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
Previous arrow_backward
Next arrow_forward
zoom_in
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
POLYSELF PF2 drinker with vertical paddle
Feature-Benefits :

Simple and economical.
Multi-directional supply.

Bol universel robuste et économique, adapté à tous types de mufles. Idéal utilisé en case.

040_ALIMENTATION_T_360-P1.svg 110_DEBIT_18_L-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

Fitted with:
- 1 pilot valve with a 3/4" female supply outlet protected at the rear. Filter cleaning and flow adjustment at the front without disassembling the mechanism;
- 1 Pusher of your choice and interchangeable: tube, horizontal paddle, or vertical paddle
- 1 mounting plate with two openings at the bottom for easy mounting;
- 1 threaded drain through wall plug (Ø 15/21 mm);
- Bowl finish: Resicoat or enamelled.





Material
cast iron

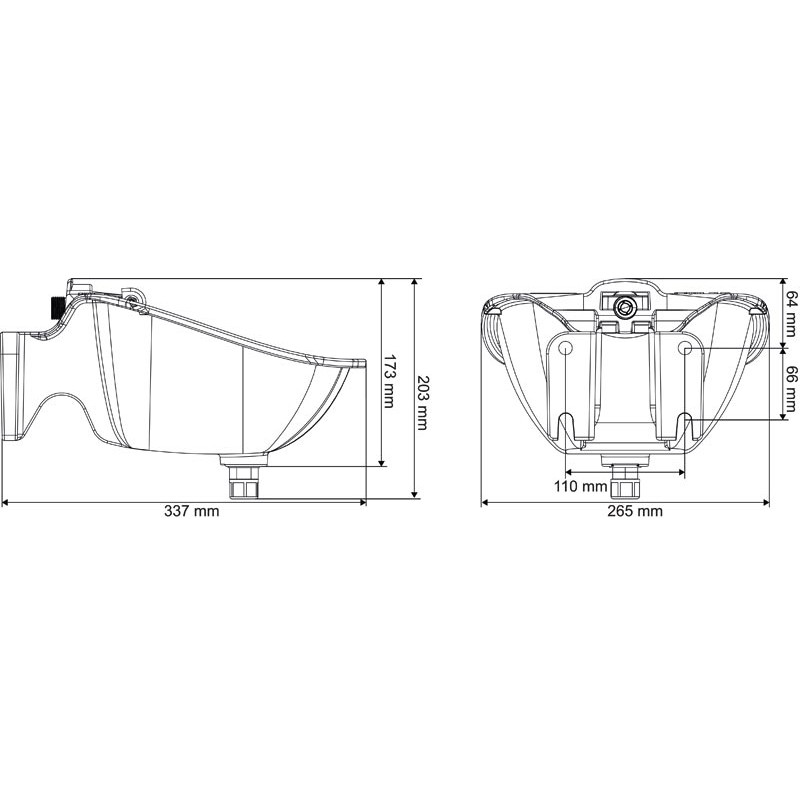

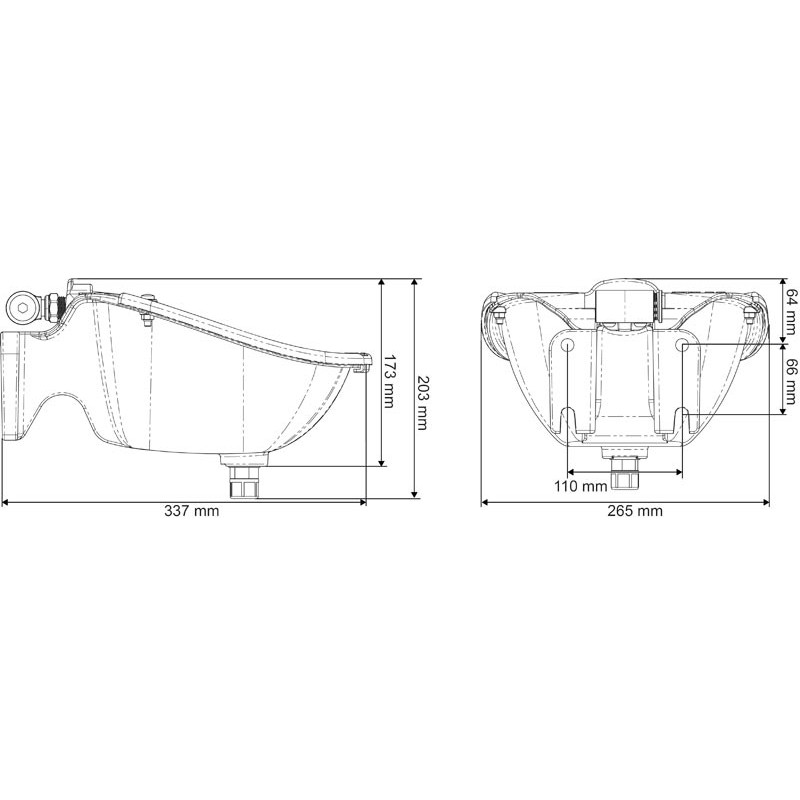

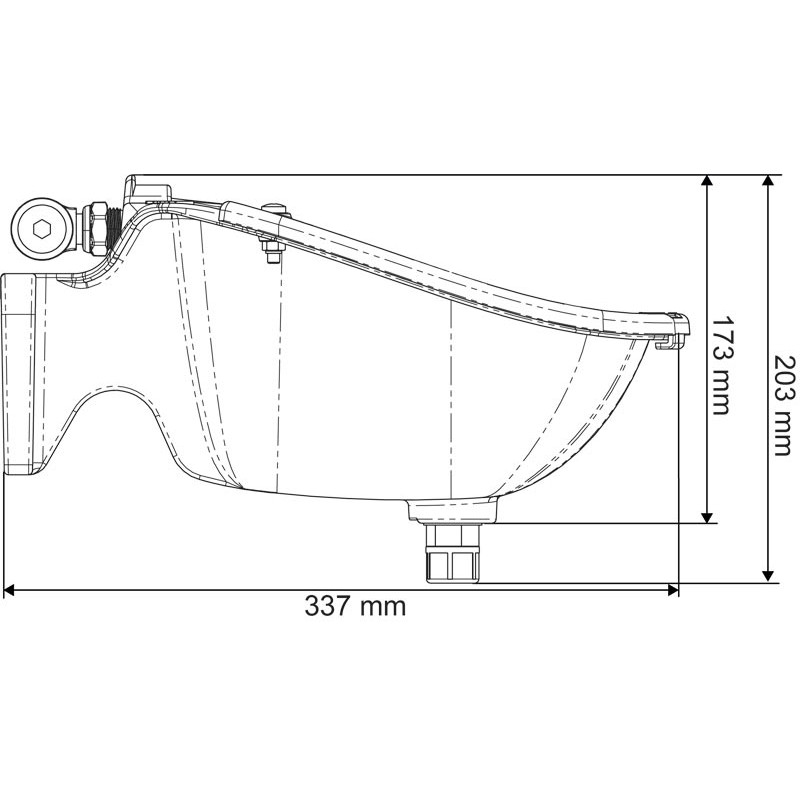

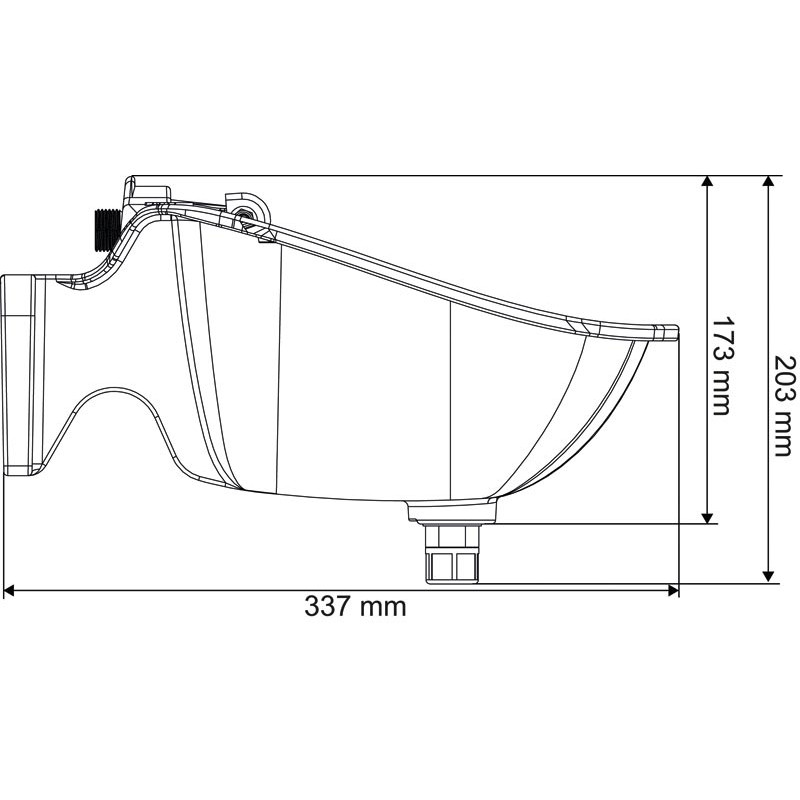

Length
337 mm

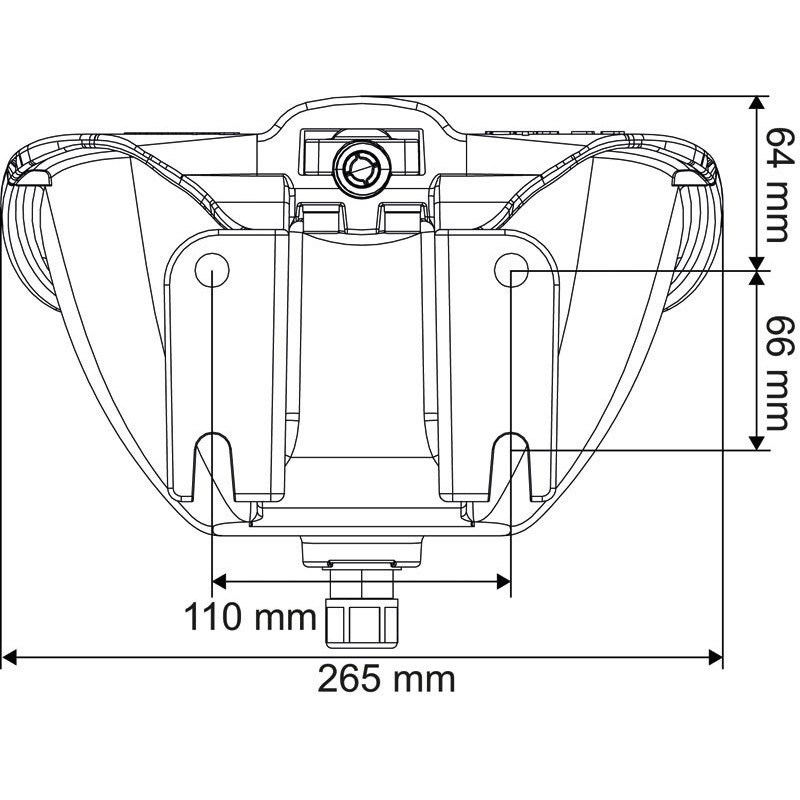

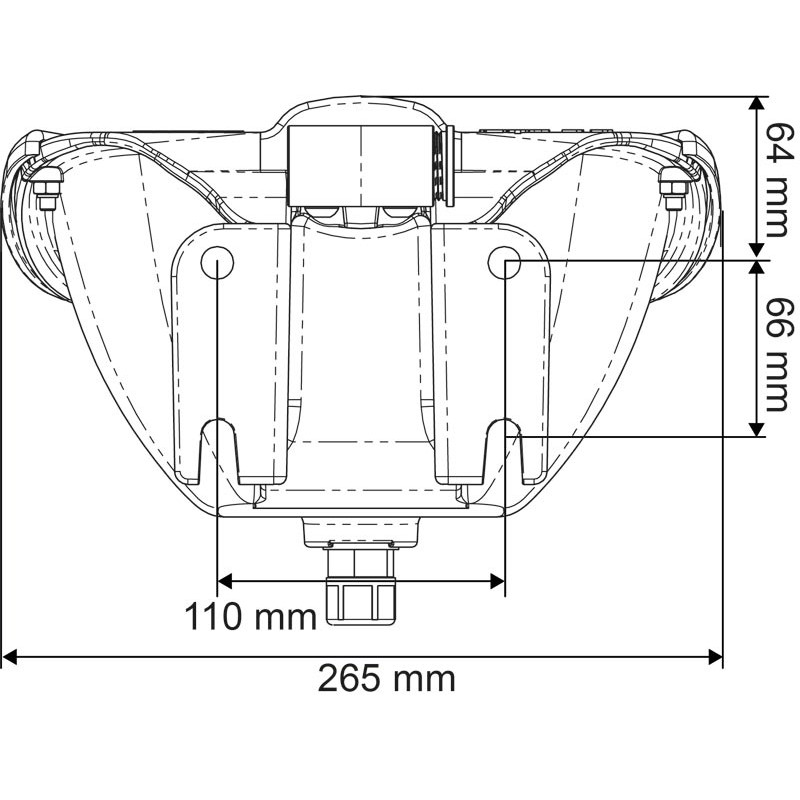

Width
265 mm
Height
203 mm
Pressure
network
Drinker
Polyself PF2
System
push-type
Mechanism
horizontal pilot valve
Fastening
wall
Device
heating as an option
Flowrate
1 à 18 l/min
Connection diameter
3/4" (20/27 mm) - female
Packaging
bag
Finish
Resicoat
Pusher
Vertical paddle
Valve
brass
Sales unit
Unit
Sales packaging unit
Packaged in bags
