Push-tube for drinkers with pilot valve

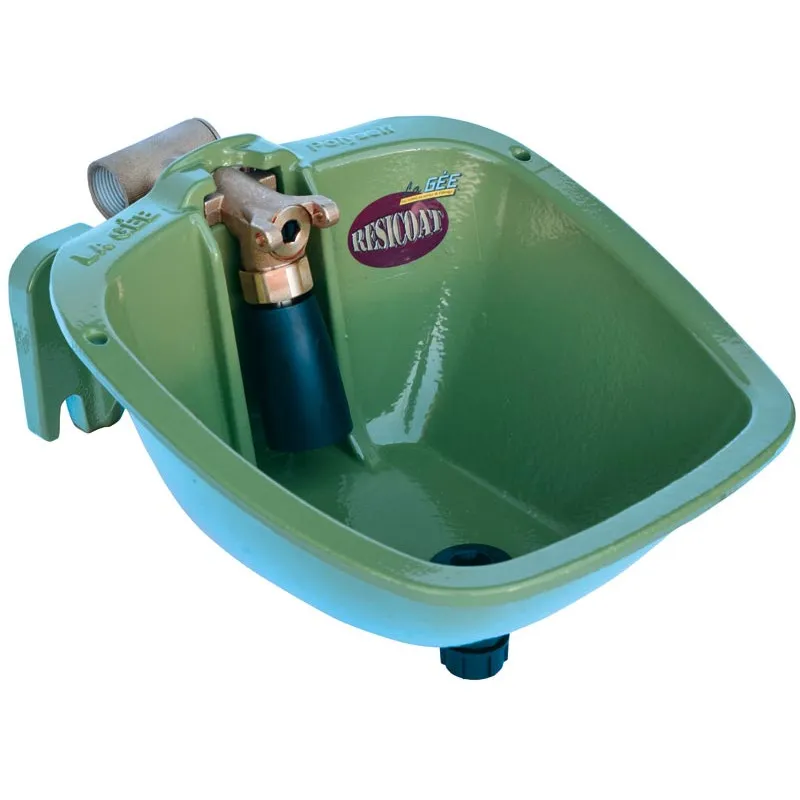

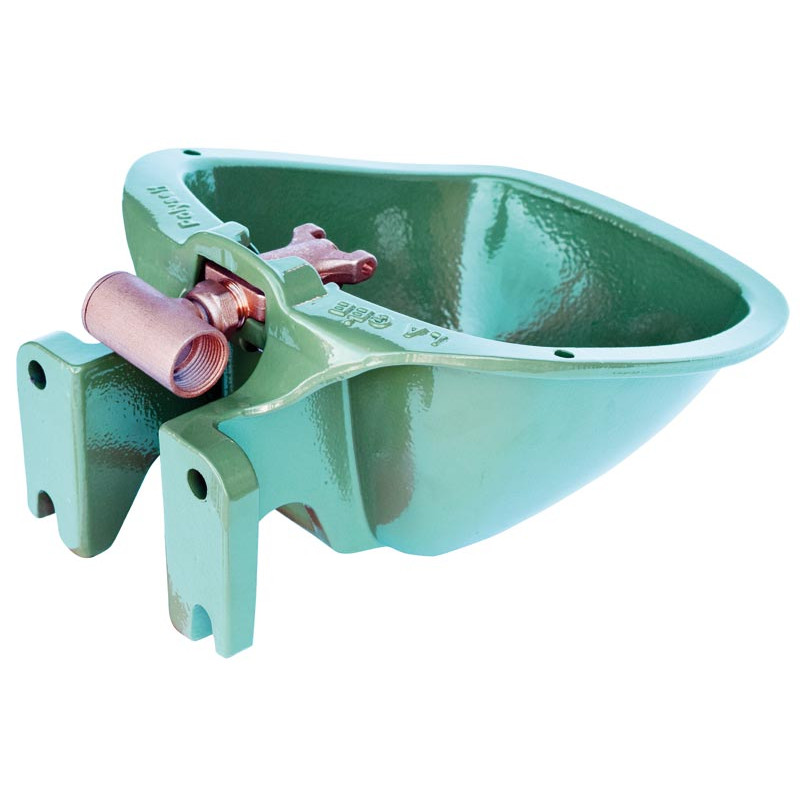

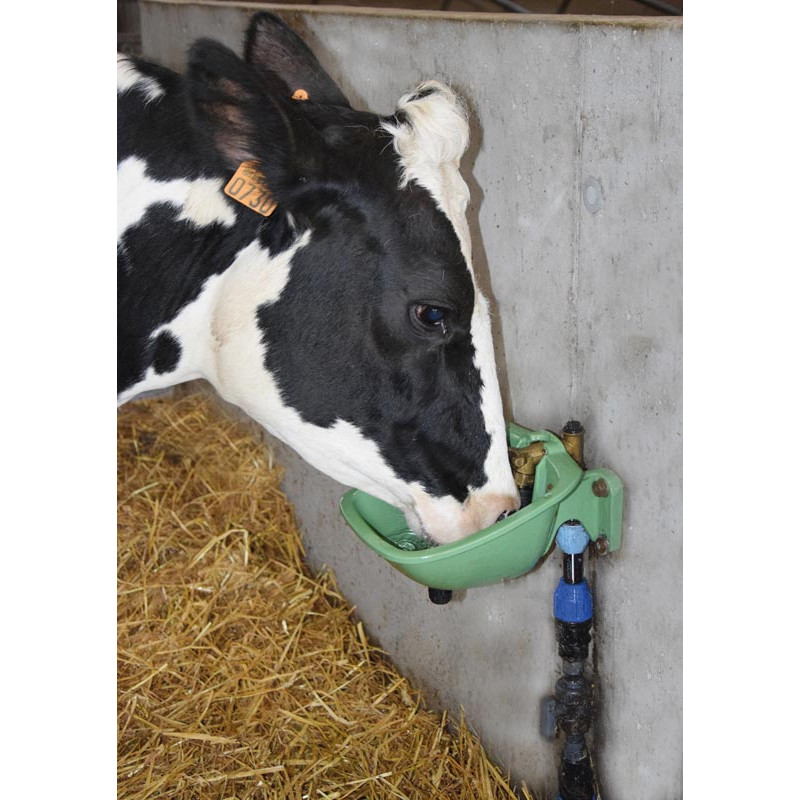

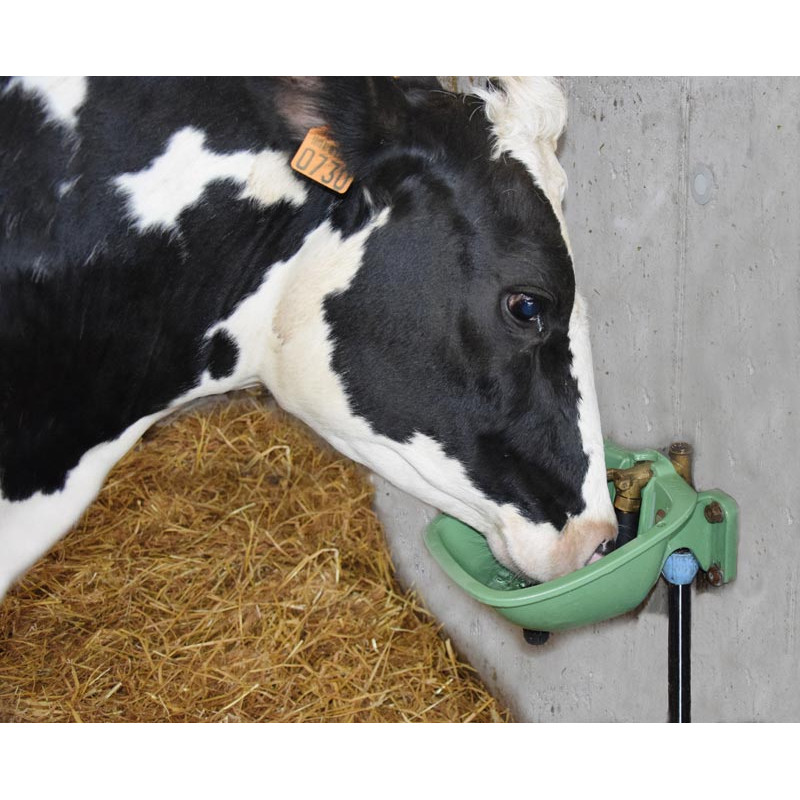

POLYSELF PF2 drinker with tube
Feature-Benefits :
Simple and economical.
Multi-directional supply.
Bol universel robuste et économique, adapté à tous types de mufles. Idéal utilisé en case.
Fitted with:
- 1 pilot valve with a 3/4" female supply outlet protected at the rear. Filter cleaning and flow adjustment at the front without disassembling the mechanism;
- 1 Pusher of your choice and interchangeable: tube, horizontal paddle, or vertical paddle
- 1 mounting plate with two openings at the bottom for easy mounting;
- 1 threaded drain through wall plug (Ø 15/21 mm);
- Bowl finish: Resicoat or enamelled.
- Material
- cast iron

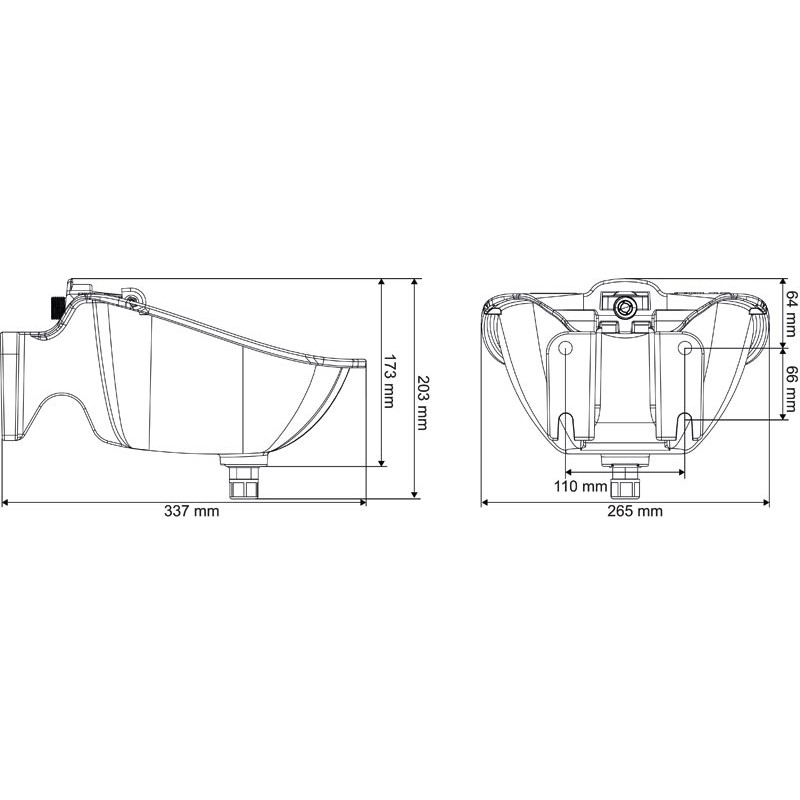

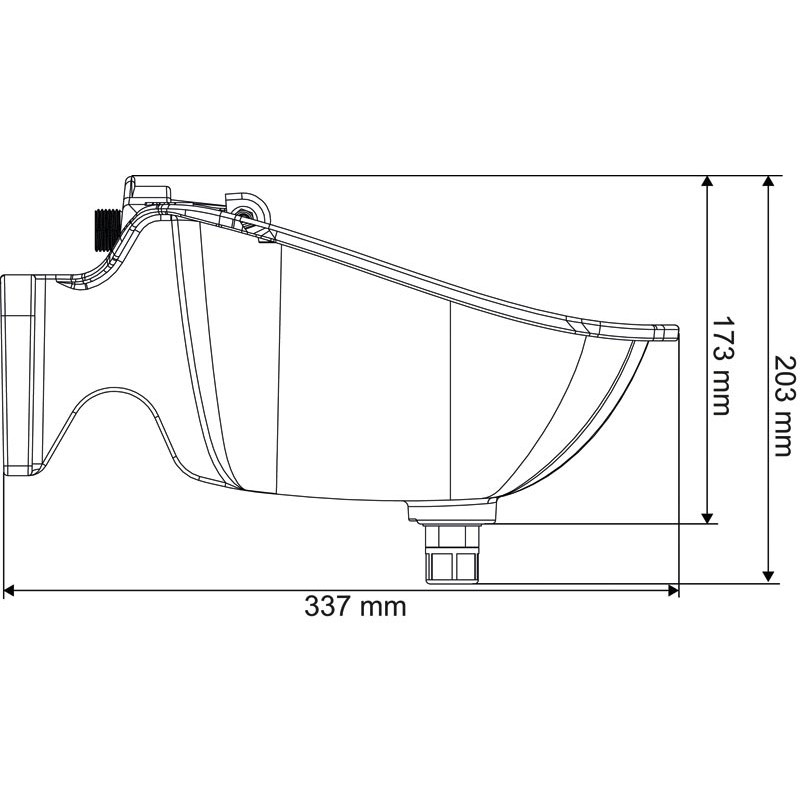

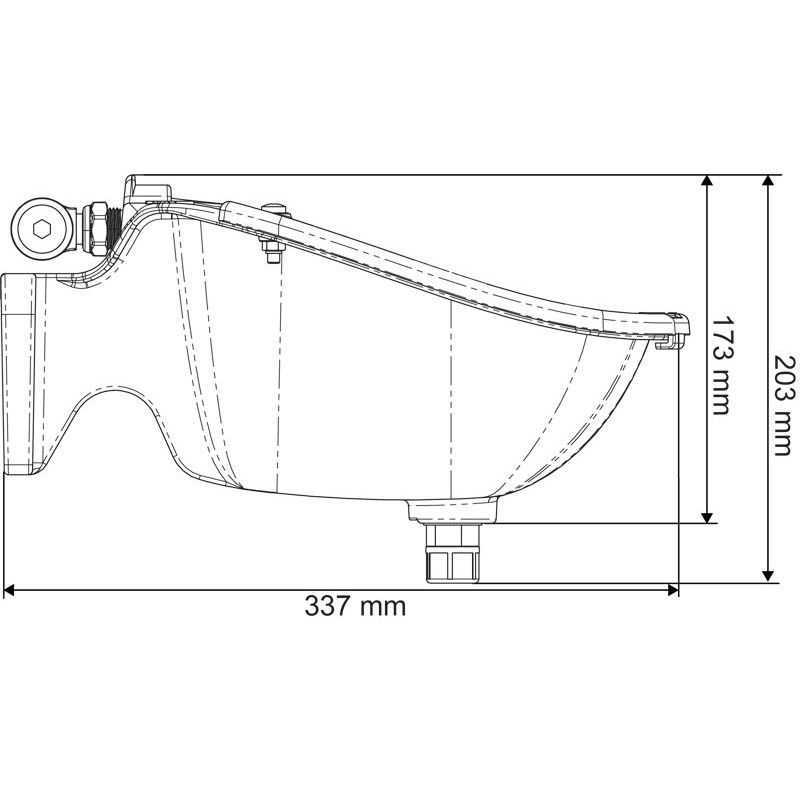

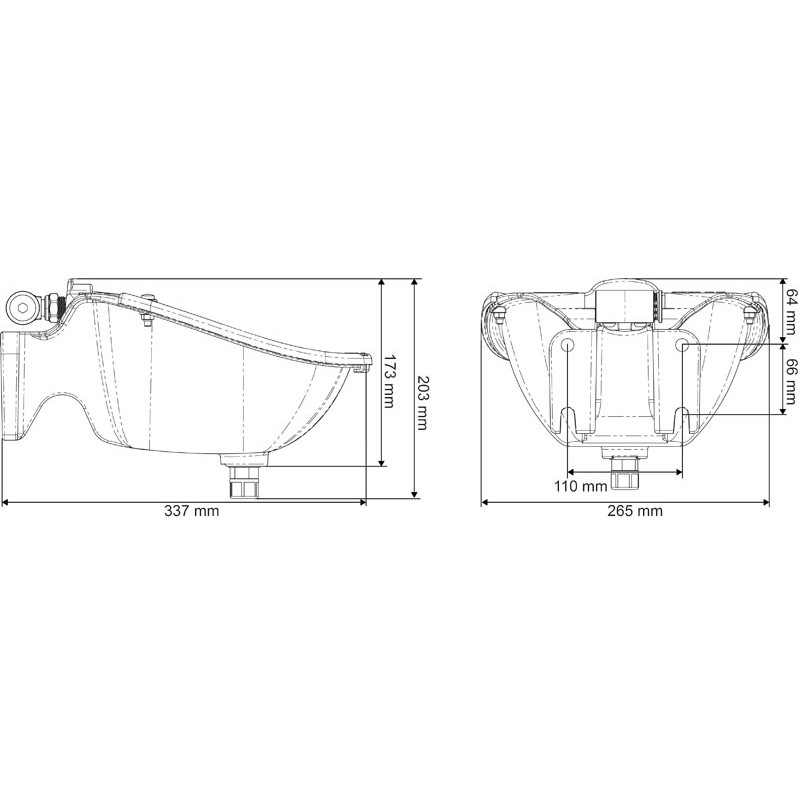

- Length
- 337 mm

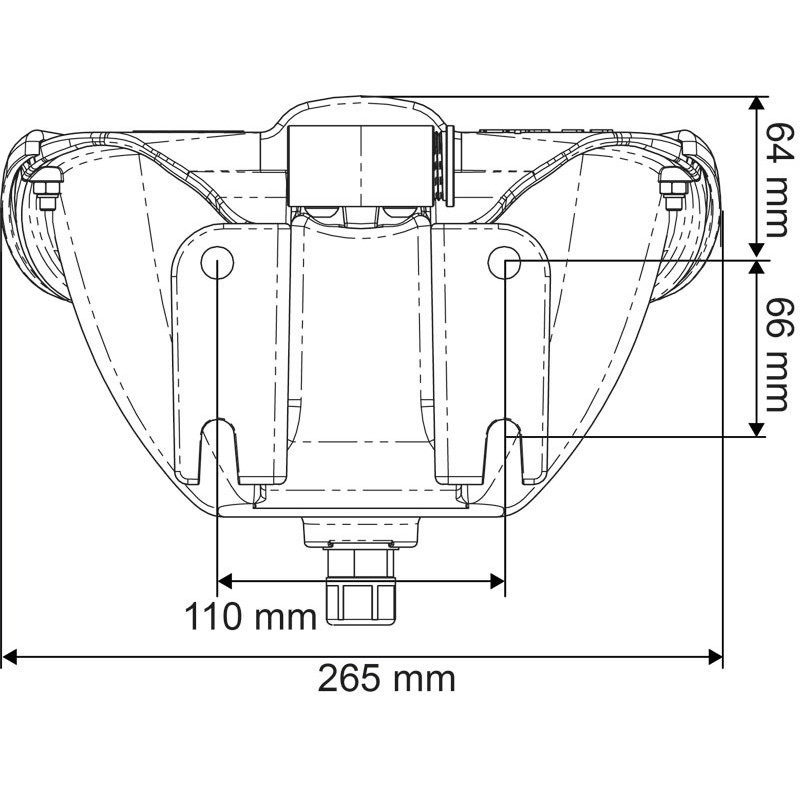

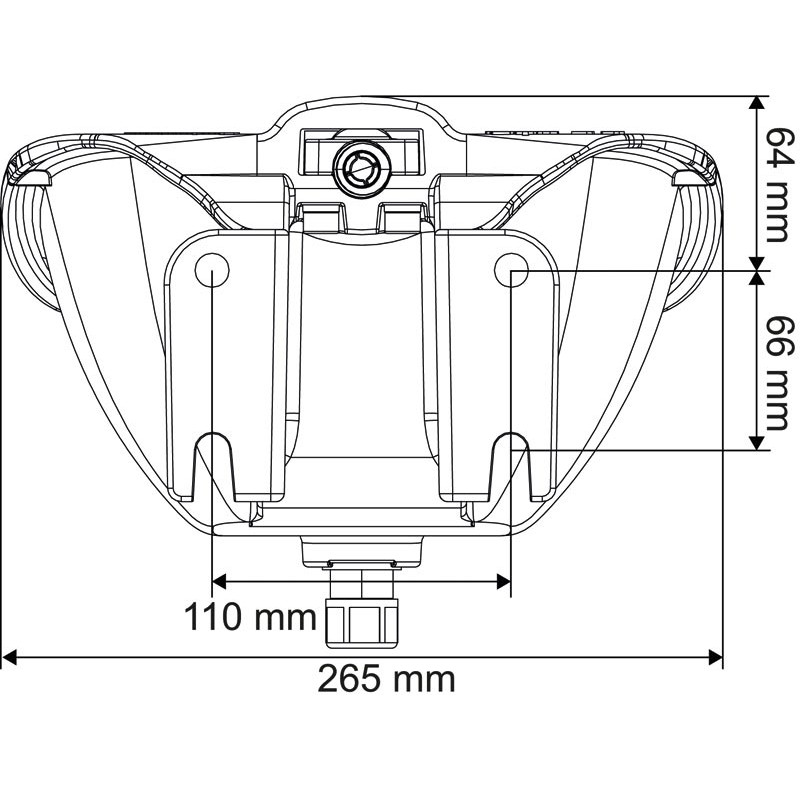

- Width
- 265 mm
- Height
- 203 mm
- Pressure
- network
- Drinker
- Polyself PF2
- System
- push-type
- Mechanism
- horizontal pilot valve
- Fastening
- wall
- Device
- heating as an option
- Flowrate
- 1 à 18 l/min
- Connection diameter
- 3/4" (20/27 mm) - female
- Packaging
- bag
- Finish
- Resicoat
- Pusher
- tube
- Sales unit
- Unit
- Sales packaging unit
- Packaged in bags
