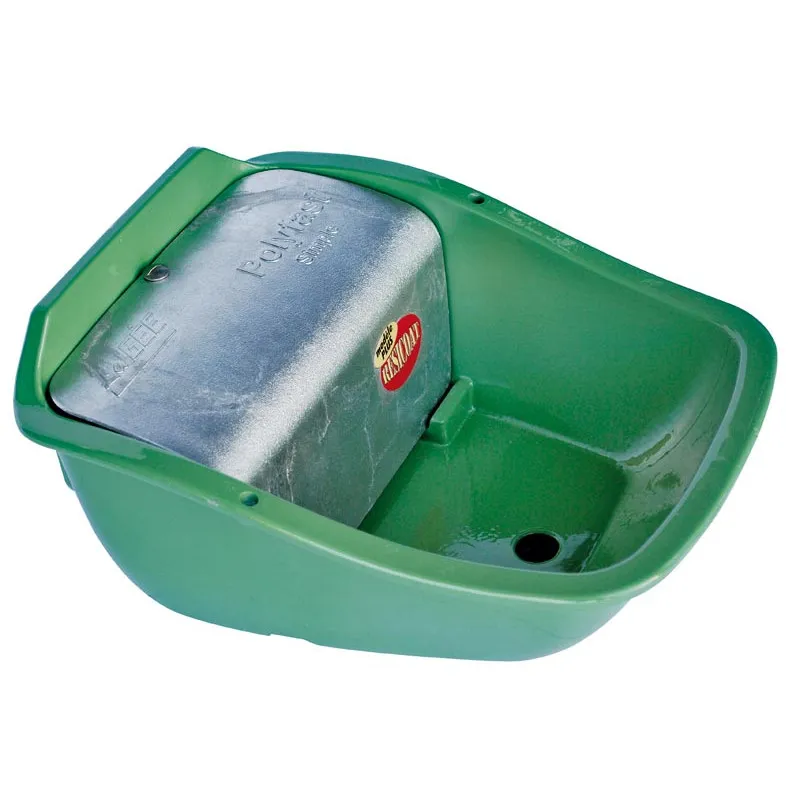

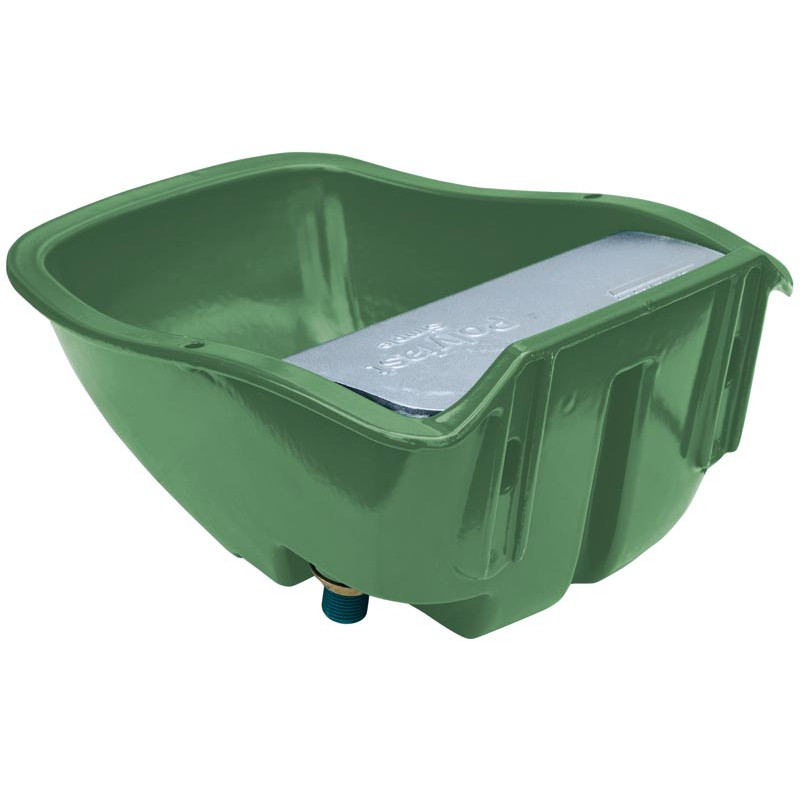

Feature-Benefits : Constant level drinker with a wide cast iron bowl.
Automatically renewed fresh water.
090_DEBIT_15_L-P1.svg 170_PRESSION_3_4_BARS-P1.svg 440_PRODUIT_MAG-P1.svg
> More details

Fitted with a robust mounting plate with two oblong fastenings for easy mounting, they are available in two bowl finishes. Resicoat paint or enamelled for the single model (PF5) and resicoat for the double model (PF6).
Their constant level system is protected by a high-quality cast aluminium housing. They employ the La Gée 15 litres/minute green float valve with a water height adjuster screw.
The system includes a water stop system (1/2" male) beneath the bowl. Ideal for a maximum pressure of 3 to 4 bars. The through wall plug (Ø 15/21 mm).
It can be directly supplied by 3/4" tube with an anchoring bracket.
In case of use on a network with higher pressure a pressure limiter and filters will need to be installed upstream.



Material
cast iron

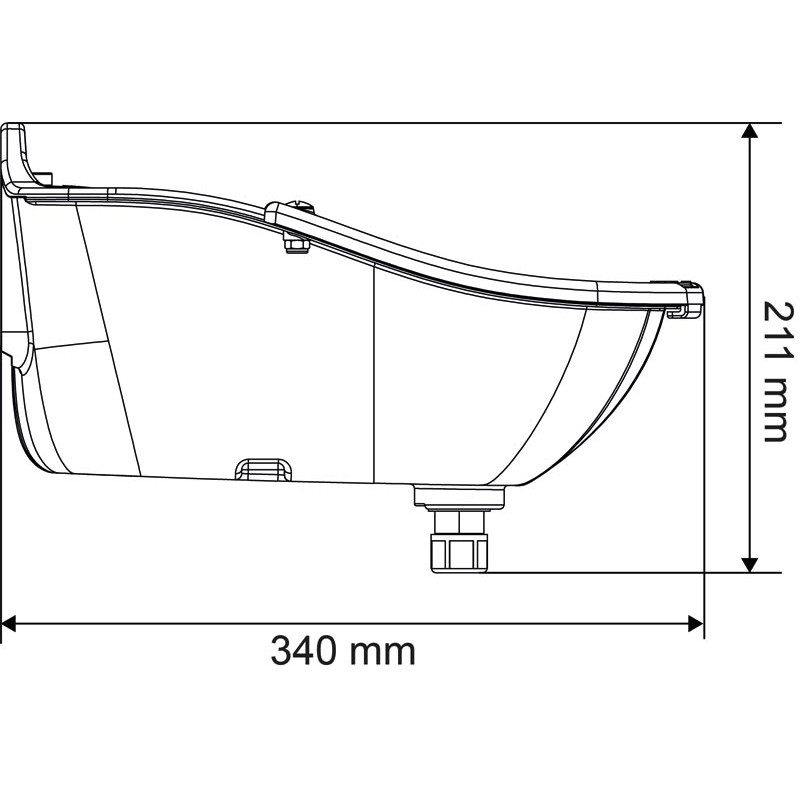

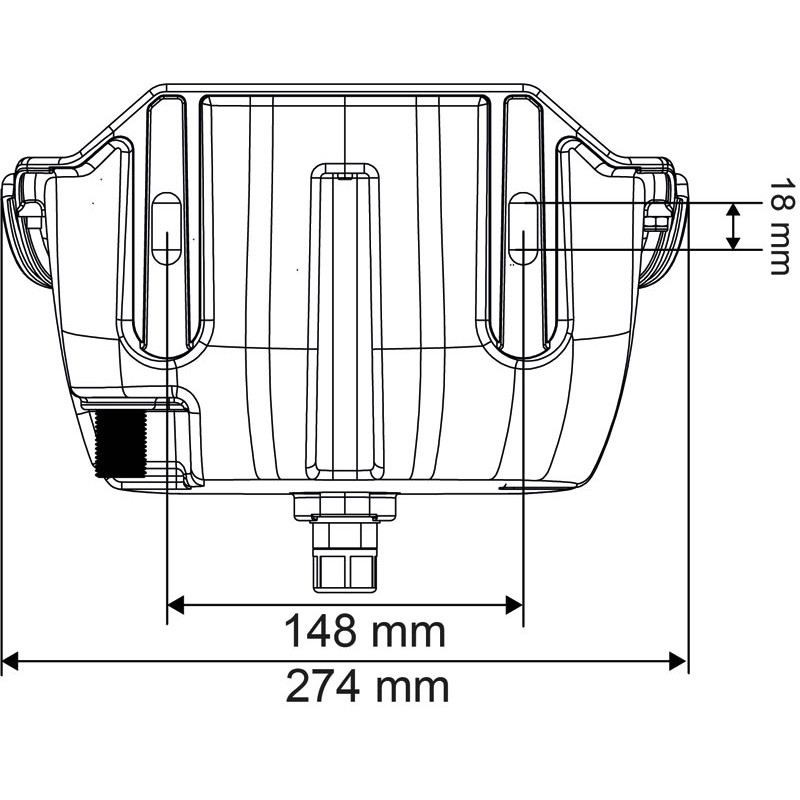

Length
274 mm
Width
340 mm
Height
160 mm
Model
PF5
Pressure
network
Drinker
Polyfast
System
constant level
Mechanism
float valve tap
Fastening
wall
Device
non heating
Flowrate
1 à 15 l/min
Connection diameter
1/2" (15/21 mm) - male
Packaging
bag
Finish
Resicoat
Sales unit
Unit
Sales packaging unit
Packaged in bags.
Float valve
pressure network en polyamide vert (P1138309)
Drain plug diameter
15/21 mm
